Extrusion Motor Perfect for Producing Plastic Packaging and Bottles

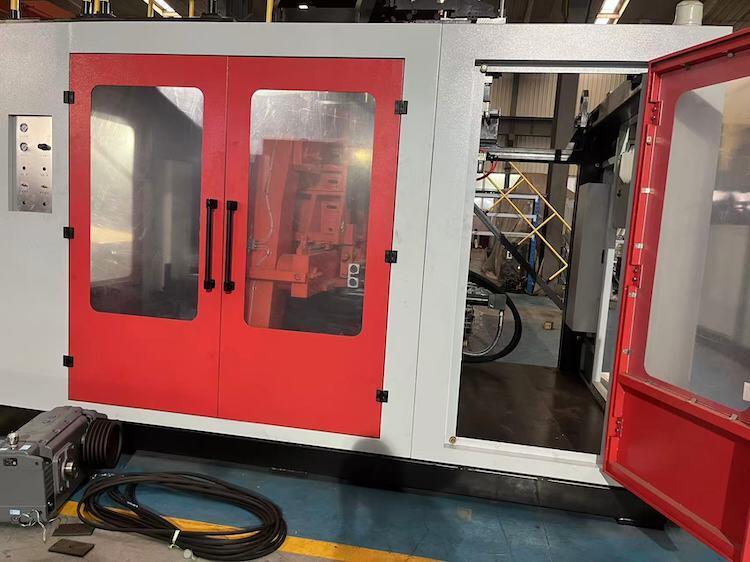

Large Image : Extrusion Motor Perfect for Producing Plastic Packaging and Bottles

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP 100 FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiate
Packaging Details:	Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Water Consumption:	300	Output:	130-160kg/h
Hs Code:	8477301000	Delivery Days:	60 Days
Extrusion Motor:	11kw	Hollow Part Volume:	1-30L
Moldcavity:	1-4 Cavities	Mould Clamping Force:	150kn

Output 130-160kg/h Extrusion Blow Molding Machine

Including 11kW Extrusion Motor - Perfect for Producing Plastic Packaging and Bottles

Product Description

The MP plastic blow molding machine is specifically designed for manufacturing a wide range of plastic hollow products from high molecular materials. It excels in producing various hollow items with capacities ranging from 5 milliliters to 100 liters.

This versatile machine creates numerous products including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive parts. Its adaptability makes it suitable for diverse industrial applications.

The machine supports processing multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring an optimized and efficient molding process that meets high-quality standards.

Key Features

Variable frequency motor for adjustable screw rotation speed during blowing process
High slenderness ratio screws capable of processing wide material variety
Computer-controlled resistance heater for rapid, stable, and even heating
Combined extrusion system for products with clear strip lines or double-layered structures
Toggle mechanism with linear guide and double-station design for faster, steadier operation
Improved hydraulic oil circuit for energy savings and enhanced stability
Computer control system with double proportional hydraulic control
Data memory for up to 40 sets of moulds
Three operation modes: Manual, Semi-Automatic, and Full Automatic
Electric and mechanical safety devices on safety door
Two blowing functions: straight cutting and oblique cutting

Technical Parameters

Basic Specifications

System	Item	Unit	Parameter
Basic specifications	Applicable materials		PE, PP
	Max product volume	L	10
	Number of heads	SET	3
	Machine dimension (LxWxH)	M	3.5 x 5.6 x 2.65
	Machine weight	TON	15

Mould Clamping System

System	Item	Unit	Parameter
Mould clamping system	Mould clamping force	KN	200
	Platen opening strokes	MM	240 - 640
	Plate stroke	MM	750
	Max mould sizes (WxH)	MM	700 x 420

Extrusion System

Parameter	Value 1	Value 2	Value 3	Value 4	Value 5
Screw diameter (mm)	100	75	75	25	25
Screw slenderness ratio (L/D)	26	24	24	22	22
Plasticizing ability (HDPE) kg/h	218	75	75	3	3
Screw heating stage/zone	4	3	3	2	2
Screw heating power (kW)	17.4	12.6	12.6	1.4	1.4
Screw fan power (kW)	0.56	0.28	0.28
Extrusion motor power (kW)	55	22	22	1.5	1.5
Head heating stage/zone	14
Head heating power (kW)	30

Energy Consumption

Parameter	Unit	Value
Total machine power	kW	210
Oil motor power	kW	31
Air pressure	MPa	0.6 - 1
Compression air volume	m³/min	1.2
Cooling water volume	L/min	1000

Applications

The MP100FD blow molding machine finds extensive use across various industries for producing numerous types of plastic products:

Plastic bottles for chemical industry, lubricants, cosmetics, medical, and food packaging
Industrial drums and tanks
Tool boxes and automotive plastic parts
Plastic toys and furniture components
Various hollow industrial products

Frequently Asked Questions

Q1: What is the brand and model number of this Extrusion Blow Molding Machine?

A1: The brand name is MEPER and the model number is MP 100 FD.

Q2: Where is this Extrusion Blow Molding Machine manufactured?

A2: This machine is made in China.

Q3: What certifications does the MEPER MP 100 FD have?

A3: It is certified with CE and ISO9001:2008.

Q4: What is the minimum order quantity and how is the product packaged?

A4: The minimum order quantity is 1 set. The packaging includes a standard export package with a wooden pallet as standard, and a wooden case is optional.

Q5: What are the payment terms and delivery time for this machine?

A5: Payment can be made via L/C or T/T. The delivery time is typically 25-35 work days.

Q6: What is the supply ability of the MEPER MP 100 FD Extrusion Blow Molding Machine?

A6: The supply ability is 100 sets per month.

Q7: Is the price fixed or negotiable?

A7: The price is negotiable depending on the order quantity and specifications.
