1-30L Hollow Part Volume Extrusion Blow Molding Machine with 540mm Plate Stroke and 300 Water Consumption

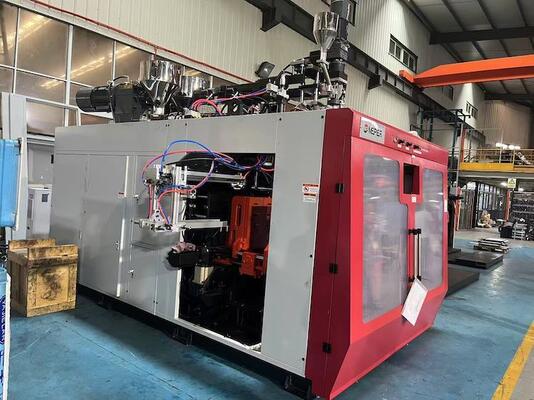

Large Image : 1-30L Hollow Part Volume Extrusion Blow Molding Machine with 540mm Plate Stroke and 300 Water Consumption

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP 100 FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiate
Packaging Details:	Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Extrusion Motor:	11kw	Moldcavity:	1-4 Cavities
Hollow Part Volume:	1-30L	Auxiliary Equipment:	Famous Brand Auxiliary Machinery
Delivery Days:	60 Days	Machine Dimensions:	3400x1800x2100mm
Control System:	WiseTech PLC	Voltage:	380V-440V

Hollow Part Volume 1 to 30L Extrusion Blow Molding Machine Featuring Water Consumption 300 and Plate Stroke 540mm Operation

Product Overview

The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products from high molecular materials. It delivers exceptional versatility and efficiency in processing various plastic types.

This machine produces hollow items ranging from 5 milliliters to 100 liters, including bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automobile parts.

It supports blowing multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring excellent processing performance for diverse manufacturing requirements.

Key Features

Variable frequency motor enables screw rotation changes during blowing process
High slenderness ratio screw handles various materials efficiently
Strong plasticizing capability with high production output and low energy consumption
Computer-controlled resistance heater ensures rapid, stable, and uniform heating
Combined extrusion system produces blown products with visible strip lines or double layers
Toggle type mechanism with linear guide and double station design for quick, stable platen movement
Improved hydraulic oil circuit design for power savings and stable performance
Removable and mobile oil tank simplifies maintenance and installation
Computer-controlled system with double proportional hydraulic control
Automatic fault alarm system and data storage for up to 40 mould sets
Three operation modes: Manual, Semi-Auto, and Full Auto
Electric and mechanical safety door prevents mould closing when open
Two blowing functions: straight cutting and oblique cutting

Technical Specifications

Basic Specifications
Item	Unit	Parameter
Applicable Materials	—	PE, PP
Maximum Product Volume	L	10
Number of Heads	SET	3
Machine Dimensions (L * W * H)	m	3.5 * 5.6 * 2.65
Machine Weight	ton	15

Mould Clamping System
Item	Unit	Parameter
Mould Clamping Force	kN	200
Platen Opening Stroke	mm	240 - 640
Plate Stroke	mm	750
Maximum Mould Size (W * H)	mm	700 * 420

Extrusion System Specifications
Parameter	Unit	100 mm	75 mm	75 mm	25 mm	25 mm
Screw Diameter	mm	100	75	75	25	25
Screw Slenderness Ratio (L/D)	—	26	24	24	22	22
Plasticizing Ability (HDPE)	kg/h	218	75	75	3	3
Screw Heating Stage/Zone	Zone	4	3	3	2	2
Screw Heating Power	kW	17.4	12.6	12.6	1.4	1.4
Screw Fan Power	kW	0.56	0.28	0.28	—	—
Extrusion Motor Power	kW	55	22	22	1.5	1.5

Head Specifications
Item	Unit	Parameter
Head Heating Stage/Zone	Zone	14
Head Heating Power	kW	30

Energy Consumption
Item	Unit	Parameter
Total Machine Power	kW	210
Oil Motor Power	kW	31
Air Pressure	MPa	0.6 - 1
Compressed Air Volume	m³/min	1.2
Cooling Water Volume	L/min	1000

Applications

The MP100FD blow molding machine serves multiple industries with its versatility and reliability:

Plastic bottle production for beverage, chemical, cosmetic, and medical packaging
Food packaging containers and industrial drums for storage and transportation
Tool boxes, automotive plastic components, and plastic toys
Furniture parts and hollow industrial products

Frequently Asked Questions

What is the brand and model number of this Extrusion Blow Molding Machine?

The machine is branded as MEPER, and the model number is MP 100 FD.

Where is the MEPER MP 100 FD Extrusion Blow Molding Machine manufactured?

This machine is manufactured in China.

What certifications does the MEPER MP 100 FD have?

The machine is certified with CE and ISO9001:2008 standards.

What are the payment terms and delivery time for this machine?

Payment can be made via L/C or T/T, and the delivery time is typically 25-35 work days.

What is the minimum order quantity and supply capacity for the MEPER MP 100 FD?

The minimum order quantity is 1 set, and the monthly supply ability is 100 sets.

How is the machine packaged for shipping?

The machine is packaged in a standard export package with a wooden pallet as standard, and a wooden case is available as an optional packaging choice.

Is the price fixed or negotiable?

The price is negotiable depending on order details and requirements.
