Voltage 380V/440V Extrusion Blowforming Machine with Screw Slenderness Ratio 24L/D

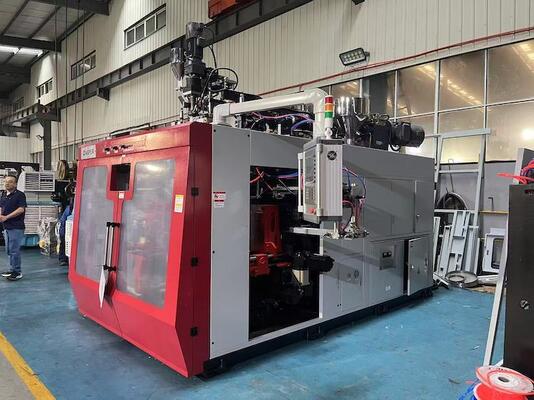

Large Image : Voltage 380V/440V Extrusion Blowforming Machine with Screw Slenderness Ratio 24L/D

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP 100 FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiate
Packaging Details:	Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Screw Slenderness Ratio:	24L/D	Hs Code:	8477301000
Control System:	WiseTech PLC	Delivery Days:	60 Days
Machine Dimensions:	3400x1800x2100mm	Output:	130-160kg/h
Moldcavity:	1-4 Cavities	Plate Stroke:	540mm

Voltage 380V/440V Extrusion Blowforming Machine with Screw Slenderness Ratio 24L/D

Product Overview

The MP plastic blow molding machine is engineered for manufacturing diverse hollow plastic products from high molecular materials. Capable of producing items ranging from 5 milliliters to 100 liters, this advanced equipment offers exceptional versatility for industrial applications.

Ideal for creating bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts. Supports processing of various plastic materials including PE, PP, PVC, PA, PC, PS, and EVA with excellent precision and processing performance.

Key Features

Variable frequency motor for adjustable screw rotation speeds
High slenderness ratio screws for wide material processing range
Computer-controlled resistance heating for rapid, stable temperature
Combined extrusion system for multi-layer or strip-line products
Toggle-type mould clamping with linear guide for stable operation
Optimized hydraulic system with power-saving design
Computer control with double proportional hydraulic technology
Stores data for 40 different mould configurations
Three operation modes: Manual, Semi-Auto, and Full Auto
Comprehensive safety devices with electric and mechanical protection
Dual blowing cutting functions: straight and oblique cutting

Technical Specifications

Basic Specifications

Item	Unit	Parameter
Applicable Materials	-	PE, PP
Maximum Product Volume	L	10
Number of Heads	Set	3
Machine Dimensions (LWH)	m	3.5 * 5.6 * 2.65
Machine Weight	Ton	15

Mould Clamping System

Item	Unit	Parameter
Mould Clamping Force	kN	200
Platen Opening Stroke	mm	240 - 640
Plate Stroke	mm	750
Maximum Mould Size (W*H)	mm	700 * 420

Extrusion System

Equipped with various screw configurations for different processing requirements:

Parameter	Unit	100 mm	75 mm (x2)	25 mm (x2)
Screw Diameter	mm	100	75 / 75	25 / 25
Screw Slenderness Ratio (L/D)	-	26	24 / 24	22 / 22
Plasticizing Ability (HDPE)	kg/h	218	75 / 75	3 / 3
Screw Heating Stages/Zones	Zone	4	3 / 3	2 / 2
Screw Heating Power	kW	17.4	12.6 / 12.6	1.4 / 1.4
Screw Fan Power	kW	0.56	0.28 / 0.28	-
Extrusion Motor Power	kW	55	22 / 22	1.5 / 1.5

Head Specifications

Item	Unit	Value
Head Heating Stages/Zones	Zone	14
Head Heating Power	kW	30

Energy Consumption

Parameter	Unit	Value
Total Machine Power	kW	210
Oil Motor Power	kW	31
Air Pressure	MPa	0.6 - 1
Compressed Air Volume	m³/min	1.2
Cooling Water Volume	L/min	1000

Applications

The MP100FD blow molding machine serves multiple industries with its versatility and efficiency:

Chemical, lubricant, and cosmetic containers
Medical bottles and food packaging
Industrial drums, tanks, and tool boxes
Automotive plastic components
Plastic toys and furniture parts
Hollow industrial products requiring lightweight durability

Frequently Asked Questions

What is the brand and model number of the Extrusion Blow Molding Machine?

The brand name is MEPER and the model number is MP 100 FD.

Where is this Extrusion Blow Molding Machine manufactured?

It is manufactured in China.

What certifications does the MP 100 FD have?

This machine is certified with CE and ISO9001:2008.

What is the minimum order quantity and payment terms for this machine?

The minimum order quantity is 1 set. Payment terms accepted are L/C and T/T.

What are the packaging details and delivery time for the MP 100 FD?

The machine is packaged in a standard export package with a wooden pallet as standard, and a wooden case is optional. Delivery time is typically 25-35 working days.

What is the supply capacity of the MEPER Extrusion Blow Molding Machine MP 100 FD?

The supply ability is 100 sets per month.

How is the price for the MP 100 FD determined?

The price is negotiable depending on order quantity and specifications.
