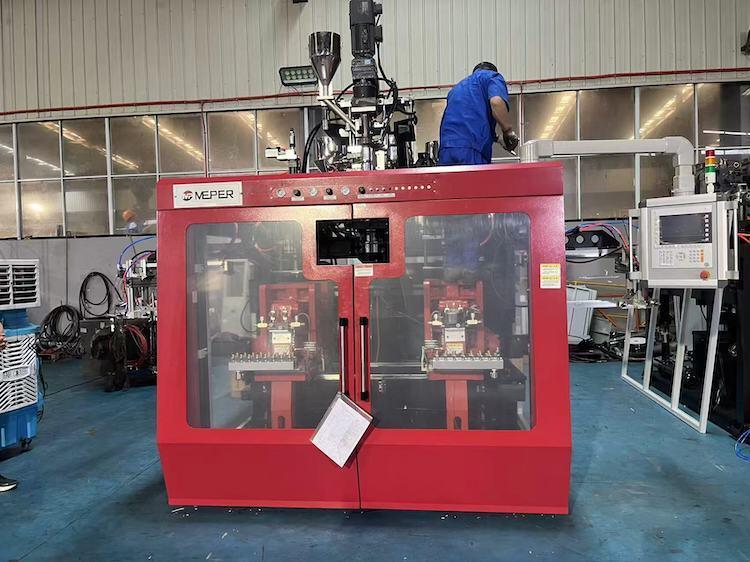

Water Consumption 300 Extrusion Blowmolding Machine

Water Consumption 300 Extrusion Blowmolding Machine
Water Consumption 300 Extrusion Blowmolding Machine

Large Image :  Water Consumption 300 Extrusion Blowmolding Machine

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Hollow Part Volume: 1-30L Output: 130-160kg/h
Hs Code: 8477301000 Water Consumption: 300
Voltage: 380V-440V Screw Slenderness Ratio: 24L/D
Mould Clamping Force: 150kn Control System: WiseTech PLC

Water Consumption 300 Extrusion Blowmolding Machine
Product Overview
The MP plastic blow molding machine is specifically designed for manufacturing a wide variety of high molecular plastic hollow products. It is highly versatile and can produce items ranging in size from as small as 5 milliliters to as large as 100 liters.
This machine is ideal for creating various hollow products, including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive parts. Its extensive application range makes it suitable for multiple industries and purposes.
The machine processes various materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring excellent and efficient processing capability for high-quality products with consistent performance.
Key Features
  • Variable frequency motor for adjustable screw rotation speed during blowing process
  • High slenderness ratio screws for processing wide variety of materials
  • Resistance heater with computer-controlled heating for rapid, stable, and uniform heating
  • Combined extrusion system for producing visual strip lines or double-layer structures
  • Toggle mechanism with linear guider for quick and stable mould platen movement
  • Optimized hydraulic oil loop for reduced power consumption and stable performance
  • Computer-controlled operation with double proportional hydraulic control
  • Automatic fault alarm system and data storage for up to 40 sets of moulds
  • Three operation modes: Manual, Semi-Automatic, and Full Automatic
  • Electric and mechanical safety door mechanism for safe operation
  • Two blowing functions: straight cutting and oblique cutting
Technical Specifications
Basic Parameters
Item Unit Basic Parameter
Applicable Materials PE, PP
Max Product Volume L 10
Number of Heads SET 3
Machine Dimension (L*W*H) M 3.5 * 5.6 * 2.65
Machine Weight TON 15
Mould Clamping System
Item Unit Basic Parameter
Mould Clamping Force KN 200
Platen Opening Stroke MM 240 - 640
Plate Stroke MM 750
Max Mould Size (W*H) MM 700 * 420
Extrusion System
Parameter Unit 100 mm 75 mm (1) 75 mm (2) 25 mm (1) 25 mm (2)
Screw Diameter MM 100 75 75 25 25
Screw Slenderness Ratio (L/D) 26 24 24 22 22
Plasticizing Ability (HDPE) KG/H 218 75 75 3 3
Screw Heating Stage/Zone Zone 4 3 3 2 2
Screw Heating Power KW 17.4 12.6 12.6 1.4 1.4
Screw Fan Power KW 0.56 0.28 0.28
Extrusion Motor Power KW 55 22 22 1.5 1.5
Head System
Item Unit Parameter
Head Heating Stage/Zone Zone 14
Head Heating Power KW 30
Energy Consumption
Item Unit Parameter
Total Machine Power KW 210
Oil Motor Power KW 31
Air Pressure MPA 0.6 - 1
Compressed Air Volume M³/min 1.2
Cooling Water Volume L/min 1000
Applications
  • Plastic bottles of various sizes and shapes
  • Chemical packaging containers
  • Lubricant and cosmetic bottles
  • Medical bottles and containers
  • Food packaging containers
  • Industrial drums and tanks
  • Tool boxes and cases
  • Automotive plastic parts
  • Plastic toys and components
  • Furniture components
  • Various hollow industrial products
Frequently Asked Questions
What is the brand and model number of the Extrusion Blow Molding Machine?
The machine is branded MEPER and the model number is MP 100 FD.
Where is the MEPER MP 100 FD Extrusion Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MEPER MP 100 FD hold?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and how is the packaging done?
The minimum order quantity is 1 set. Packaging includes a standard export package with a wooden pallet as standard, and a wooden case is optional.
What are the delivery time and payment terms for this machine?
Delivery time is typically 25-35 work days. Payment terms accepted are L/C and T/T.
What is the supply ability of the MEPER MP 100 FD Extrusion Blow Molding Machine?
The supply ability is 100 sets per month.
How is the price of the MEPER MP 100 FD Extrusion Blow Molding Machine determined?
The price is negotiable based on order quantity and other factors.
