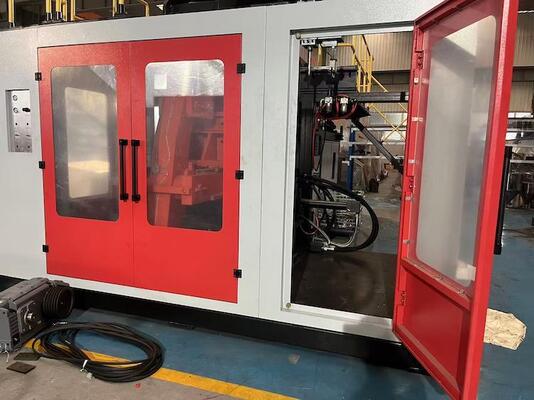

MP100FD Automatic Extrusion Blow Molding Machine for 5ml-100L HDPE Bottles | Double Station Energy Saving

MP100FD Automatic Extrusion Blow Molding Machine for 5ml-100L HDPE Bottles | Double Station Energy Saving
MP100FD Automatic Extrusion Blow Molding Machine for 5ml-100L HDPE Bottles | Double Station Energy Saving

Large Image :  MP100FD Automatic Extrusion Blow Molding Machine for 5ml-100L HDPE Bottles | Double Station Energy Saving

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Moldcavity: 1-4 Cavities Extrusion Motor: 11kw
Molding Method: Blow Molding Hs Code: 8477301000
Hollow Part Volume: 1-30L Control System: WiseTech PLC
Water Consumption: 300 Screw Slenderness Ratio: 24L/D

11kw Extrusion Motor Extrusion Blow Moulder Voltage 380V 440V
Product Overview
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products from high molecular materials. Capable of producing items ranging from 5 milliliters to 100 liters, this versatile machine serves multiple industries with precision and efficiency.
Key Features
  • Variable frequency motor with optimized screw design for superior plasticizing capabilities
  • Computer-controlled resistance heating for rapid, stable, and uniform temperature distribution
  • Combined extrusion system supporting visible strip lines and double-layer structures
  • Toggle mechanism with linear guider for enhanced mould clamping performance
  • Redesigned hydraulic oil loop for power efficiency and stable operation
  • Advanced computer control system with automatic fault alarms and data memory for 40 mould sets
  • Three operation modes: Manual, Semi Auto, and Full Auto
  • Electric and mechanical safety door system for operator protection
  • Dual blowing functions: straight cutting and oblique cutting
Technical Specifications
Basic Specifications
Parameter Unit Value
Applicable Materials PE, PP
Max Product Volume L 10
Number of Heads SET 3
Machine Dimension (L x W x H) m 3.5 x 5.6 x 2.65
Machine Weight Ton 15
Mould Clamping System
Parameter Unit Value
Mould Clamping Force KN 200
Platen Opening Stroke MM 240 - 640
Plate Stroke MM 750
Max Mould Sizes (W x H) MM 700 x 420
Extrusion System
Parameter Units Values
Screw Diameter MM 100, 75, 75, 25, 25
Screw Slenderness Ratio (L/D) 26, 24, 24, 22, 22
Plasticizing Ability (HDPE) KG/H 218, 75, 75, 3, 3
Screw Heating Stages/Zones Zone 4, 3, 3, 2, 2
Screw Heating Power KW 17.4, 12.6, 12.6, 1.4, 1.4
Screw Fan Power KW 0.56, 0.28, 0.28, -, -
Extrusion Motor Power KW 55, 22, 22, 1.5, 1.5
Head Heating System
Parameter Unit Value
Head Heating Stages/Zones Zone 14
Head Heating Power KW 30
Energy Consumption
Parameter Unit Value
Total Machine Power KW 210
Oil Motor Power KW 31
Air Pressure MPA 0.6 - 1
Compressed Air Volume M³/min 1.2
Cooling Water Volume L/min 1000
Applications
  • Packaging: plastic bottles, chemical containers, lubricant bottles, cosmetic containers, medical bottles
  • Food packaging containers meeting industry safety standards
  • Industrial drums and tanks for large-scale storage solutions
  • Tool boxes, automotive plastic parts, and plastic toys
  • Furniture components and hollow industrial products
Frequently Asked Questions
What is the brand and model number of this Extrusion Blow Molding Machine?
The machine is branded MEPER and the model number is MP 100 FD.
Where is the Extrusion Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MEPER MP 100 FD have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for this machine?
The minimum order quantity is 1 set. The price is negotiable depending on order details.
What are the packaging details and delivery time?
The machine comes with a standard export package, including a wooden pallet as standard and a wooden case as optional packaging. Delivery time is typically 25-35 working days.
What are the payment terms and supply ability?
Payment terms accepted are L/C and T/T. The supply ability is 100 sets per month.
