PLC Touch Screen Extrusion Blow Molding Machine MP100FD 80mm Screw Multi Die Head HDPE PP Bottle

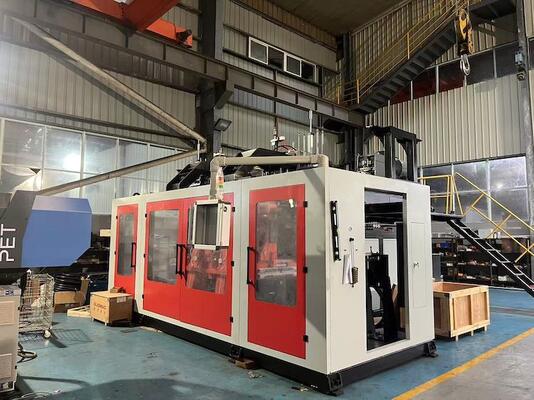

Large Image : PLC Touch Screen Extrusion Blow Molding Machine MP100FD 80mm Screw Multi Die Head HDPE PP Bottle

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP 100 FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiate
Packaging Details:	Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Output:	130-160kg/h	Hollow Part Volume:	1-30L
Extrusion Motor:	11kw	Mould Clamping Force:	150kn
Delivery Days:	60 Days	Voltage:	380V-440V
Hs Code:	8477301000	Molding Method:	Blow Molding

Hollow Part Volume 1 to 30L Extrusion Blow Molding Machine

Product Overview

The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow items from high molecular materials. Capable of producing products ranging from 5 milliliters to 100 liters in size, this versatile machine handles bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts.

Compatible with PE, PP, PVC, PA, PC, PS, and EVA materials, it ensures optimal molding processes for consistent, high-quality results across various industrial applications.

Key Features

Variable frequency motor for adjustable screw rotation speed during blowing process
High slenderness ratio screws with strong plasticizing capabilities
Computer-controlled resistance heater for rapid, stable, and even heating
Combined extrusion system for producing visual strip lines or double-layer structures
Toggle-type mould clamping mechanism with linear guide system and double-station setup
Optimized hydraulic oil circuit for energy efficiency and stable performance
Computerized control system with dual proportional hydraulic control
Three operation modes: Manual, Semi Auto, and Full Auto
Electric and mechanical safety devices on safety door
Straight and oblique blowing cutting functions for diverse product shapes

Technical Specifications

Basic Specifications

Parameter	Unit	Value
Applicable Materials	—	PE, PP
Maximum Product Volume	L	10
Number of Heads	SET	3
Machine Dimensions (LWH)	m	3.5 * 5.6 * 2.65
Machine Weight	ton	15

Mould Clamping System

Parameter	Unit	Value
Mould Clamping Force	kN	200
Platen Opening Stroke	mm	240 - 640
Plate Stroke	mm	750
Maximum Mould Size (W*H)	mm	700 * 420

Extrusion System

Parameter	Unit	Spec 1	Spec 2	Spec 3	Spec 4	Spec 5
Screw Diameter	mm	100	75	75	25	25
Screw Slenderness Ratio (L/D)	—	26	24	24	22	22
Plasticizing Ability (HDPE)	kg/h	218	75	75	3	3
Screw Heating Stages/Zones	zone	4	3	3	2	2
Screw Heating Power	kW	17.4	12.6	12.6	1.4	1.4
Screw Fan Power	kW	0.56	0.28	0.28	—	—
Extrusion Motor Power	kW	55	22	22	1.5	1.5

Head Unit

Parameter	Unit	Value
Head Heating Stages/Zones	zone	14
Head Heating Power	kW	30

Energy Consumption

Parameter	Unit	Value
Total Machine Power	kW	210
Oil Motor Power	kW	31
Air Pressure	MPa	0.6 - 1
Compressed Air Volume	m³/min	1.2
Cooling Water Volume	L/min	1000

Applications

The MP100FD blow molding machine serves diverse industries with precision and consistency in hollow plastic product manufacturing:

Plastic bottles for cosmetics, lubricants, chemicals, and medical purposes
Food packaging containers
Industrial drums and tanks requiring durability and strength
Tool boxes and automotive plastic components
Hollow plastic toys and various furniture parts

Frequently Asked Questions

What is the brand and model number of the Extrusion Blow Molding Machine?

The machine is branded MEPER, and the model number is MP 100 FD.

Where is the Extrusion Blow Molding Machine manufactured?

This machine is manufactured in China.

What certifications does the MEPER MP 100 FD have?

The machine is certified with CE and ISO9001:2008 standards.

What is the minimum order quantity and pricing for this machine?

The minimum order quantity is 1 set, and the price is negotiable.

What are the packaging details and delivery time for the Extrusion Blow Molding Machine?

The machine is packed in a standard export package with a wooden pallet as standard and a wooden case as an optional packaging. Delivery time is typically 25-35 working days.

What payment terms are accepted for purchasing the MP 100 FD machine?

Payment can be made via L/C (Letter of Credit) or T/T (Telegraphic Transfer).

What is the supply capacity of MEPER for this model?

MEPER can supply up to 100 sets of the MP 100 FD machine per month.
