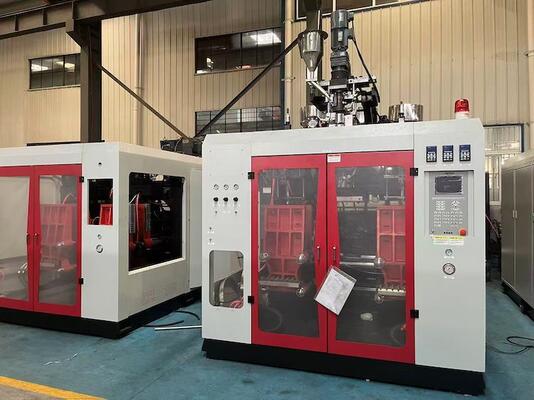

Extrusion Blow Molding Machine MP100FD Multi Die Head 80mm Screw 180kN Clamping Force 5L 100L

Large Image : Extrusion Blow Molding Machine MP100FD Multi Die Head 80mm Screw 180kN Clamping Force 5L 100L

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP 100 FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiate
Packaging Details:	Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Extrusion Motor:	11kw	Delivery Days:	60 Days
Auxiliary Equipment:	Famous Brand Auxiliary Machinery	Hollow Part Volume:	1-30L
Voltage:	380V-440V	Molding Method:	Blow Molding
Mould Clamping Force:	150kn	Control System:	WiseTech PLC

Water Consumption 300 Extrusion Blowing Machine Featuring Plate Stroke 540mm

Product Overview

The MP plastic blow molding machine is engineered for manufacturing various types of plastic hollow products using high molecular materials. It efficiently produces hollow items ranging from 5 milliliters to 100 liters in capacity.

This versatile machine creates diverse products including bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts. It supports multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring high-quality processing and reliable blow molding results.

Key Features

Variable frequency motor for precise screw rotation speed control
High slenderness ratio screws for versatile material processing
Computer-controlled resistance heating for rapid, stable temperature management
Combined extrusion system for multi-layer and strip-line products
Toggle mechanism with linear guider for efficient mold clamping
Energy-saving hydraulic oil circuit design
Removable mobile oil tank for easy maintenance
Computer-controlled operation with automatic fault alarms
Three operation modes: Manual, Semi-Auto, and Full Auto
Comprehensive safety devices on safety doors
Straight and oblique cutting blowing functions

Technical Specifications

System	Parameter
Applicable Materials	PE, PP
Maximum Product Volume	10 liters
Number of Heads	3
Machine Dimensions	3.5m (L) * 5.6m (W) * 2.65m (H)
Total Weight	15 tons
Clamping Force	200 KN
Platen Opening Stroke	240-640 mm
Plate Stroke	750 mm
Maximum Mold Size	700mm * 420mm
Total Power Consumption	210 kW
Oil Motor Power	31 kW
Air Pressure Requirement	0.6-1 MPa
Compressed Air Volume	1.2 m³/min
Cooling Water Flow	1000 L/min

Applications

The MP100FD blow molding machine serves multiple industries with its versatile production capabilities:

Packaging: Plastic bottles, chemical containers, lubricant bottles, cosmetic containers, medical bottles, food packaging
Industrial: Drums, tanks, tool boxes
Automotive: Plastic components and parts
Consumer Goods: Toys, furniture components, various hollow industrial products

Frequently Asked Questions

What is the brand and model number of this Extrusion Blow Molding Machine?

The machine is branded MEPER, and the model number is MP 100 FD.

Where is the MEPER MP 100 FD Extrusion Blow Molding Machine manufactured?

This machine is manufactured in China.

What certifications does the MEPER MP 100 FD have?

The machine holds CE and ISO9001:2008 certifications.

What is the minimum order quantity and pricing terms for this machine?

The minimum order quantity is 1 set, and the price is negotiable.

What are the packaging details and delivery time for the MEPER MP 100 FD?

The machine is packaged in a standard export package, typically on a wooden pallet, with an optional wooden case. Delivery time is approximately 25-35 working days.

What are the payment terms and supply ability for the MEPER MP 100 FD Extrusion Blow Molding Machine?

Payment can be made via L/C or T/T, and the supply ability is 100 sets per month.
