WiseTech PLC Control System Extrusion Blow Molding Machine

WiseTech PLC Control System Extrusion Blow Molding Machine
WiseTech PLC Control System Extrusion Blow Molding Machine

Large Image :  WiseTech PLC Control System Extrusion Blow Molding Machine

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Output: 130-160kg/h Extrusion Motor: 11kw
Machine Dimensions: 3400x1800x2100mm Auxiliary Equipment: Famous Brand Auxiliary Machinery
Delivery Days: 60 Days Mould Clamping Force: 150kn
Molding Method: Blow Molding Moldcavity: 1-4 Cavities

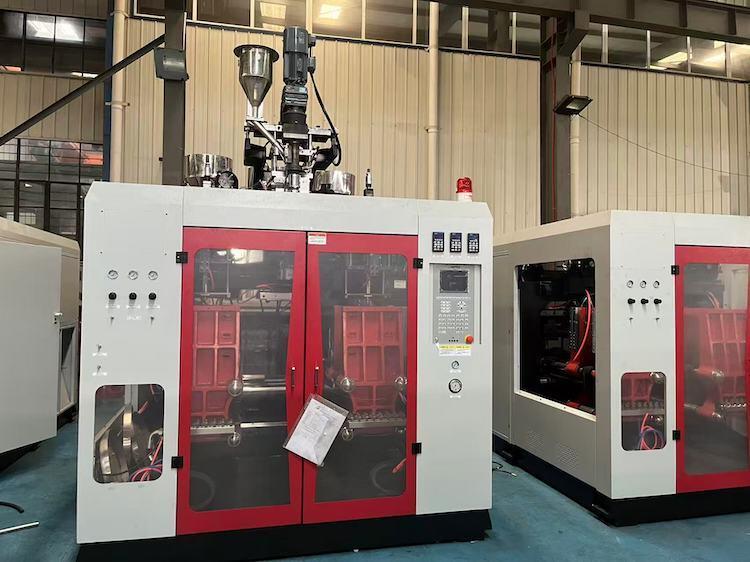

WiseTech PLC Control System Extrusion Blow Molding Machine
Equipped with auxiliary machinery output of 130 to 160kg per hour
Product Overview
The MP plastic blow molding machine is specifically designed for manufacturing a wide range of plastic hollow products using high molecular materials. Its versatile capabilities enable production of items with volumes ranging from 5 milliliters up to 100 liters.
Product Range
This machine is suitable for creating various hollow items including:
  • Bottles, pots, jars, and barrels
  • Toys and toolboxes
  • Bed boards, desk boards, and chairs
  • Automotive parts
Material Compatibility
The MP blow molding machine can process multiple types of plastic materials including:
  • Polyethylene (PE)
  • Polypropylene (PP)
  • Polyvinyl chloride (PVC)
  • Polyamide (PA)
  • Polycarbonate (PC)
  • Polystyrene (PS)
  • Ethylene-vinyl acetate (EVA)
Key Features
Extrusion System
Equipped with variable frequency motor accommodating rotational speed changes during blowing process. Features high slenderness ratio screw for processing various materials efficiently, providing strong plasticizing capabilities, high production output, and low energy consumption.
Combined Extrusion System
Installing different heads between two extrusion machines allows for blowing products with visual strip lines or double-layer structures, enhancing design possibilities and manufacturing versatility.
Mould Clamping System
Toggle type mechanism with linear guider and double-station setup. Mould platen moves at increased speeds with improved stability for efficient and reliable moulding operations.
Hydraulic System
Improved hydraulic oil loop for better performance with energy-saving benefits. Provides rapid and stable hydraulic power with user-friendly installation and maintenance.
Control System
Computerized control system with double proportional control integration. Features automatic fault alarm, high automation levels, and data storage for up to 40 different moulds.
Operation Modes
Three selectable operation modes: "Manual," "Semi-Auto," and "Full Auto" to cater to different production needs and preferences.
Safety Features
Electric and mechanical safety door device prevents mould closing when safety door is open, ensuring safe and reliable operation.
Cutting Functions
Supports two blowing cutting functions: straight cutting and oblique cutting, offering versatility in product shaping.
Technical Specifications
Basic Specifications
Parameter Unit Value
Applicable Materials PE, PP
Maximum Product Volume L 10
Number of Heads SET 3
Machine Dimensions (L x W x H) m 3.5 x 5.6 x 2.65
Machine Weight TON 15
Mould Clamping System
Parameter Unit Value
Mould Clamping Force kN 200
Platen Opening Stroke mm 240–640
Plate Stroke mm 750
Maximum Mould Size (W x H) mm 700 x 420
Extrusion System
Parameter Unit Value 1 Value 2 Value 3 Value 4 Value 5
Screw Diameter mm 100 75 75 25 25
Screw Slenderness Ratio (L/D) 26 24 24 22 22
Plasticizing Ability (HDPE) kg/h 218 75 75 3 3
Screw Heating Stages / Zones Zone 4 3 3 2 2
Screw Heating Power kW 17.4 12.6 12.6 1.4 1.4
Screw Fan Power kW 0.56 0.28 0.28
Extrusion Motor Power kW 55 22 22 1.5 1.5
Head System
Parameter Unit Value
Head Heating Stages / Zones Zone 14
Head Heating Power kW 30
Energy Consumption
Parameter Unit Value
Total Machine Power kW 210
Oil Motor Power kW 31
Air Pressure MPa 0.6 - 1
Compressed Air Volume m³/min 1.2
Cooling Water Flow Rate L/min 1000
Applications
The MP100FD blow molding machine finds extensive use across various industries for producing a wide range of plastic products:
  • Plastic bottles for chemicals, lubricants, cosmetics, and medical applications
  • Food packaging containers ensuring safe and reliable storage solutions
  • Industrial drums and tanks
  • Tool boxes and automotive plastic parts
  • Plastic toys and furniture components
  • Various hollow industrial products
Frequently Asked Questions
What is the brand and model number of the extrusion blow molding machine?
The machine is branded MEPER and the model number is MP 100 FD.
Where is the MEPER MP 100 FD extrusion blow molding machine manufactured?
It is manufactured in China.
What certifications does the MEPER MP 100 FD have?
The machine holds CE and ISO9001:2008 certifications.
What is the minimum order quantity and the supply ability for this machine?
The minimum order quantity is 1 set, and the supply ability is 100 sets per month.
What are the packaging details and delivery time for the machine?
The machine comes with a standard export package, with a wooden pallet as standard and wooden case optional. The delivery time is 25-35 working days.
What payment terms are accepted for purchasing the MEPER MP 100 FD extrusion blow molding machine?
Payment terms accepted are L/C (Letter of Credit) and T/T (Telegraphic Transfer).
Is the price of the MEPER MP 100 FD extrusion blow molding machine fixed?
The price is negotiable depending on order quantity and other factors.
