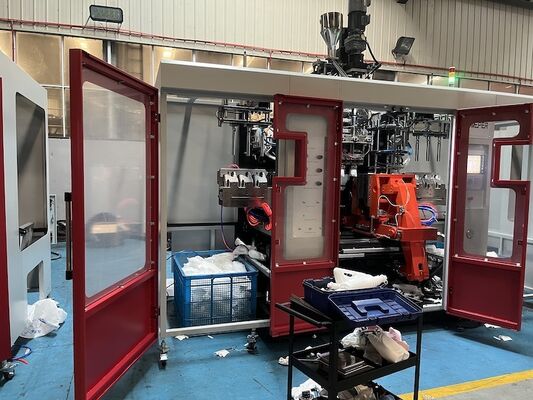

Economical extrusion blow molding machine meper 100fd

Product Description:

The MP plastic blow molding machine is specifically designed for manufacturing a wide range of plastic hollow products made from high molecular materials. It is capable of producing items with volumes ranging from as small as 5 milliliters up to 100 liters.

This versatile machine can create various hollow objects such as bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automobile parts, among others. It caters to a diverse array of plastic products used in different industries.

In addition to its broad product capacity, the MP blow molding machine supports multiple types of plastic materials. These include polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polyamide (PA), polycarbonate (PC), polystyrene (PS), and ethylene vinyl acetate (EVA). The machine also ensures an optimal and efficient production process, delivering high-quality results every time.

Features:

The extruding device is equipped with a variable frequency motor, enabling the screw to adjust its rotation speed during the blowing process. This allows the use of screws with a high slenderness ratio, which can handle a wide variety of materials. The screw provides strong plasticizing capability, high production efficiency, and reduced energy consumption. Additionally, the barrel features resistance heaters controlled by a computer system, ensuring rapid, stable, and uniform heating.

By installing different heads within a combined extrusion system that connects two extrusion machines, it is possible to manufacture products with visual strip lines or double layers. This versatility enhances the range of finished products achievable with the system.

The mould clamping mechanism utilizes a toggle type along with a linear guide system. The dual-station design allows the mould platen to move faster and with greater stability, improving the operational speed and precision of the machine.

An improved hydraulic oil circuit has been designed for this machine, delivering energy savings, rapid responses, and stable performance. The installation and maintenance of hydraulic components are made convenient, as the machine is equipped with a removable and mobile oil tank.

The entire system is computer-controlled, featuring a hydraulic system with dual proportional control. It includes an automatic fault alarm for reliable operation, a high degree of automation, and the capability to store data for up to 40 moulds.

Operators can select from three modes of operation: "Manual," "Semi-Auto," and "Full-Auto," allowing flexible control depending on production needs.

Safety is prioritized with the inclusion of both electrical and mechanical safety devices on the safety door. This design prevents the mould from closing when the safety door is open, ensuring safe and reliable operation at all times.

The machine supports two blowing functions: straight cutting and oblique cutting, providing additional versatility in product shaping.

Furthermore, the machine is equipped with an oblique blowing function, expanding its operational capabilities.

Technical Parameters:

Applications:

Extrusion blow molding machines are widely used in the packaging industry to manufacture a variety of hollow plastic containers. These include containers for personal care and cosmetics such as shampoo bottles, shower gel bottles, liquid soap dispensers, and various cosmetic jars and bottles.

In the chemical sector, these machines produce lubricant bottles, pesticide containers, and bottles for chemical reagents. Additionally, the food and beverage industry benefits from extrusion blow molding by creating milk bottles, juice containers, and edible oil bottles, primarily made from high-density polyethylene (HDPE).

Pharmaceutical packaging also relies on these machines to produce bottles for medicines and disinfectants, particularly for non-sterile products.

Large hollow containers such as chemical drums and plastic barrels ranging from 5 to 200 liters are manufactured using extrusion blow molding. This technique is also employed in producing automotive components including fuel tanks, air ducts, coolant tanks, and fluid reservoirs.

Moreover, various equipment housings comprising hollow cases and enclosures are fabricated utilizing this technology.

The agricultural sector makes use of extrusion blow molding for producing pesticide sprayers, containers for fertilizers, water cans, and various irrigation-related hollow parts. These applications help improve efficiency and durability in agricultural operations.

Among consumer goods, extrusion blow molding is used to create plastic toys such as hollow toys and balls. It is also instrumental in manufacturing trash bins, storage containers, water tanks, and small reservoirs widely found in households.

In more specialized fields, multi-layer co-extrusion products such as barrier bottles that provide anti-permeation and oxygen barriers are produced. Additionally, recycled plastic products, especially non-food-grade containers made from recycled materials, are manufactured using this process.

Other special materials involving anti-static, chemical-resistant, and flame-retardant plastic products are also feasible with extrusion blow molding technology.

The materials commonly processed through extrusion blow molding machines include HDPE (High-Density Polyethylene), which is the most prevalent. Other materials such as LDPE, LLDPE, polypropylene (PP), and PVC (subject to regional restrictions) are also used.

For special applications, materials like EVA and PA (Nylon) can be employed to meet specific performance requirements.

Extrusion blow molding machines are vital in the production of hollow plastic products, serving key roles across multiple industries including packaging, chemical manufacturing, automotive, agriculture, and consumer goods. Their versatility and material compatibility make them indispensable in modern manufacturing.
