MP75FD Automatic Blow Moulding Machine with Double Layer Design 360220236cm Size

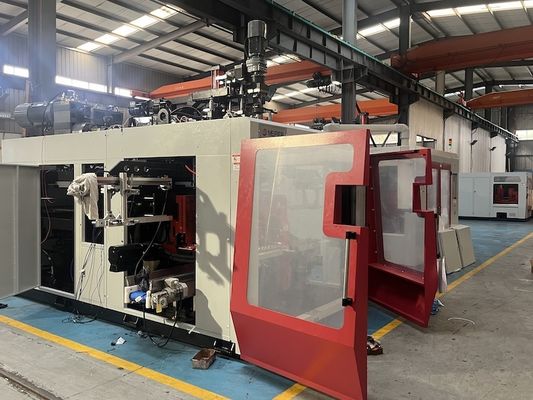

Large Image : MP75FD Automatic Blow Moulding Machine with Double Layer Design 360*220*236cm Size

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP75FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Price Negotiation.
Packaging Details:	Standard Export Package
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Warranty Time:	1 Year	Applicable Material:	HDPE LDPE PP
Screw Diameter:	80mm	Die Head Number:	1/2/3/4
Riven Type:	Electric	Feature:	High Barrier Bottles
Sizemain Machine:	360220236cm	Sutiable:	0-5L Bottle
Highlight:	automatic blow moulding machine with double layer , MP75FD blow moulding machine 360x220x236cm , double layer blow moulding machine with warranty

MP75FD Automatic Blow Moulding Machine with Double Layer Design 360*220*236cm Size

Product Description

The MP75FD Automatic Blow Moulding Machine is industrial equipment designed for producing hollow plastic items such as bottles, containers, jars, and tanks. The process involves heating plastic material until pliable, then using compressed air to expand it into the mould cavity shape. This enables efficient manufacturing of hollow plastic products with uniform walls, playing a critical role in mass production for various industries.

Key Features

Fully Automatic Operation: Automated processes minimize labor costs and human errors while ensuring production consistency.
High Production Capacity: Multi-cavity design (2-12 cavities) produces 1,000-20,000 bottles/hour for medium to large-scale production.
Consistent Quality: Precise control over heating, stretch ratio, and blowing pressure ensures uniform wall thickness and strength.
Energy Efficient: Infrared heating system and servo-driven components reduce power consumption.
Versatile Production: Quick mould-switching system accommodates various bottle types (beverages, oils, cosmetics, pharmaceuticals).
User-Friendly: PLC touchscreen interface with error diagnosis simplifies operation and maintenance.
24/7 Operation: Designed for continuous production and seamless integration with filling and packaging lines.

Technical Specifications

Parameter	Specification
Material	PE, PP
Max Container Capacity (L)	0.1
Number of Die Sets	4
Machine Dimensions (L×W×H) (M)	3.6×2.2×2.36
Total Weight (Ton)	5.5
Clamping Force (KN)	120
Platen Opening Strokes (mm)	180-480
Max Mould Size (W×H) (mm)	460×450
Screw Diameter (mm)	80
Plasticizing Capacity (kg/h)	100
Total Power (kw)	65.13
Average Energy Consumption (kw)	31

Applications

Primary Industries Served:

Beverage Packaging: Water, juice, carbonated drink bottles
Food Packaging: Oil, vinegar, dairy, and condiment containers
Household & Personal Care: Detergent, shampoo, cosmetic bottles
Pharmaceutical: Medicine and supplement containers
Chemical & Industrial: Lubricant, pesticide, chemical containers

Customization Options

The MP75FD model offers flexible customization with CE and ISO9001:2008 certification. Options include:

1-4 die head configurations
Production capacity for 0-5 liter bottles
Minimum order quantity: 1 set
Negotiable pricing and flexible payment terms (L/C, T/T)
Standard export packaging with 25-35 work day delivery
Monthly supply capacity: 100 sets

Tag:

Contact Person: Levi.Li

Tel: 86-13396686968

Fax: 86-574-81688011
