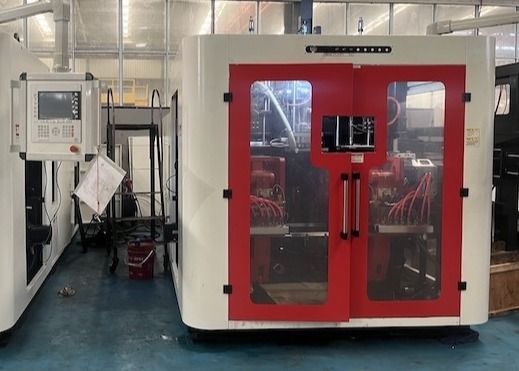

Electric Riven Type MP75FD Automatic Blow Moulding Machine with 80mm Screw Diameter

All Products
Extrusion Blow Molding Machine (122)
Plastic Bottle Blow Molding Machine (114)
Automatic Blow Moulding Machine (101)
Extrusion Molding Machine (99)
Plastic Bottle Mold (20)
Plastic Auxiliary Machine (19)
Packaging Auxiliary Machine (5)
HDPE Blow Molding Machine (15)
Custom Plastic Injection Molding (3)
Plastic Injection Molding Machine (42)
High Speed Injection Moulding Machine (8)
PET Injection Moulding Machine (5)
PVC Injection Moulding Machine (4)
Medical Injection Molding Machine (3)
Best Products
IML Single Station Blow Molding Machine

IML Single Station Blow Molding Machine

FMCG Bottle Automatic Blow Moulding Machine

FMCG Bottle Automatic Blow Moulding Machine

Auto Defleshing System Plastic Bottle Blow Molding Machine

Auto Defleshing System Plastic Bottle Blow Molding Machine

China Ningbo Qiming Machinery Manufacturing Co., Ltd. certification
China Ningbo Qiming Machinery Manufacturing Co., Ltd. certification
The biggest advantage of Meper machine is very stable without any worries. Some of our machines have been in use for 10 years and are still in normal use. The meper machine is great.

—— JOSE (BRAZIL)

I like Meper machines because of their service. They always solve problems for us in time, so I highly recommend Meper machine.

—— KUMAR(INDIA)

Meper machine is very good. Although our country is very hot, the machines work very steadily.

—— MOHAMMED( SAUDI ARABIA)

Meper machine is very good. Хорошо

—— IWANOWSKI(RUSSIA)

Meper ,good machine, good service.

—— JOHN( SOUTH AFRICA)

I'm Online Chat Now

Electric Riven Type MP75FD Automatic Blow Moulding Machine with 80mm Screw Diameter

Electric Riven Type MP75FD Automatic Blow Moulding Machine with 80mm Screw Diameter
Electric Riven Type MP75FD Automatic Blow Moulding Machine with 80mm Screw Diameter

Large Image :  Electric Riven Type MP75FD Automatic Blow Moulding Machine with 80mm Screw Diameter

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP75FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Price Negotiation.
Packaging Details: Standard Export Package
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Feature: High Barrier Bottles Riven Type: Electric
Applicable Material: HDPE LDPE PP Screw Diameter: 80mm
Screw Heating Capacity: 6kw Sutiable: 0-5L Bottle
Sizemain Machine: 360*220*236cm Iml: In Mold Labeling
Highlight:

Electric Riven blow moulding machine

,

Automatic blow moulding machine with 80mm screw

,

MP75FD blow moulding machine with warranty

Electric Riven Type MP75FD Automatic Blow Moulding Machine with 80mm Screw Diameter
Product Description
The MP75FD Automatic Blow Moulding Machine is industrial equipment designed for efficient production of hollow plastic items such as bottles, containers, jars, and tanks. The process involves heating plastic material until pliable, then using compressed air to expand it into the shape of the mould cavity. This technology enables precise manufacturing of hollow objects with consistent quality and high production speeds, making it essential for industries requiring plastic packaging and storage solutions.
Key Features
  • Fully Automatic Operation: Reduces labor costs through automated preform loading, heating, blowing, and bottle ejection processes.
  • High Production Capacity: Multi-cavity design (2-12 cavities) enables output of 1,000-20,000 bottles per hour.
  • Consistent Quality: Precise control over heating temperature, stretch ratio, and blowing pressure ensures uniform wall thickness and strength.
  • Energy Efficient: Infrared heating system and servo-driven components reduce power consumption.
  • Versatile Mould Compatibility: Quick mould-switching system accommodates various bottle types and sizes.
  • User-Friendly Operation: PLC touchscreen interface with error diagnosis and automatic alarm system.
  • Wide Material Compatibility: Processes PET, HDPE, and PP materials for diverse applications.
  • Continuous Production: Designed for stable 24/7 operation with seamless integration into production lines.
Technical Specifications
Parameter MP75FD φ80
Material PE, PP
Max Container Capacity (L) 0.1
Number of Die Sets 4
Machine Dimensions (L×W×H) (M) 3.6×2.2×2.36
Total Weight (Ton) 5.5
Clamping Force (KN) 120
Platen Opening Strokes (mm) 180-480
Toggle Stroke (mm) 300
Max Mould Size (W×H) (mm) 460×450
Screw Diameter (mm) 80
Screw L/D Ratio 24
(HDPE) Plasticizing Capacity (kg/h) 100
Screw Heating Zone 4
Screw Heating Power (kw) 15.85
Extruder Driving Power (kw) 30
Total Power (kw) 65.13
Average Energy Consumption (kw) 31
Application Fields
  • Beverage packaging (water, juice, carbonated drinks)
  • Food packaging (edible oils, dairy products, condiments)
  • Household & personal care products (detergents, shampoos, cosmetics)
  • Pharmaceutical packaging (medicine bottles, supplements)
  • Chemical & industrial packaging (lubricants, pesticides, reagents)
  • Home & daily use products (plastic toys, storage containers)
  • Medical & healthcare packaging (disinfectant bottles, spray bottles)
  • Custom & specialized packaging (premium cosmetics, brand-specific bottles)
Customization Options
The MP75FD Automatic Blow Moulding Machine is available with customizable options to meet specific production requirements. Certified with CE and ISO9001:2008 standards, it offers:
  • Flexible die head configurations (1-4 sets)
  • 6kw screw heating capacity
  • Electric riven type for precise control
  • Capability to produce high barrier bottles
  • Minimum order quantity of 1 set
  • Production capacity of 100 sets/month
  • Delivery within 25-35 work days
  • Standard export packaging
  • Flexible payment terms (L/C, T/T)
  • 1-year warranty included
