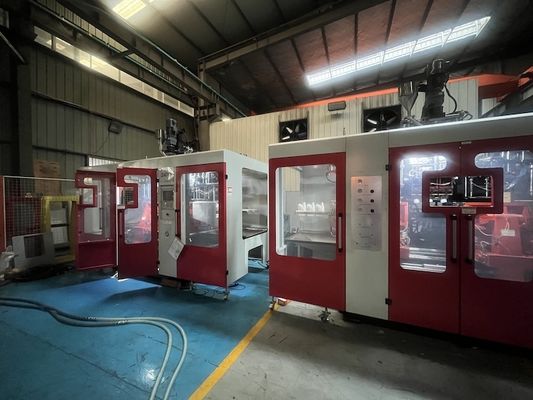

Electric Riven Type MP 80FD HDPE Blow Molding Machine with Double Layer Design

Electric Riven Type MP 80FD HDPE Blow Molding Machine with Double Layer Design
Electric Riven Type MP 80FD HDPE Blow Molding Machine with Double Layer Design

Large Image :  Electric Riven Type MP 80FD HDPE Blow Molding Machine with Double Layer Design

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP75FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Price Negotiation.
Packaging Details: Standard Export Package
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Sizemain Machine: 360*220*236cm Iml: In Mold Labeling
Feature: High Barrier Bottles Riven Type: Electric
Screw Heating Capacity: 6kw Sutiable: 0-5L Bottle
Applicable Material: HDPE LDPE PP Warranty Time: 1 Year
Highlight:

HDPE blow molding machine

,

electric blow molding machine with warranty

,

double layer blow molding machine

Electric Riven Type MP 80FD HDPE Blow Molding Machine with Double Layer Design
Product Description
An Automatic Blow Moulding Machine is a piece of industrial equipment designed for producing hollow plastic items. This machine is commonly used to create various products like bottles, containers, jars, and tanks. The process involves heating plastic material until it becomes malleable. Then, compressed air is blown into the softened plastic, causing it to expand and press tightly against the interior surfaces of a mould. This method allows the formation of precise hollow shapes. By automating the blow moulding process, these machines enhance production efficiency and ensure consistent quality in the manufacturing of plastic containers and other hollow plastic goods.
Key Features
  • Fully Automatic Operation: Reduces labor costs with automatic preform loading, heating, blowing, and bottle ejection processes.
  • High Production Capacity: Multi-cavity design (2-12+ cavities) produces 1,000-20,000 bottles/hour.
  • Consistent Quality: Precise control ensures uniform wall thickness, clarity, and strength with minimal defects.
  • Energy Efficient: Infrared heating system and servo-driven components reduce power consumption.
  • Versatile Mould System: Quick change capability accommodates various bottle types (beverage, oil, cosmetic, pharmaceutical).
  • User-Friendly: PLC touchscreen interface with error diagnosis and alarm system.
  • Wide Material Compatibility: Processes PET, HDPE, and PP for diverse applications.
  • Continuous Operation: Designed for 24/7 production with seamless line integration.
Technical Specifications
80FDE-4S(100)
MAX CONTAINER CAPACITY L 500ML
NUMBER OF DIE set 4
MACHINE DIMENSION(LxWxH) M 3.82x4x2.5
TOTAL WEIGHT ton 8.6
CLAMPING UNIT
CLAMPING FORCE kN 120
PLATEN OPENING mm 240-600
TOGGLE STROKE mm 540
MAX MOULD SIZE (WxH) mm 480x500
EXTRUDER UNIT
SCREW DIAMETER mm 75
SCREW L/D RATIO L/D 24
PLASTICIZING CAPACI(HDPE) Kg/h 85
SCREW HEATING ZONE zone 3
SCREW HEATING POWER kW 15.3
FAN POWER kW 0.14
EXTRUDER MOTOR POWER kW 22
DIE HEAD
DIE HEAD HEATING ZONE zone 15
POWER OF DIE HEAD HEATING kW 16.5
MAX DIAMETER OF MOUTH MOLD mm 35
ENERGY-CONSUMPTION
TOTAL POWER OF MACHINE kW 72
POWER OF OIL PUMP MOTO kW 15
AIR PRESSURE Mpa 0.6-0.8
CONSUMPTION COMPRESSION AIR m3/min 1.5
CONSUMPTION COOLING WATER m3/min 0.4
Applications
  • Beverage Packaging: Water, juice, carbonated drink bottles (primary PET market)
  • Food Packaging: Edible oil, dairy, condiment containers meeting hygiene standards
  • Household & Personal Care: Detergent, shampoo, cosmetic bottles
  • Pharmaceutical: Medicine bottles and supplement containers requiring precision
  • Chemical & Industrial: Lubricant, pesticide, chemical reagent containers
  • Home Use: Plastic jugs, storage containers
  • Medical: Disinfectant and medical spray bottles
  • Custom Packaging: Prototype designs and brand-specific bottle shapes
Customization Options
MEPER offers customized services for the Automatic Blow Moulding Machine (model MP75FD), CE and ISO9001:2008 certified. Features include:
  • Double layer design for high barrier bottles
  • 80mm screw diameter with electric riven type
  • In Mold Labeling (IML) capability
  • Minimum order quantity: 1 set
  • Supply capacity: 100 sets/month
  • Delivery: 25-35 work days with export packaging
  • Flexible payment terms (L/C, T/T)
