1 Automatic Blow Moulding Machine MEPER 80FD

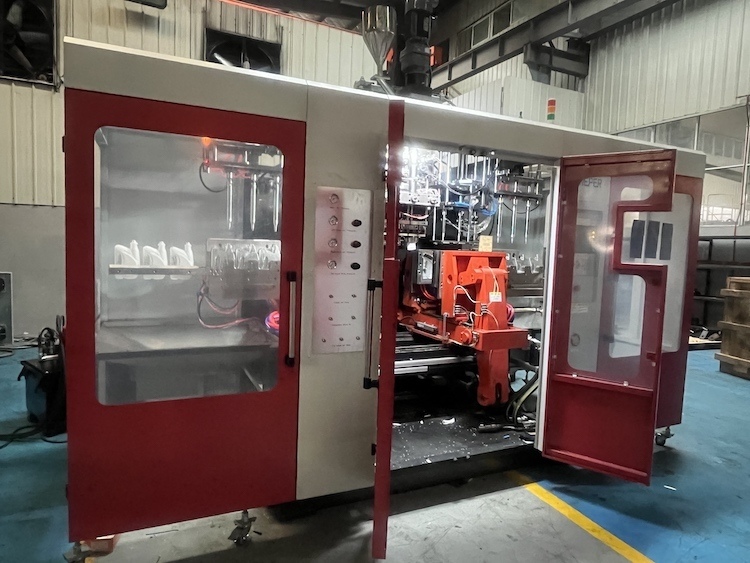

Large Image : 1 Automatic Blow Moulding Machine MEPER 80FD

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP75FD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Price Negotiation.
Packaging Details:	Standard Export Package
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Screw Heating Capacity:	6kw	Warranty Time:	1 Year
Layer Design:	Double Layer Design	Sutiable:	0-5L Bottle
Iml:	In Mold Labeling	Applicable Material:	HDPE LDPE PP
Feature:	High Barrier Bottles	Die Head Number:	1/2/3/4
Highlight:	automatic blow moulding machine MEPER 80FD , industrial blow moulding machine with warranty , MEPER 80FD plastic moulding machine

1 Automatic Blow Moulding Machine MEPER 80FD

Product Description

An Automatic Blow Moulding Machine is industrial equipment designed for producing hollow plastic items such as bottles, jars, tanks, and similar containers. The process involves heating plastic material until pliable, then using compressed air to expand it into the shape of the surrounding mould. This method enables efficient, precise manufacturing of hollow plastic products, making it essential in the plastics industry.

Key Features

Fully Automatic Operation: Automated preform loading, heating, blowing, and ejection processes reduce labor costs and improve consistency.
High Production Capacity: Multi-cavity design (2-12 cavities) produces 1,000-20,000 bottles/hour for medium to large-scale operations.
Consistent Quality: Precise controls ensure uniform wall thickness, excellent clarity, and improved strength with minimal defects.
Energy Efficient: Infrared heating system and servo-driven components reduce power consumption while maintaining performance.
Versatile Production: Quick mould-switching accommodates beverage bottles, oil containers, cosmetic bottles, and pharmaceutical containers.
User-Friendly Operation: PLC touchscreen interface with error diagnosis and automatic alarms for minimal downtime.
Wide Material Compatibility: Processes PET, HDPE, and PP for various applications including food, chemical, and medical packaging.
24/7 Operation: Designed for continuous production with seamless integration into filling and packaging lines.

Technical Specifications

80FDE-4S(100) Specifications
MAX CONTAINER CAPACITY	L	500ML
NUMBER OF DIE	set	4
MACHINE DIMENSION (LxWxH)	M	3.82x4x2.5
TOTAL WEIGHT	ton	8.6
Clamping Unit
CLAMPING FORCE	kN	120
PLATEN OPENING	mm	240-600
TOGGLE STROKE	mm	540
MAX MOULD SIZE (WxH)	mm	480x500
Extruder Unit
SCREW DIAMETER	mm	75
SCREW L/D RATIO	L/D	24
PLASTICIZING CAPACITY (HDPE)	Kg/h	85
SCREW HEATING ZONE	zone	3
SCREW HEATING POWER	kW	15.3
FAN POWER	kW	0.14
EXTRUDER MOTOR POWER	kW	22
Energy Consumption
TOTAL POWER OF MACHINE	kW	72
POWER OF OIL PUMP MOTOR	kW	15
AIR PRESSURE	Mpa	0.6-0.8
CONSUMPTION COMPRESSION AIR	m3/min	1.5
CONSUMPTION COOLING WATER	m3/min	0.4

Applications

Beverage Packaging: Water, juice, carbonated drink bottles
Food Packaging: Oil, vinegar, dairy, and condiment containers
Household & Personal Care: Detergent, shampoo, cosmetic bottles
Pharmaceutical: Medicine and supplement containers
Chemical & Industrial: Lubricant, pesticide, chemical drums
Home Products: Plastic toys, jugs, storage containers
Medical: Disinfectant and medical spray bottles
Custom Packaging: Prototype and premium cosmetic bottles

Customization Options

The MEPER MP75FD model offers customization with 1-4 die head configurations for producing various containers, including jerry cans. Compatible with HDPE, LDPE, and PP materials, this CE and ISO9001:2008 certified machine features electric-driven operation for precision. Standard export packaging ensures safe delivery within 25-35 work days, with flexible payment terms (L/C, T/T). Production capacity reaches 100 sets/month with negotiable pricing.
