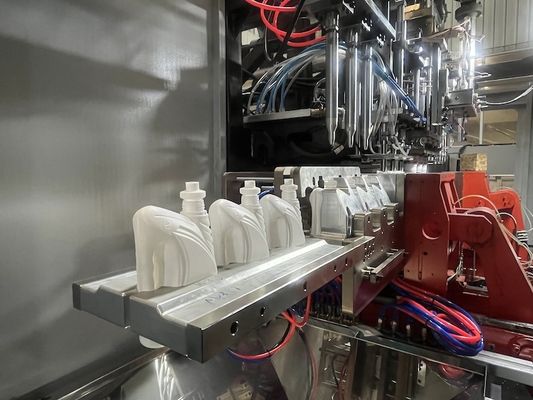

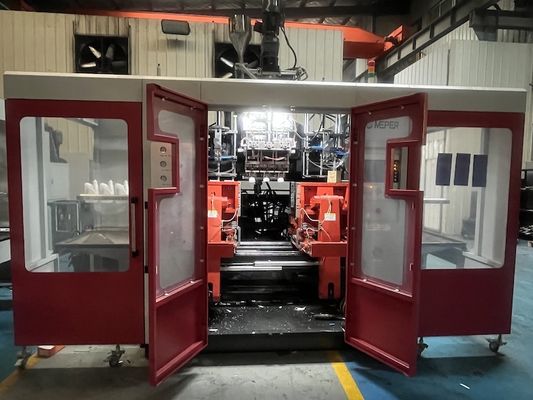

80mm Screw Diameter Fully Automatic Blow Moulding Machine Double Layer Design for Products

80mm Screw Diameter Fully Automatic Blow Moulding Machine Double Layer Design for Products
80mm Screw Diameter Fully Automatic Blow Moulding Machine Double Layer Design for Products 80mm Screw Diameter Fully Automatic Blow Moulding Machine Double Layer Design for Products

Large Image :  80mm Screw Diameter Fully Automatic Blow Moulding Machine Double Layer Design for Products

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP75FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Price Negotiation.
Packaging Details: Standard Export Package
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Riven Type: Electric Iml: In Mold Labeling
Warranty Time: 1 Year Sizemain Machine: 360*220*236cm
Sutiable: 0-5L Bottle Screw Heating Capacity: 6kw
Applicable Material: HDPE LDPE PP Layer Design: Double Layer Design
Highlight:

80mm screw diameter blow moulding machine

,

fully automatic blow moulding machine double layer

,

automatic blow moulding machine for products

80mm Screw Diameter Fully Automatic Blow Moulding Machine Double Layer Design for Products
Product Overview
The Automatic Blow Moulding Machine is an industrial solution for producing high-quality hollow plastic products. This advanced equipment utilizes a heating and blowing process to create uniform containers such as bottles, jars, and tanks with precise wall thickness and durability.
Key Features
  • Fully Automatic Operation: Reduces labor costs with automated preform loading, heating, blowing, and bottle ejection processes
  • High Production Capacity: Multi-cavity design (2-12 cavities) produces 1,000-20,000 bottles/hour
  • Consistent Quality: Precise control of heating temperature, stretch ratio, and blowing pressure ensures uniform wall thickness
  • Energy Efficient: Infrared heating system and servo-driven components minimize power consumption
  • Quick Mould Change: Rapid transitions between different product molds for versatile production
  • User-Friendly Interface: PLC touchscreen with error diagnosis and automatic alarm system
  • 24/7 Operation: Designed for continuous production and integration with filling/labeling lines
Technical Specifications
Model: 80FDE-4S(100)
Max Container Capacity: 500ML
Number of Die: 4 set
Machine Dimensions: 3.82x4x2.5 M
Total Weight: 8.6 ton
Clamping Force: 120 kN
Screw Diameter: 75 mm
Total Power: 72 kW
Applications
Beverage Packaging: Water bottles, juice containers, carbonated drink bottles
Food Packaging: Edible oil bottles, dairy containers, seasoning bottles
Household Products: Detergent bottles, shampoo containers, cosmetic bottles
Pharmaceutical: Medicine bottles, supplement containers, liquid medicine bottles
Industrial: Lubricant containers, chemical drums, pesticide bottles
Custom Packaging: Prototype designs, premium cosmetic bottles, brand-specific containers
Customization Options
Brand: MEPER | Model: MP75FD | Certification: CE/ISO9001:2008
Materials: HDPE, LDPE, PP | Layer Design: Double Layer
Capacity: 0-5 liter bottles | IML Technology: Available for enhanced decoration
Production Capacity: 100 sets/month | Delivery: 25-35 work days
