Product Description:

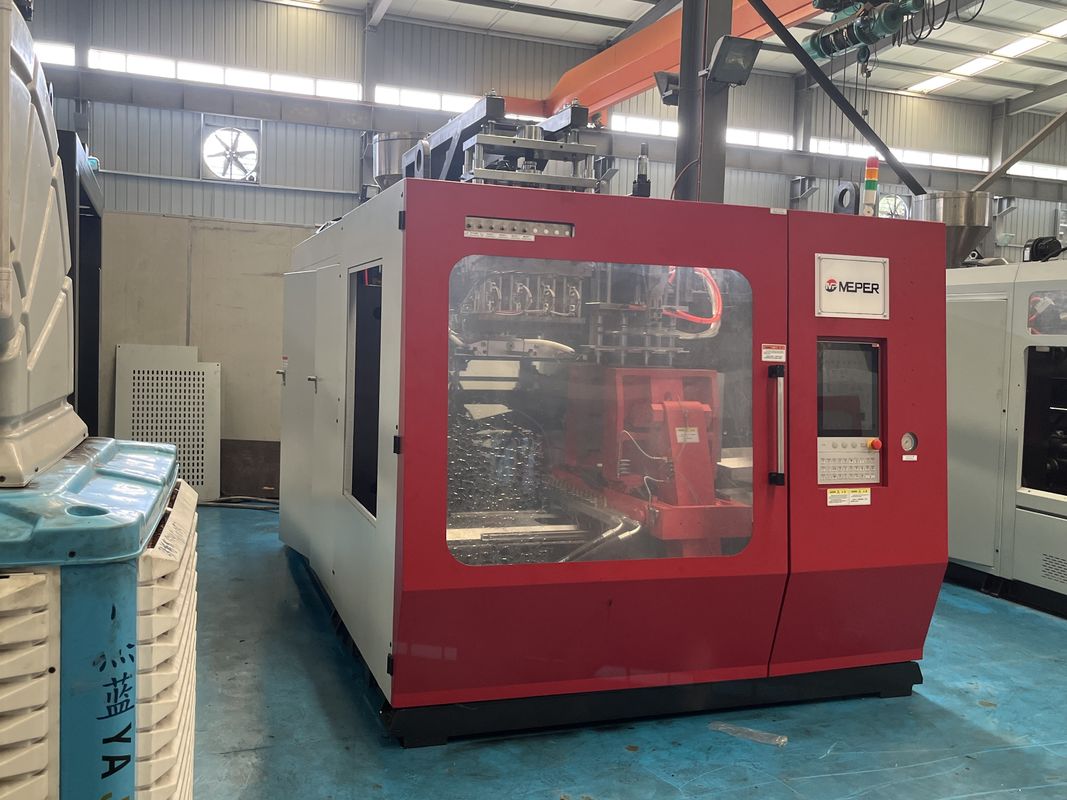

The MP plastic blow molding machine is specifically designed for the processing of diverse plastic hollow products with high molecular weight. It is an ideal solution for the production of hollow products with a capacity range between 5 milliliters and 100 liters. The applications of this machine are versatile and can include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
The MP plastic blow molding machine is highly efficient and versatile. It can be used to process various materials such as PE, PP, PVC, PA, PC, PS, and EVA while providing perfect process control and accuracy. With a wide range of applications, this blow molding machine is a valuable asset for businesses across various industries.
Whether you are in the toy manufacturing industry, or you deal with auto parts, furniture, or other plastic products manufacturing, the MP plastic blow molding machine is an excellent choice. The machine is efficient, precise, reliable, and capable of producing high-quality plastic products that meet your specific needs.
Features:
a) The extruding device is equipped with a variable frequency motor to meet the changing rotation requirements of the screw during the blowing process. This device can process various materials using a screw with a high slenderness ratio, which offers strong plasticizing ability, high production efficiency, and low energy consumption. The barrel is equipped with a resistance heater that is computer-controlled for quick, stable, and uniform heating.
b) The combined extrusion system between two extrusion machines can produce products with view strip line or double layers by installing different heads.
c) The mould clamping device utilizes vertical compression, three pilot posts, a big beam arm, a linear guider, a cylinder spindle, and double working positions to ensure fast and stable mould movements.
d) The hydraulic oil loop design has been improved to provide power-saving, quick, and stable operation.
e) The hydraulic elements are easy to install and maintain, and are equipped with a removable and mobilizable oil tank.
f) The automatic computer control system, with double proportional control for the hydraulic system, includes automatic fault alarms, is highly reliable, fully automated, and can store up to 40 mould data sets.
g) Three operation modes "Manual," "Semi Auto," and "Full Auto" are available for selection.
h) The safety door is equipped with electric and mechanical safety devices, preventing mould closing when the door is open, providing a safe and reliable operation.
i) This machine has two blowing functions, straight cutting and oblique cutting.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
1,2,3,4 |
| Number of heads |
SET |
4 |
|
Machine dimension
(LxWxH)
|
M |
3.6X2.2X2.36 |
| Machine weight |
TON |
5.5 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
75 |
| Platen opening strokes |
MM |
180-480 |
| Plate stroke |
MM |
450 |
| Max mould sizes(WxH) |
MM |
430X470 |
| |
|
Extrusion system
|
Screw diameter |
MM |
70 |
55 |
| Screw slenderness ratio |
L/D |
24 |
24 |
| Plasticizing ability (HDPE) |
KG/H |
70 |
45 |
| Screw heating stage/zone |
Zone |
3 |
3 |
| Screw heating power |
KW |
12 |
6.45 |
| Screw fan power |
KW |
0.28 |
0.28 |
| Extrusion motor power |
KW |
18.5 |
11 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.5 |
| |
|
Energy consumption
|
Total machine power |
KW |
80 |
| Oil motor power |
KW |
11 |
| Air pressure |
MPA |
0.6-0.8 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
40 |
Applications:
The Automatic Blow Moulding Machine is perfect for bottle blow molding, making it a popular choice for businesses that manufacture bottles such as water bottles, juice bottles, and cosmetic bottles. The 4 cavity blow moulding machine can produce up to 4000 bottles per hour, making it a highly efficient and cost-effective solution for high volume production. It is also suitable for the production of 5 gallon blow molding machine.
The Automatic Blow Moulding Machine is designed for use with HDPE, LDPE, and PP materials, making it a versatile option for businesses that need to produce different types of products. The machine uses extrusion blow molding technology, which is a highly efficient and reliable method for producing high-quality products. The extrusion blow moulding process is ideal for creating hollow products with complex shapes and features, making it a popular choice for businesses that need to produce custom products.
The MEPER Automatic Blow Moulding Machine 70d comes with a 1-year warranty, ensuring that it is a reliable and durable machine that will provide businesses with years of use. The machine is also highly customizable, allowing businesses to tailor it to their specific needs and requirements. It is supplied in a standard export package and has a delivery time of 25-35 work days. Payment terms include L/C and T/T. The machine has a supply ability of 100 sets per month, making it easily accessible to businesses of all sizes.
Customization:
MEPER Automatic Blow Moulding Machine is a top-of-the-line blow molding equipment that is perfect for your packaging needs. With its model number 70d and made in China, it boasts of CE/ISO9001:2008 certification, ensuring quality and reliability.
Our minimum order quantity is 1 set and the price is negotiable. The machine comes in a standard export package and has a delivery time of 25-35 work days. Payment terms include L/C and T/T, and our supply ability is up to 100 sets per month.
This Extrusion Blow Molding Machine has a 4 cavity blow moulding machine, perfect for producing milk bottle packing bottles. The color of the machine can be customized to fit your preference.
Invest in our bottle blow molding machine for efficient and high-quality production.
Support and Services:
The Automatic Blow Moulding Machine is a complex piece of machinery that requires technical support and services to ensure optimal performance. Our team of experienced technicians is available to assist with any technical issues that may arise during operation. We offer regular maintenance services to keep the machine running smoothly and prevent any potential breakdowns. In addition, we provide training and consulting services for our clients to ensure they are able to operate the machine effectively and efficiently. Our goal is to provide comprehensive support to our customers and ensure they have a positive experience with our product.
Packing and Shipping:
Product Packaging:
- The automatic blow moulding machine will be packed in a sturdy wooden crate to ensure safe transportation.
- The crate will be sealed and labeled with the product name, model number, and other necessary information.
- Inside the crate, the machine will be securely fastened and protected with foam and other cushioning materials.
Shipping:
- We will arrange for shipping of the machine via a reputable carrier.
- Shipping costs will be calculated based on the destination and weight of the package.
- Customers will be provided with a tracking number to monitor the delivery status of their order.
- Please note that shipping times may vary depending on the destination and other factors beyond our control.
FAQ:
Q: What is the brand name of this automatic blow moulding machine?
A: The brand name of this machine is MEPER.
Q: What is the model number of this machine?
A: The model number of this machine is 70d.
Q: Where is this machine manufactured?
A: This machine is manufactured in China.
Q: What are the certifications for this machine?
A: This machine has CE and ISO9001:2008 certifications.
Q: What is the minimum order quantity for this machine?
A: The minimum order quantity for this machine is 1 set.
Q: What is the price of this machine?
A: The price of this machine is negotiable.
Q: What are the packaging details for this machine?
A: The packaging details for this machine are standard export package.
Q: What is the delivery time for this machine?
A: The delivery time for this machine is 25-35 work days.
Q: What are the payment terms for this machine?
A: The payment terms for this machine are L/C and T/T.
Q: What is the supply ability of this machine?
A: The supply ability of this machine is 100 sets per month.
