Product Description:
.
Features:
The extruding device has a variable frequency motor which can adjust the rotation of the screw during the blowing process to meet the requirements. The screw has a big slenderness ratio which allows for processing many different materials with strong plasticizing ability. Furthermore, it has high production and low energy consumption. The barrel uses a resistance heater controlled by a computer to heat quickly, stably and equably.
The combined extrusion system between two extrusion machines allows for the installation of different heads to blow products with view strip lines or double layers.
The mould clamping device adopts vertical compression, three pilot posts, a big beam, linear guider, cylinder spindle and double working position, providing fast and stable movement for the mould.
With the improved design of the hydraulic oil loop, this machine is power saving, rapid and stable. In addition, the installation and maintenance of hydraulic elements are convenient, and it is equipped with a removable and mobilizable oil tank.
The entire machine is controlled by a computer, with the hydraulic system adopting double proportional control. This machine has a fault automatic alarm, is reliable to operate, and has a high automation level with data memory for up to 40 sets of moulds.
The machine has three operation modes, which include "Manual," "Semi Auto," and "Full Auto."
The safety door utilizes electric and mechanical safety devices to ensure the operation is reliable and safe, preventing any mould closing from occurring when the safety door is open. Furthermore, this machine has two blowing functions of straight cutting and oblique cutting.
Technical Specifications
- Extruding device: variable frequency motor
- Screw: big slenderness ratio for processing many different materials
- Barrel: resistance heater
- Combined extrusion system: different head for view strip lines or double layers
- Mould clamping device: vertical compression, three pilot posts, big beam, linear guider, cylinder spindle, and double working position
- Hydraulic oil loop: improved design for power saving, rapid and stable operation
- Hydraulic elements: convenient installation and maintenance, with a removable and mobilizable oil tank
- Computer control: with hydraulic system adopting double proportional control
- Safety door: electric and mechanical safety device
- Blowing functions: straight cutting and oblique cutting
Technical Parameters:
|
technical parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1,2,3,4 |
|
Machine dimension
(LxWxH)
|
M |
4x2.3x2.5 |
| Machine weight |
TON |
8.2 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
220-620 |
| Plate stroke |
MM |
540 |
| Max mould sizes(WxH) |
MM |
520x460 |
| |
|
Extrusion system
|
Screw diameter |
MM |
80 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
15.85 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
30 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
3 |
| Head heating power |
KW |
10 |
| |
|
Energy consumption
|
Total machine power |
KW |
80 |
| Oil motor power |
KW |
18.7 |
| Air pressure |
MPA |
0.6-0.8 |
| Compression air volume |
M3/min |
1.5 |
| Cooling water volume |
L/min |
40 |
|
Applications:

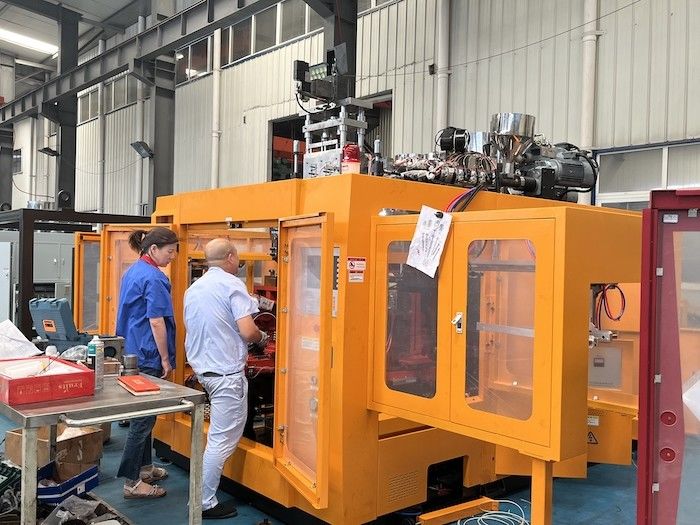

The MEPER Automatic Blow Moulding Machine is equipped with a toggle-type clamping system, which ensures smooth and stable operation. The machine uses extrusion blow molding technology, which is ideal for producing high-quality, seamless plastic products. The machine is customizable in color to suit the specific needs and preferences of the clients.
The MEPER Automatic Blow Moulding Machine is an excellent investment for businesses that require a reliable and efficient machine for their production needs. The machine has a minimum order quantity of 1 set and a supply ability of 100 sets per month. The price is negotiable and comes with standard export packaging. The delivery time is estimated at 25-35 work days, and the payment terms are L/C and T/T. The machine comes with a 1-year warranty.
The MEPER Automatic Blow Moulding Machine is suitable for a wide range of applications, including the production of milk bottles, juice bottles, cosmetic bottles, pharmaceutical bottles, and many more. The machine is designed to handle HDPE, LDPE, and PP materials, making it a versatile and flexible solution for various industries.
The MEPER Automatic Blow Moulding Machine is perfect for use in factories, production plants, and other manufacturing facilities. Its efficient and user-friendly design makes it easy to operate and maintain, ensuring maximum productivity and minimum downtime.
Support and Services:
The Automatic Blow Moulding Machine is a complex piece of equipment that requires technical expertise to operate and maintain. Our product technical support and services include:
- Installation and setup assistance
- On-site training for operators and maintenance personnel
- 24/7 technical support hotline for immediate assistance
- Regular maintenance and inspection services
- Repair services and spare parts replacement
Our team of experienced technicians and engineers are dedicated to ensuring the optimal performance and longevity of your Automatic Blow Moulding Machine. Contact us for more information or to schedule a service appointment.
Packing and Shipping:
Product Packaging:
- Machine is securely packed in a wooden crate to prevent damage during transportation
- All parts and accessories are properly wrapped and labeled for easy identification
- User manual and installation guide included in the package
Shipping:
- Shipping is arranged by the manufacturer or distributor
- Delivery time varies depending on the location and shipping method chosen
- Tracking information is provided once the product is shipped
FAQ:
Q: What is the brand name of the Automatic Blow Moulding Machine?
A: The brand name of the Automatic Blow Moulding Machine is MEPER.
Q: What is the model number of the Automatic Blow Moulding Machine?
A: The model number of the Automatic Blow Moulding Machine is 80D.
Q: Where is the Automatic Blow Moulding Machine made?
A: The Automatic Blow Moulding Machine is made in China.
Q: What certifications does the Automatic Blow Moulding Machine have?
A: The Automatic Blow Moulding Machine has CE and ISO9001:2008 certifications.
Q: What is the minimum order quantity for the Automatic Blow Moulding Machine?
A: The minimum order quantity for the Automatic Blow Moulding Machine is 1 set.
Q: What is the price of the Automatic Blow Moulding Machine?
A: The price of the Automatic Blow Moulding Machine is negotiable.
Q: What are the packaging details for the Automatic Blow Moulding Machine?
A: The Automatic Blow Moulding Machine comes in a standard export package.
Q: What is the delivery time for the Automatic Blow Moulding Machine?
A: The delivery time for the Automatic Blow Moulding Machine is 25-35 work days.
Q: What are the payment terms for the Automatic Blow Moulding Machine?
A: The payment terms for the Automatic Blow Moulding Machine are L/C and T/T.
Q: What is the supply ability of the Automatic Blow Moulding Machine?
A: The supply ability of the Automatic Blow Moulding Machine is 100 sets per month.
