Product Details:
Payment & Shipping Terms:
|
| Blow Molding Type: | Extrusion Blow Molding Machine | Blow Moulding Type: | Extrusion Blow Moulding |
|---|---|---|---|
| Applicable Material: | HDPE LDPE PP | Contactor: | Schneider |
| Warranty Time: | 1 Year | Operation: | Automatic |
| Product: | Milk Bottle Packing Bottle | Clamping System: | Toggle Type Clamping System |
| Highlight: | LDPE Extrusion Blow Molding Machine,HDPE Extrusion Blow Molding Machine,PP Extrusion Blow Molding Machine |
||

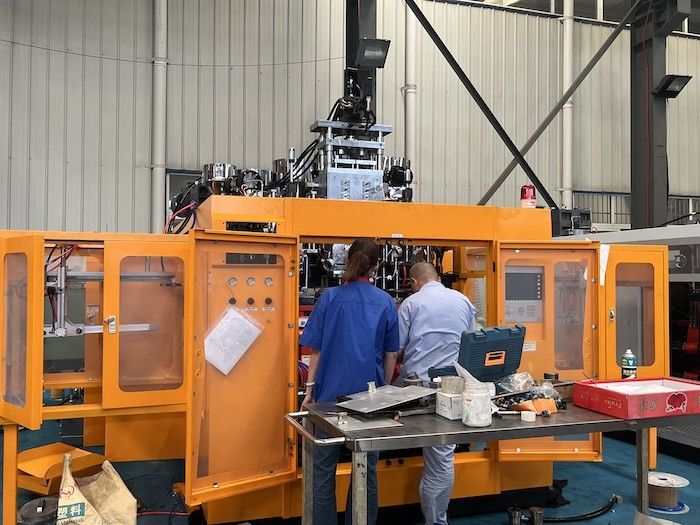

The MP plastic blow molding machine is designed specifically for processing plastic hollow products that are of high molecule. This machine is capable of producing hollow products ranging from 5 milliliters to 100 liters. The types of plastic products include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts.
Not only can the MP plastic blow molding machine blow different types of materials such as PE, PP, PVC, PA, PC, PS, and EVA, it also provides the perfect process for molding these materials. This makes the machine highly versatile and suitable for a wide range of applications.
The extruding device in this machine is equipped with a variable frequency motor that is capable of rotating the screw in accordance with the blowing process. The screw, with a high slenderness ratio, is capable of processing various kinds of materials and has a strong plasticizing ability, resulting in high production with low energy consumption. Additionally, the barrel of this device is equipped with a resistance heater controlled by a computer, allowing for quick, stable, and even heating.
This machine has the ability to blow products with a view strip line or double layers due to the installation of a different head in a combined extrusion system between two extrusion machines. In order to achieve this, the mould clamping device adopts vertical compression, three pilot posts, big beam arms, and linear guiders, which allows for quick and stable movement of the mould.
The hydraulic oil loop of this machine has been improved, resulting in power-saving, rapid, and stable operation. Additionally, the installation and maintenance of hydraulic elements is convenient due to the presence of a removable and mobilizable oil tank. The entire machine is controlled by a computer, and the hydraulic system adopts double proportional control, making this machine reliable and highly automated.
There are three operation modes available for this machine – “Manual”, “Semi Auto”, and “Full Auto”. Furthermore, the safety door of this machine is equipped with both electric and mechanical safety devices. This ensures that there is no mould closing when the safety door opens, making the operation safe and reliable. Lastly, this machine has two blowing functions – straight cutting and oblique cutting.
technical parameters
| System | Item | Unit | Basic Parameter |
|
Basic specifications
|
Applicable materials | PE PP PVC PA… | |
| Max product volume | L | 10 | |
| Number of heads | SET | 1,2,3,4 | |
|
Machine dimension (LxWxH) |
M | 4x2.3x2.5 | |
| Machine weight | TON | 8.2 | |
|
Mould clamping system |
Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 220-620 | |
| Plate stroke | MM | 540 | |
| Max mould sizes(WxH) | MM | 520x460 | |
|
Extrusion system
|
Screw diameter | MM | 80 |
| Screw slenderness ratio | L/D | 24 | |
| Plasticizing ability (HDPE) | KG/H | 90 | |
| Screw heating stage/zone | Zone | 4 | |
| Screw heating power | KW | 15.85 | |
| Screw fan power | KW | 0.28 | |
| Extrusion motor power | KW | 30 | |
|
Head |
Head heating stage/zone | Zone | 3 |
| Head heating power | KW | 10 | |
|
Energy consumption |
Total machine power | KW | 80 |
| Oil motor power | KW | 18.7 | |
| Air pressure | MPA | 0.6-0.8 | |
| Compression air volume | M3/min | 1.5 | |
| Cooling water volume | L/min | 40 | |
The Automatic Blow Moulding Machine is a high-performance equipment used for manufacturing plastic bottles, jars, and containers of various sizes and shapes. Our product technical support team provides comprehensive assistance and guidance to ensure that the machine operates at maximum efficiency and productivity. Our services include:
Our experienced and skilled technicians are available to provide on-site support and training, as well as remote assistance through phone, email, or video conferencing. We are committed to delivering high-quality technical support and services to ensure that our customers achieve optimal performance and efficiency from their Automatic Blow Moulding Machine.
Product Packaging:
The Automatic Blow Moulding Machine is packaged securely in a sturdy wooden crate to ensure safe transportation and delivery. The crate is lined with foam padding to protect the machine during transit. The package dimensions are 350 cm x 200 cm x 230 cm and the total weight is approximately 2000 kg.
Shipping:
The Automatic Blow Moulding Machine will be shipped via sea freight and the delivery time will depend on the destination port. Shipping costs will vary depending on the location and can be provided upon request. We will provide all necessary shipping documents and assist with customs clearance if needed.
Q: What is the brand name of this blow moulding machine?
A: The brand name of this machine is MEPER.
Q: What is the model number of this blow moulding machine?
A: The model number of this machine is 80D.
Q: Where is this blow moulding machine manufactured?
A: This machine is manufactured in China.
Q: Does this blow moulding machine have any certifications?
A: Yes, this machine is CE/ISO9001:2008 certified.
Q: What is the minimum order quantity for this blow moulding machine?
A: The minimum order quantity for this machine is 1 set.
Q: What is the price of this blow moulding machine?
A: The price of this machine is negotiable.
Q: What are the packaging details for this blow moulding machine?
A: The machine is packaged in a standard export package.
Q: How long is the delivery time for this blow moulding machine?
A: The delivery time for this machine is 25-35 work days.
Q: What are the payment terms for this blow moulding machine?
A: The payment terms for this machine are L/C and T/T.
Q: What is the supply ability of this blow moulding machine?
A: The supply ability of this machine is 100 sets per month.
