Product Description:

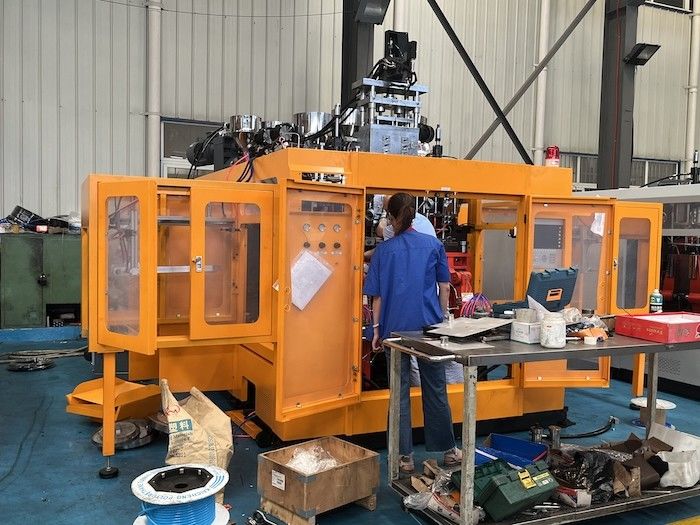

About MP Plastic Blow Molding Machine
The MP plastic blow molding machine is specifically designed to process various types of plastic hollow products with high molecular weight. It is equipped to handle the production of hollow products ranging from 5 milliliters to 100 liters. This machine is highly versatile and can produce a wide range of products like bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and even auto parts.
Using this machine, you can blow different types of materials such as PE, PP, PVC, PA, PC, PS, and EVA. Not only is it capable of working with various materials, but it also provides a perfect process for each one. This makes it an extremely efficient machine for industrial-grade plastic blow molding.
Features:
The extruding device is equipped with a variable frequency motor to meet the requirements of changing screw rotation during the blowing process. A screw with a high slenderness ratio can handle various materials, and it has high plasticizing ability with low energy consumption, resulting in high production. Additionally, the barrel is heated with a computer-controlled resistance heater, which warms the barrel quickly and evenly.
This combined extrusion system has the capability to blow products with a view strip line or double layers by installing different heads between two extrusion machines.
For the mold clamping device, vertical compression, three pilot posts, big beam arms, linear guiders, cylinder spindles, and double working positions are implemented, allowing for fast and stable mold movements.
The hydraulic oil loop has an improved design for power saving, rapid movement, and stability. Furthermore, hydraulic elements can be easily installed and maintained, and the machine is equipped with a removable and mobilizable oil tank.
Controlled by a computer, the hydraulic system has double proportional control. The machine has a fault automatic alarm, operates reliably, and has high automation with data memory for up to 40 sets of molds.
The machine provides three operation modes: "Manual," "Semi Auto," and "Full Auto" to choose from. Safety doors are equipped with electric and mechanical safety devices to ensure safe and reliable operation, which avoids mold closing when the safety door is open. Lastly, this machine has two blowing functions of straight and oblique cutting.
Technical Parameters:
technical parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1,2,3,4 |
|
Machine dimension
(LxWxH)
|
M |
4x2.3x2.5 |
| Machine weight |
TON |
8.2 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
220-620 |
| Plate stroke |
MM |
540 |
| Max mould sizes(WxH) |
MM |
520x460 |
| |
|
Extrusion system
|
Screw diameter |
MM |
80 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
15.85 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
30 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
3 |
| Head heating power |
KW |
10 |
| |
|
Energy consumption
|
Total machine power |
KW |
80 |
| Oil motor power |
KW |
18.7 |
| Air pressure |
MPA |
0.6-0.8 |
| Compression air volume |
M3/min |
1.5 |
| Cooling water volume |
L/min |
40 |
Applications:
Whether you need to produce high-quality water bottles or custom plastic products, this machine is perfect for all your needs. Its extrusion blow molding type allows for precise and efficient plastic molding, while its toggle type clamping system ensures that the molds remain stable and secure during the molding process.
The MEPER 80D Automatic Blow Moulding Machine comes with 4 cavities, allowing for the simultaneous production of up to 4 products at the same time. This makes it perfect for high-volume production, reducing production time and increasing efficiency.
This machine is equipped with Schneider contactors, ensuring that it is safe and reliable to use. Additionally, its customizable color and standard export packaging make it perfect for any production environment.
With a minimum order quantity of just 1 set and a supply ability of up to 100 sets per month, this machine is perfect for both small and large scale production facilities. Pricing is negotiable, and delivery time is typically between 25-35 work days from the date of order.
Whether you're producing water bottles, 5-gallon water bottles or custom plastic products, the MEPER 80D Automatic Blow Moulding Machine is the perfect solution for all your blow molding needs.
Support and Services:
The Automatic Blow Moulding Machine is designed to produce high-quality PET bottles with a capacity of up to 2 liters. Our technical support and services team is available to help you with any issues you may encounter during installation, operation, or maintenance of the machine.
Our services include:
- Installation and commissioning of the machine
- Training for operators and maintenance personnel
- Regular maintenance and servicing
- Supply of spare parts
- Technical support via phone or email
- On-site support for critical issues
We understand the importance of keeping your production line running smoothly and efficiently. That's why we offer comprehensive technical support and services to ensure that your Automatic Blow Moulding Machine is always functioning at its best.
Packing and Shipping:
Product Packaging:
- 1 Automatic Blow Moulding Machine
- 1 Control Panel
- 1 Air Compressor
- 1 Cooling System
- 1 Set of Spare Parts
- User Manual and Installation Guide
Shipping Information:
- Shipping Weight: 1500 kg
- Shipping Dimensions: 4m x 2m x 2.5m
- Shipping Method: Sea Freight
- Shipping Time: 30-45 days
FAQ:
Q: What is the brand name of this Automatic Blow Moulding Machine?
A: The brand name of this machine is MEPER.
Q: What is the model number of this Automatic Blow Moulding Machine?
A: The model number of this machine is 80D.
Q: Where is this Automatic Blow Moulding Machine manufactured?
A: This machine is manufactured in China.
Q: Is this Automatic Blow Moulding Machine certified?
A: Yes, this machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for this Automatic Blow Moulding Machine?
A: The minimum order quantity for this machine is 1 set.
Q: What is the delivery time for this Automatic Blow Moulding Machine?
A: The delivery time for this machine is 25-35 work days.
Q: What are the payment terms for this Automatic Blow Moulding Machine?
A: The payment terms for this machine are L/C and T/T.
Q: What is the supply ability for this Automatic Blow Moulding Machine?
A: The supply ability for this machine is 100 sets per month.
Q: What is the price of this Automatic Blow Moulding Machine?
A: The price for this machine is available for negotiation.
Q: How is this Automatic Blow Moulding Machine packaged?
A: This machine is packaged in a standard export package.
