Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing

Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing
Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing

Large Image :  Defleshing IML Automatic Plastic Blow Moulding Machine With Oblique Blowing

Product Details:
Place of Origin: CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP80FS&IML
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation
Packaging Details: Standard export package wooden pallet(standard) wooden case(optional)
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
View Strip: Yes Defleshing System: Yes
Blow Way: Oblique Blowing IML System: Yes
Product: Household Chemical Bottle MOOG System: Yes
Highlight:

extrusion blow molding machine

,

water bottle blow molding machine

Defleshing IML Automatic Blow Molding Machine with oblique blowing for household chemical bottle



Brief introduction

MP80FS series is high productivity, longevity and wear resistancy



Brief introduction

Hydraulic system design extusion blow molding machine MP80 is suitable for Producing Medium Size Bottles up to 10L of Various Materials, and Equipped with Single Die Head, Double Die Heads, Three Die Heads, Four Die Heads,Six Die heads.

Adopt four leaders point support structure, it can accept heavy moulds. With parison control system ,it is especially to make bottles below 10 liter ,like toys, auto parts ....



Advantage:



1. Most important for a good EBM machine is the action system and the extrusion system.

we'r using powerful hydraulic system design with imported valve and pump for stable action

Adopt China famous brand Gearbox along with Delta extrusion motor ,make sure machine runs continiously,long life.



2. Heavy and stong structure,make sure machine works more faster and stable.



3. Special protection for the machine and people

Sensor in the operating door: if anybody enter the machine,the electricity conneced with the machine will automatic cut down.

Temperature interlock system:When the material inside the barrel is not reaching the setting temperature,the extrusion motor can never start.that will help the screw and head of the machine.



4. Special care for different countries.

we offer some special design for different countries,in order to matching best performance.



5. Easy die head dis-assemble and assemble



6. Defleshing function included





1L lubrication oil container automatic blow moulding machine / bottle blowing machine





Brief introduction:



Smallest machine to produce 1L engine oil bottle with or without view strip.

Double station,single head



Features :

  • Suitable for making plastic products from 5ml up to 2L.
  • Die Head is torpedo design with special flow channel for swift and complete mergence of plastic material inside and to provide better plasticized feature.
  • Single view strip head

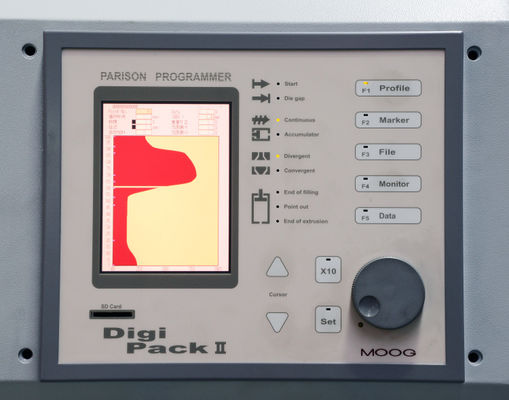

  • Parison thickness micro control system is optional for product best weight and quality control
  • Die Mouth Extrusion Adjustment by 4-point adjustment,parison to be straight and view strip width and position stable.
  • High-melting Screw design by 38CrMoali material,Bimentallic aolly material as optional for recycle material.
  • electric-heated Hot Cutter for cutting the parison with micro adjustment ,more accurate in blowing and reduce the scrap material percentage.
  • Blow Pin up down is driven by poweful hydraulic,micro adjustable to center the to be exactly twist cup-off neck flash.
  • Blow Pin Mandrel has the chill-water circulation up to the tip,fast shaping the bottle neck.
  • Linear carriage up down movement,more faster and stable
  • center lubrication system with self-detector manifoild,ensure the life of the mechnical parts
  • heavy structure,make the machine works more faster without any shake.
  • defleshing optional to remove up and buttom scrap material
  • scrap material convenyor is optional
  • adopt festo exhausted valve,endrable and faster
  • thick platen design to reduce the parting line of the products
  • copper bush using for all the toggle parts,less friction heat comes and longer life
  • Air filter for water and oil,protect the pheumatic cylinder
  • Techmation PLC ,easy operating with 8 language optional:ENGLISH,SPANISH,CHINESE,FRANCE,RUSSIAN,TURKISH,PORTUGUESE



Machine specification:

Parameters MP80FS
Material PE PP PVC PA…
Max container capacity 10L
Number of die 1,2,3,4,6
Machine Dimension(LxWxH) 3.7x4.7x2.9m
Total weight 10.5ton
Clamping force 200kN
Platen openning stokes 240-560mm
Toggle stokes 800mm
Max mould size(WxH) 750x420mm
Screw diameter 80mm
Screw L/D ratio 24 L/D
(HDPE) Plasticizing capacity 108kg/h
Screw heating zone 4 zone
Screw heating power 15.6kw
Screw fan power 0.14kw
Extrusion motor power 30kw
Die head heating zone 12 zone
Power of die heating 17kw
Total power of machine 89kw
Power of oil pump motor 31kw
Air pressure 0.6-0.8 Mpa
Average energy consumption 60kw
Consumption compression air 1.5m³/min
Consumption cooling water 60L/min



Machine specification:



Defleshing system type:Push on top and bottom with air cooling system.
