Product Details:
Payment & Shipping Terms:
|
| Container Capacity: | Customize Size | Defleshing System: | Yes |
|---|---|---|---|
| Product: | Daily Chemical Bottle | IML System: | Yes |
| Speed: | High | MOOG System: | Yes |
| High Light: | extrusion blow molding machine,water bottle blow molding machine |
||

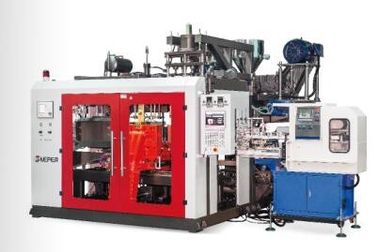

Single station toggle clamping system Extrusion Blow Molding Machine for daily chemical bottle
Brief introduction:
MP70FS is one of the most popular model for products below 5L
View strip optional
co-extrusion(multi-layer)optional
Double station or Single sation optional
Advantage:
1. adopt four position leader structure and supporting grider design, it is good at stability.
2. carriage moving design adopts tie-bar and linear guide,heavy and stong structure design make sure machine works more faster ,smooth and stable in fast cycle.
3. copper meatus connection between the platen and carriage, self-detector distribute installed,make sure machine lubrication system are in super good condition.
4. adopt double proportional valve in hydraulic system, it is high-efficiency in production and low vibration in pressure.
5. special protection for the machine and people
Sensor in the operating door: if anybody enter the machine,the electricity conneced with the machine will automatic cut down.
Temperature interlock system:When the material inside the barrel is not reaching the setting temperature,the extrusion motor can never start.that will help the screw and head of the machine.
6. easy die head dis-assemble and assemble
7. adopt and prefer to use seamless and stainless meatus in hydraulic connection design from valve mainifoild to oil cylinder. compare to pipes,it is more stable to avoid oil leakage.
Center distance introduction:
Double head standard Center distance:160mm (170,180,200mm as option)
Thriple head standard center distance:120mm(100,120,125,130mm as option)
Four head standard center distance:100mm(90mm as option)
Six head standard center distance:60,70mm
Mainly applicable field:
a) Pharmacy packing and cosmetic field:including madicin bottles, eyedrop bottles,cosmetic bottles.
b) Auto parts: air-contidional pipes,oil tank,water tank,hollow parts from the auto.
c) Food and beverage packing:beverage bottles(milk container,juice bottles ,jar)
d) Oil and chemical field: petrol jars,oil barrel,painting buckets other chemical packing and tray,cleanser bottles….
e) Toys: body of revise pens,gumwater bottles,sand beach balls,hollow toys(including stationary toys ,collection jars and big assembled slide ladder…..
f) Other applicable area:tool boxes,pesticide bottles,atomizer,bed bords, desk bords,basketball bord
Machine specification:
| Parameters | MP70FS |
| Material | PE PP PVC PA… |
| Max container capacity | 10L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 3.7x2.3x2.5m |
| Total weight | 8ton |
| Clamping force | 110kN |
| Platen openning stokes | 240-600mm |
| Toggle stokes | 520mm |
| Max mould size(WxH) | 500x400mm |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 75kg/h |
| Screw heating zone | 3 zone |
| Screw heating power | 12kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 22kw |
| Die head heating zone | 3 zone |
| Power of die heating | 9.1kw |
| Total power of machine | 58.2kw |
| Power of oil pump motor | 15kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 32kw |
| Consumption compression air | 1.5m³/min |
| Consumption cooling water | 50L/min |

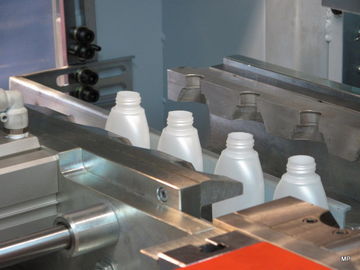

Defleshing system type:Push on top and bottom with air cooling system.
