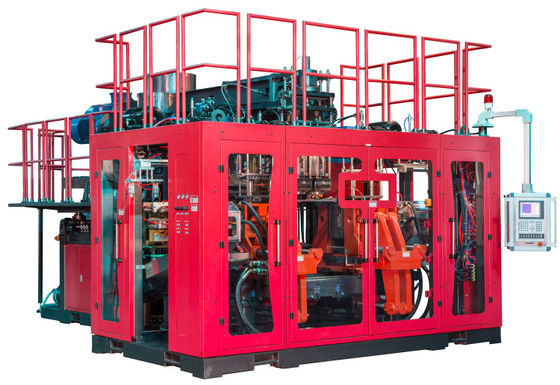

Meper HDPE 10L Chemical Tank Extrusion Blow Molding Machine With Parison MOOG System

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Meper HDPE 10L Chemical Tank Extrusion Blow Molding Machine With Parison MOOG System

Product Details:
Place of Origin: CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 ser
Price: Price negotiation
Packaging Details: Standard export package
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Container Capacity: 10L Applicable Material: HDPE LDPE PP
Prison System: MOOG Automatic: Yes
PLC: B&R Products: Chemical Tank
High Light:

plastic bottle blow molding machine

,

custom blow molding machine

HDPE Blow Molding Machine with parison MOOG system & auto deflashing system for 10L plastic chemical tank



Introduction:

MP100FD is specifically designed for making bottles from 100ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP100FD has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP90F is updated to be one of the most reliable and popular model in the world.



Mainly applicable field:10L chemical tank (without view strip)



Parameters MP100FD
Material PE PP PVC PA…
Max container capacity 10L
Number of die 1,2,3,4,6
Machine Dimension(LxWxH) 5.2x6.5x3.1m
Total weight 15ton
Clamping force 200kN
Platen openning stokes 240-640mm
Toggle stokes 720mm
Max mould size(WxH) 670x430mm
Screw diameter 100mm
Screw L/D ratio 26 L/D
(HDPE) Plasticizing capacity 218kg/h
Screw heating zone 4 zone
Screw heating power 17kw
Screw fan power 0.14kw
Extrusion motor power 55kw
Die head heating zone 10 zone
Power of die heating 12.8kw
Total power of machine 136kw
Power of oil pump motor 31kw
Air pressure 0.6-0.8 Mpa
Average energy consumption 95kw
Consumption compression air 3.2m³/min
Consumption cooling water 110L/min






Advantages:

EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY

Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.



CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY

All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.



CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM

MP-F Toggle series employs direct-acting clamping system transferring the forces directly to the middle of both of the platens. And it adopts high precision linear guides to provide accurate platen and station movements.



ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM

MP100FD is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.



Detailed Product Description


10L chemical tank HDPE Blow Molding Machine with up blow device parison thickness control robot take out



Brief introduction

MP100FD adopted accumulator die head are suitable for producing large and various plastic products, such as tool boxes, water tanks, beer drums, jerry cans, and automobile components.

multi-point parison controllers with lateral take-out mechanism. Machine frame and die head are movable for replacing molds easily,Flexiable for various container.





Meper HDPE 10L Chemical Tank Extrusion Blow Molding Machine With Parison MOOG System 0Meper HDPE 10L Chemical Tank Extrusion Blow Molding Machine With Parison MOOG System 1Meper HDPE 10L Chemical Tank Extrusion Blow Molding Machine With Parison MOOG System 2
