|Product:||Cosmetics Bottle||Applicable Material:||HDPE LDPE PP PETG PVC PC PA EVOH EPET|
|IML:||In Mold Labeling||Feature:||Faster Output|
|Multi Layer:||Yes||Multi Head:||Yes|
water bottle blow molding machine,
blow molding device
50ml-4L Extrusion Blow Moulding Machine MP70FS-3 IML In mold labeL for cosmetics bottle
MP70FS IML is specifically designed for making bottles from 600ml up to maximum 4L. It is hydraulic driven with accrate eletrical control system. MP70FS IML has single stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70FS IML is updated to be one of the most reliable and popular model in the world.
EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY

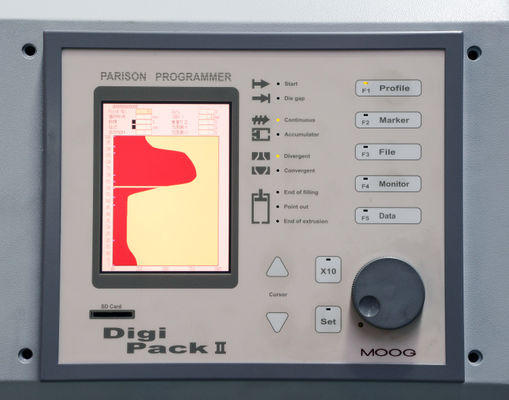

All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.
CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM
MP-F Toggle series employs direct-acting clamping system transferring the forces directly to the middle of both of the platens. And it adopts high precision linear guides to provide accurate platen and station movements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP55F is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
|Single station blow molder with horizontal linear mould shuttle|
|Linear mould stroke||A||520|
|Dry Cycle||7 sec.|
|Centre Distance||1x2 fold||160|
|Screw L/D Ratio||L/D||24||24||24|
|Extruder Inverter Power||kW||18.5||22||30|
|Extruder Moter Power||kW||18.5||22||30|
|Srew Heating Power||kW||12.7||14.4||15.85|
|Oil pump Motor Power||kW||15||15||15|
|Total Power of Machine||kW||49.14||54.34||63.79|
|Air Requirement approx||m3/min||1.2||1.2||1.2|
|Air Working Pressure||Mpa||0.6-0.8||0.6-0.8||0.6-0.8|
|Consumption Cooling Water||L/min||40||40||40|
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
