Product Overview

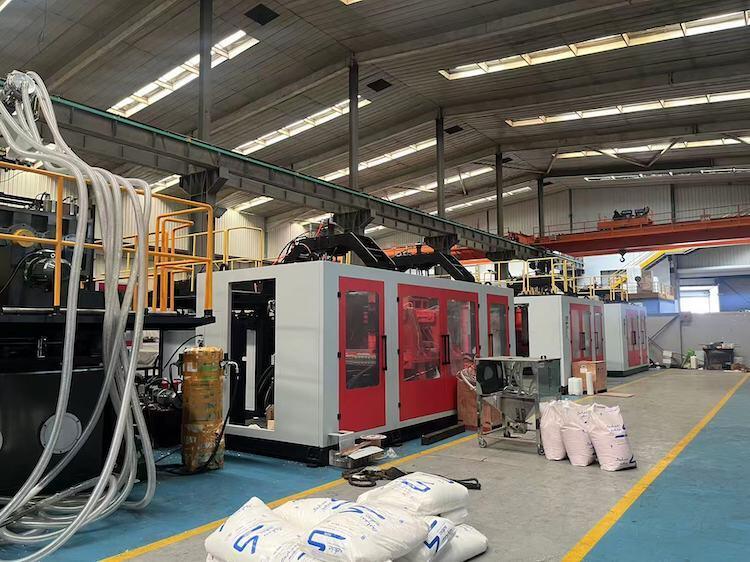

The 95FD High Plasticizing Extrusion Molding Machine with Toggle Clamping is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. Its advanced design ensures consistent and reliable operation, making it an ideal choice for various manufacturing needs.
This machine accommodates a wide volume range, from as small as 5ml up to 100 liters, providing versatility for different product sizes. Its robust performance supports multiple plastic materials, enabling its use across numerous industries.
Key Features
Wide Material Compatibility
This system supports a broad range of materials including PE, PP, PVC, PA, PC, PS, EVA, and many others, allowing for flexible production processes tailored to various application needs.
High Output and Energy Efficiency
Equipped with an advanced extrusion system powered by a variable frequency motor, this machine delivers:
- Strong plasticizing capabilities
- High production efficiency
- Lower energy consumption
Multi-Layer and Multi-Head Capability
The optional multi-head configuration allows for up to three heads, enabling production of double-layer products and view strip lines, thereby increasing manufacturing flexibility.
Precision Mould Clamping System
Featuring a toggle-type clamping mechanism with linear guides, this system ensures fast, stable operation and a strong clamping force of 200 KN. Its double-station design further boosts productivity by allowing simultaneous operations.
Intelligent Control System
The fully computerized PLC-based control system can store up to 40 mold parameters, facilitating quick setup changes. It also includes automatic fault detection and alarm functions to enhance operational safety and reliability.
Flexible Operation Modes
Operators can choose from manual, semi-automatic, or fully automatic modes, adapting the machine's operation to different production requirements and skill levels.
Technical Specifications
Basic Specifications
| Item |
Unit |
Value |
| Applicable materials |
– |
PE, PP |
| Max product volume |
L |
10 |
| Number of heads |
Set |
3 |
| Machine dimension (LxWxH) |
m |
3.5 x 5.6 x 2.65 |
| Machine weight |
Ton |
15 |
Mould Clamping System
| Item |
Unit |
Value |
| Mould clamping force |
kN |
200 |
| Platen opening strokes |
mm |
240 - 640 |
| Plate stroke |
mm |
750 |
| Max mould sizes (WxH) |
mm |
700 x 420 |
Extrusion System
| Parameter |
Unit |
100 mm |
75 mm (1) |
75 mm (2) |
25 mm (1) |
25 mm (2) |
| Screw diameter |
mm |
100 |
75 |
75 |
25 |
25 |
| Screw slenderness ratio (L/D) |
– |
26 |
24 |
24 |
22 |
22 |
| Plasticizing ability (HDPE) |
kg/h |
218 |
75 |
75 |
3 |
3 |
| Screw heating stage/zone |
Zone |
4 |
3 |
3 |
2 |
2 |
| Screw heating power |
kW |
17.4 |
12.6 |
12.6 |
1.4 |
1.4 |
| Screw fan power |
kW |
0.56 |
0.28 |
0.28 |
– |
– |
| Extrusion motor power |
kW |
55 |
22 |
22 |
1.5 |
1.5 |
The extrusion head includes 14 heating zones with a total heating power of 30 kW, ensuring precise temperature control during the process.
Energy Consumption
| Item |
Unit |
Value |
| Total machine power |
kW |
210 |
| Oil motor power |
kW |
31 |
| Air pressure |
MPa |
0.6 - 1 |
| Compression air volume |
m³/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications
The 95FD blow molding machine is extensively utilized in manufacturing a wide range of hollow plastic products across various industries:
- Packaging Industry: Plastic bottles for water, beverages, detergents, cosmetics; jars and containers; chemical and industrial barrels
- Industrial & Chemical Products: Lubricant containers, chemical storage tanks, plastic drums and canisters
- Automotive Parts: Air ducts, fluid reservoirs, and various plastic components
- Consumer & Household Products: Toys, storage boxes, and household containers
- Furniture & Large Plastic Parts: Chairs, desk boards, bed boards, and other substantial structural components
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?
The machine is branded MEPER and the model number is 95FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does this blow molding machine have?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and price for this machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for this machine?
The machine is packed in a standard export package, with an optional wooden pellet or wooden case. Delivery time is 25-35 working days.
What payment terms are accepted for purchasing this machine?
Accepted payment terms include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the supply ability of the Plastic Bottle Blow Molding Machine?
The supply ability is 100 sets per month.
