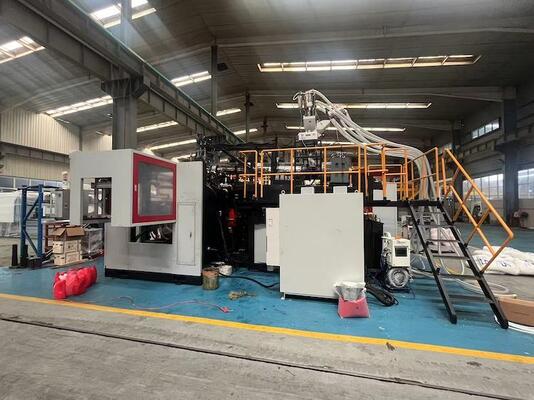

Extrusion Molding Machine with Double Station for Fast Operation
Product Overview
The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. This advanced equipment is ideal for creating products ranging in volume from as small as 5ml up to 100 liters.
Its versatile capabilities ensure consistent and reliable performance when working with various materials, making it suitable for applications across multiple industries. The MP Series stands out as a dependable solution for high-quality plastic blow molding needs.
Key Features
- Wide Material Compatibility: Supports PE, PP, PVC, PA, PC, PS, EVA, and many other materials for flexible production across various applications
- High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers excellent plasticizing performance while minimizing energy consumption
- Multi-Layer & Multi-Head Capability: Optional multi-head system supports up to three heads for double-layer and view strip line production
- Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide ensures fast, stable operation with 200 KN clamping force
- Intelligent Control System: Fully computerized PLC-based system stores up to 40 sets of mold parameters with automatic fault detection and alarm functions
- Flexible Operation Modes: Manual, semi-automatic, or fully automatic operation modes for optimized control based on production requirements
Technical Specifications
Basic Specifications
| Parameter | Unit | Value |
|---|
| Applicable Materials | | PE, PP |
| Maximum Product Volume | L | 10 |
| Number of Heads | Set | 3 |
| Machine Dimension (L×W×H) | Meters | 3.5 × 5.6 × 2.65 |
| Machine Weight | Ton | 15 |
Mould Clamping System
| Parameter | Unit | Value |
|---|
| Mould Clamping Force | kN | 200 |
| Platen Opening Stroke | mm | 240 - 640 |
| Plate Stroke | mm | 750 |
| Maximum Mould Size (W×H) | mm | 700 × 420 |
Extrusion System
| Parameter | Unit | 100 mm | 75 mm (1) | 75 mm (2) | 25 mm (1) | 25 mm (2) |
|---|
| Screw Diameter | mm | 100 | 75 | 75 | 25 | 25 |
| Screw Slenderness Ratio (L/D) | | 26 | 24 | 24 | 22 | 22 |
| Plasticizing Ability (HDPE) | kg/h | 218 | 75 | 75 | 3 | 3 |
| Screw Heating Stage/Zone | zones | 4 | 3 | 3 | 2 | 2 |
| Screw Heating Power | kW | 17.4 | 12.6 | 12.6 | 1.4 | 1.4 |
| Screw Fan Power | kW | 0.56 | 0.28 | 0.28 | | |
| Extrusion Motor Power | kW | 55 | 22 | 22 | 1.5 | 1.5 |
Head Parameters
| Parameter | Unit | Value |
|---|
| Head Heating Stage/Zone | zones | 14 |
| Head Heating Power | kW | 30 |
Energy Consumption
| Parameter | Unit | Value |
|---|
| Total Machine Power | kW | 210 |
| Oil Motor Power | kW | 31 |
| Air Pressure | MPa | 0.6 - 1 |
| Compression Air Volume | m³/min | 1.2 |
| Cooling Water Volume | L/min | 1000 |
Applications
The MP Series blow molding machine is extensively utilized in manufacturing a wide range of hollow plastic products across various industries:
- Packaging Industry: Plastic bottles for water, beverages, detergents, cosmetics; jars, containers, and large chemical/industrial barrels
- Industrial & Chemical Products: Lubricant containers, chemical storage tanks, plastic drums and canisters
- Automotive Parts: Air ducts, fluid reservoirs, and various automotive plastic components
- Consumer & Household Products: Toys, storage boxes, and household containers
- Furniture & Large Plastic Parts: Chairs, desk boards, bed boards, and other substantial structural components
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?
The machine is branded MEPER and the model number is 95FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MEPER 95FD Plastic Bottle Blow Molding Machine have?
It is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for the machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the Plastic Bottle Blow Molding Machine?
The machine is packaged in a standard export package, with an optional wooden pellet or wooden case. Delivery time is typically 25-35 work days.
What payment terms are accepted for purchasing the MEPER 95FD machine?
Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the monthly supply capacity of this blow molding machine?
The supply ability is 100 sets per month.
