Automatic Extrusion Blow Molding Machine with 40kg/h Output, PLC Touch Screen Interface, and Double Station Design for Plastic Bottles and Containers

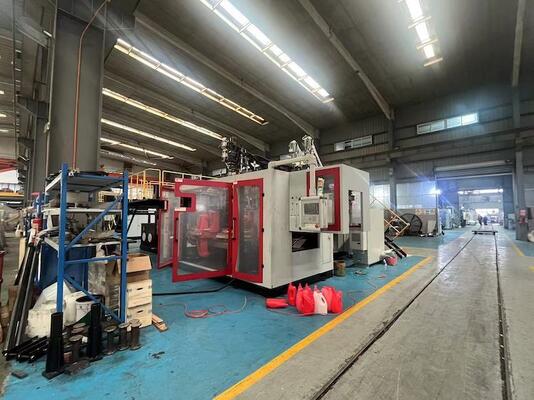

Large Image : Automatic Extrusion Blow Molding Machine with 40kg/h Output, PLC Touch Screen Interface, and Double Station Design for Plastic Bottles and Containers

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	95FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Productname:	Plastic Bottle Blow Molding Machine	Dimension:	360017001800mm
Total Power:	25KW	Machinedimensions:	4000mm X 1500mm X 2200mm
Output:	40kg/h	Controlsystem:	PLC With Touch Screen Interface
Weight:	1300kg	Iml:	Yes
Highlight:	40kg/h Output Blow Molding Machine , PLC Touch Screen Interface Extrusion Blow Molding Machine , Double Station Design Blow Molding Equipment

Product Overview

The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. This advanced equipment is ideal for creating products with volumes ranging from as small as 5ml up to 100 liters.

Its robust design ensures consistent and reliable performance across various materials, making it suitable for use in numerous industrial applications. Whether for small-scale or large-scale production, the MP Series guarantees high-quality results every time.

With its versatility and precision, this blow molding machine is a valuable asset for manufacturers aiming to optimize their plastic production processes while maintaining superior product standards.

Key Features

Wide Material Compatibility - Supports PE, PP, PVC, PA, PC, PS, EVA, and many other materials for flexible manufacturing processes
High Output & Energy Efficiency - Advanced extrusion system with variable frequency motor delivers strong plasticizing capabilities and reduced energy consumption
Multi-Layer & Multi-Head Capability - Optional multi-head system supporting up to three heads for double-layer products and view strip lines
Precision Mould Clamping System - Toggle-type clamping mechanism with linear guide providing fast, stable clamping force up to 200 KN
Intelligent Control System - Computerized PLC-based system storing up to 40 mold parameters with automatic fault detection and alarm functions
Flexible Operation Modes - Multiple operation modes including manual, semi-automatic, and fully automatic

Technical Specifications

Parameter Category	Specifications
Materials Processed	PE, PP
Maximum Product Volume	10 liters
Number of Heads	3 heads
Machine Dimensions	3.5m (L) × 5.6m (W) × 2.65m (H)
Total Weight	15 tons
Clamping Force	200 kN
Platen Opening Strokes	240 mm to 640 mm
Maximum Mould Size	700mm (W) × 420mm (H)
Screw Diameters	100mm, 75mm, 25mm
Plasticizing Capacity (HDPE)	3 kg/h to 218 kg/h
Total Power Consumption	210 kW
Cooling Water Flow	1000 liters/minute

Applications

Packaging Industry - Bottles for water, beverages, detergents, cosmetics; jars, containers, chemical and industrial barrels
Industrial & Chemical Products - Lubricant containers, chemical storage tanks, plastic drums and canisters
Automotive Parts - Air ducts, fluid reservoirs, and other plastic automotive components
Consumer & Household Products - Toys, storage boxes, and household containers
Furniture & Large Plastic Parts - Chairs, desk boards, bed boards, and other large hollow structural elements

Frequently Asked Questions

What is the brand and model number of the Plastic Bottle Blow Molding Machine?

The machine is branded MEPER and the model number is 95FD.

Where is the Plastic Bottle Blow Molding Machine manufactured?

It is manufactured in China.

What certifications does the MEPER 95FD machine have?

The machine is certified with CE and ISO9001:2008.

What is the minimum order quantity and how is the price determined?

The minimum order quantity is 1 set and the price is negotiable.

What are the packaging and delivery details for the machine?

The machine is packaged in a standard export package, with an optional wooden pellet wooden case. Delivery time is between 25-35 work days.

What payment terms are accepted for purchasing the MEPER 95FD?

Payment terms accepted include L/C and T/T.

What is the monthly supply ability of this plastic bottle blow molding machine?

The supply ability is 100 sets per month.
