MEPER 95FD Plastic Bottle Blow Molding Machine with Multi Layer Capability 40kg/h Output and Double Station Design

MEPER 95FD Plastic Bottle Blow Molding Machine with Multi Layer Capability 40kg/h Output and Double Station Design
MEPER 95FD Plastic Bottle Blow Molding Machine with Multi Layer Capability 40kg/h Output and Double Station Design

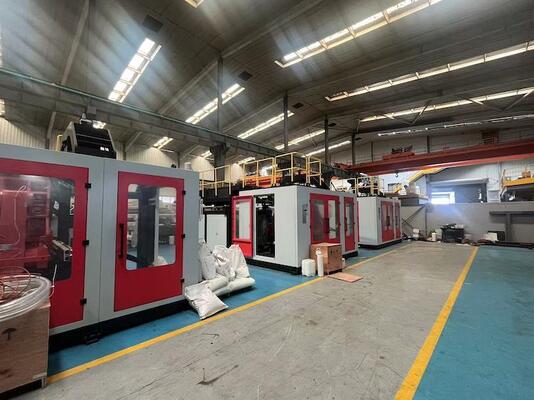

Large Image :  MEPER 95FD Plastic Bottle Blow Molding Machine with Multi Layer Capability 40kg/h Output and Double Station Design

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 95FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Die Head: Two Station: 2
Coolingsystem: Water Cooling Weight: 1300kg
Output: 40kg/h Productname: Plastic Bottle Blow Molding Machine
Mold Cavity: Single/Double Automationlevel: Semi-automatic / Fully Automatic Options
Highlight:

Multi Layer Capability Blow Molding Machine

,

40kg/h Output Plastic Bottle Blow Molding Machine

,

Double Station Design Extrusion Molding Machine

Advanced Extrusion Molding Machine MEPER 95FD with Multi Layer Capability
The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. Its design caters to various production needs, ensuring high-quality results every time.
This machine supports product volumes ranging from as small as 5 milliliters up to a substantial 100 liters. Such versatility makes it an ideal choice for different manufacturing requirements across multiple sectors.
Additionally, the MP Series maintains consistent and reliable performance when working with a variety of materials. This capability allows it to serve various industries, meeting their specific blow molding demands with ease.
Key Features
  • Wide Material Compatibility: Supports PE, PP, PVC, PA, PC, PS, EVA, and more for flexible production processes
  • High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers exceptional plasticizing capabilities while minimizing energy consumption
  • Multi-Layer & Multi-Head Capability: Optional multi-head system supports up to three heads for double-layer and view strip line production
  • Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide provides rapid, stable clamping force up to 200 KN
  • Intelligent Control System: Fully computerized PLC-based system with storage for 40 mold parameter sets and automatic fault detection
  • Flexible Operation Modes: Supports manual, semi-automatic, and fully automatic operation modes
Technical Specifications
Parameter Category Specifications
Compatible Materials PE, PP
Maximum Product Volume 10 liters
Number of Heads 3
Machine Dimensions 3.5m (L) × 5.6m (W) × 2.65m (H)
Machine Weight Approximately 15 tons
Clamping Force 200 kN
Platen Opening Stroke 240-640 mm
Maximum Mould Size 700mm (W) × 420mm (H)
Total Power Consumption 210 kW
Cooling Water Consumption Approximately 1000 L/min
Industry Applications
  • Packaging Industry: Plastic bottles for water, beverages, detergents, cosmetics; jars, containers, and industrial barrels
  • Industrial & Chemical Products: Lubricant containers, chemical storage tanks, plastic drums and canisters
  • Automotive Parts: Air ducts, fluid reservoirs, and other essential plastic components
  • Consumer & Household Products: Toys, storage boxes, and household containers
  • Furniture & Large Plastic Parts: Chairs, desk boards, bed boards, and other sizable structural components
Frequently Asked Questions
What is the brand and model of this Plastic Bottle Blow Molding Machine?
The machine is branded as MEPER and the model number is 95FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the machine have?
The machine holds CE and ISO9001:2008 certifications.
What is the minimum order quantity and price for the machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the delivery time and payment terms for purchasing the machine?
The delivery time is 25-35 work days, and the accepted payment terms are L/C and T/T.
