PLC Touch Screen Extrusion Molding Machine with Multi-Layer Capability and 200 KN Clamping Force for HDPE Bottles

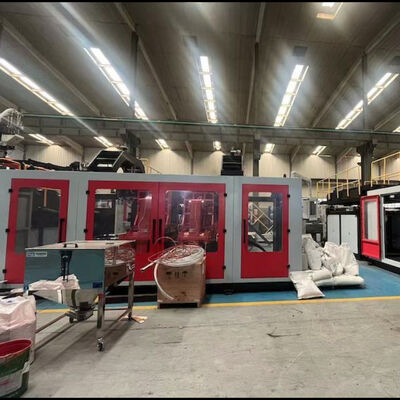

Large Image : PLC Touch Screen Extrusion Molding Machine with Multi-Layer Capability and 200 KN Clamping Force for HDPE Bottles

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	95FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Automatic:	Yes	Weight:	1300kg
Automationlevel:	Semi-automatic / Fully Automatic Options	Mold Cavity:	Single/Double
Controlsystem:	PLC With Touch Screen Interface	Iml:	Yes
Packing Type:	Wooden Case	Productname:	Plastic Bottle Blow Molding Machine
Highlight:	PLC Touch Screen Blow Molding Equipment , Multi-Layer Capability Extrusion Molding Machine , 200 KN Clamping Force Plastic Bottle Blow Molding Machine

MP Series Plastic Blow Molding Machine

The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. It is ideal for creating products with volumes ranging from 5ml up to 100 liters. This machine ensures consistent and reliable performance, making it suitable for use with various materials across numerous industries.

Key Features

Wide Material Compatibility: Compatible with PE, PP, PVC, PA, PC, PS, EVA, and many other materials for flexible manufacturing processes
High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers strong plasticizing capabilities while minimizing energy consumption
Multi-Layer & Multi-Head Capability: Optional multi-head system accommodates up to three heads for double-layer and view strip line production
Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide provides fast, stable clamping with 200 KN force and double-station design
Intelligent Control System: Fully computerized PLC-based control stores up to 40 mold parameters with automatic fault detection and alarm functions
Flexible Operation Modes: Manual, semi-automatic, and fully automatic modes for maximum adaptability to production requirements

Technical Specifications

Parameter	Specification
Compatible Materials	PE, PP
Maximum Product Volume	10 liters
Number of Heads	3
Machine Dimensions	3.5m (L) × 5.6m (W) × 2.65m (H)
Total Weight	15 tons
Clamping Force	200 KN
Platen Opening Stroke	240-640 mm
Maximum Mould Size	700mm (W) × 420mm (H)
Screw Diameters	100mm, 75mm, 25mm
Screw L/D Ratios	26, 24, 22
HDPE Plasticizing Capacity	3-218 kg/h
Total Power Consumption	210 KW
Air Pressure	0.6-1 MPa
Cooling Water Rate	1000 L/min

Applications

Packaging Industry: Plastic bottles for water, beverages, detergents, cosmetics; jars, containers, chemical and industrial barrels
Industrial & Chemical Products: Lubricant containers, chemical storage tanks, plastic drums and canisters
Automotive Parts: Air ducts, fluid reservoirs, and other automotive plastic components
Consumer & Household Products: Toys, storage boxes, household containers
Furniture & Large Plastic Parts: Chairs, desk boards, bed boards, large hollow structural components

Frequently Asked Questions

What is the brand and model number of the Plastic Bottle Blow Molding Machine?

The machine is branded MEPER, and the model number is 95FD.

Where is the Plastic Bottle Blow Molding Machine manufactured?

It is manufactured in China.

What certifications does the machine have?

The machine is CE and ISO9001:2008 certified.

What is the minimum order quantity and price?

The minimum order quantity is 1 set, and the price is negotiable.

What are the packaging details and delivery time?

The machine is packaged in a standard export package with an optional wooden pellet or wooden case. Delivery time is between 25 to 35 work days.

What payment terms do you accept and what is the supply ability?

We accept L/C and T/T payment terms, and our supply ability is 100 sets per month.
