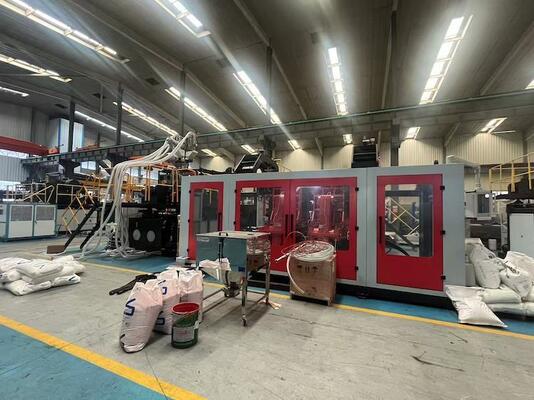

40kg/h Output Double Station Design Plastic Bottle Blow Molding Machine with PLC Touch Screen Interface

40kg/h Output Double Station Design Plastic Bottle Blow Molding Machine with PLC Touch Screen Interface
40kg/h Output Double Station Design Plastic Bottle Blow Molding Machine with PLC Touch Screen Interface

Large Image :  40kg/h Output Double Station Design Plastic Bottle Blow Molding Machine with PLC Touch Screen Interface

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 95FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Dimension: 3600*1700*1800mm Packing Type: Wooden Case
Productname: Plastic Bottle Blow Molding Machine Output: 40kg/h
Station: 2 Total Power: 25KW
Machinedimensions: 4000mm X 1500mm X 2200mm Weight: 1300kg
Highlight:

40kg/h Output Plastic Bottle Blow Molding Machine

,

Double Station Design Extrusion Molding Machine

,

PLC Touch Screen Interface Blow Molding Equipment

MP Series Plastic Blow Molding Machine
Engineered to produce a diverse variety of hollow plastic items with exceptional efficiency and accuracy. Capable of handling container sizes ranging from 5ml to 100 liters, this machine ensures consistent and reliable operation for various industrial applications.
Key Features
  • Wide Material Compatibility: Compatible with PE, PP, PVC, PA, PC, PS, EVA, and many other materials for flexible production processes
  • High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers strong plasticizing abilities while minimizing energy consumption
  • Multi-Layer & Multi-Head Capability: Optional configuration supports up to three heads for double-layer and view strip line production
  • Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide provides 200 KN clamping force and double-station design
  • Intelligent Control System: Fully computerized PLC-based system stores 40 mold parameters with automatic fault detection and alarm functions
  • Flexible Operation Modes: Manual, semi-automatic, and fully automatic modes to suit different production needs
Technical Specifications
Basic Specifications
Parameter Unit Value
Applicable Materials PE, PP
Maximum Product Volume L 10
Number of Heads SET 3
Machine Dimensions (L*W*H) M 3.5 * 5.6 * 2.65
Machine Weight TON 15
Mould Clamping System
Parameter Unit Value
Mould Clamping Force KN 200
Platen Opening Stroke MM 240 - 640
Plate Stroke MM 750
Maximum Mould Size (W*H) MM 700 * 420
Extrusion System Specifications
Parameter Unit Value Set 1 Value Set 2 Value Set 3 Value Set 4 Value Set 5
Screw Diameter MM 100 75 75 25 25
Screw Slenderness Ratio (L/D) 26 24 24 22 22
Plasticizing Ability (HDPE) KG/H 218 75 75 3 3
Screw Heating Stages/Zones Zone 4 3 3 2 2
Energy Consumption
Parameter Unit Value
Total Machine Power KW 210
Oil Motor Power KW 31
Air Pressure MPA 0.6 - 1
Compressed Air Volume M³/min 1.2
Cooling Water Volume L/min 1000
Applications
The MP Series blow molding machine is extensively utilized in manufacturing diverse hollow plastic products across multiple industries:
  • Packaging Industry: Plastic bottles for water, beverages, detergents, cosmetics, jars, containers, and industrial barrels
  • Industrial & Chemical Products: Lubricant containers, chemical storage tanks, plastic drums and canisters
  • Automotive Parts: Air ducts, fluid reservoirs, and specialized plastic components
  • Consumer & Household Products: Toys, storage boxes, and household containers
  • Furniture & Large Plastic Parts: Chairs, desk boards, bed boards, and other sizable structural components
Frequently Asked Questions
What is the brand and model number of this Plastic Bottle Blow Molding Machine?
The machine is branded as MEPER and the model number is 95FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MEPER 95FD Plastic Bottle Blow Molding Machine have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and pricing for this machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details?
Standard export package with wooden pellet or case options. Delivery time is 25-35 work days.
What payment terms are accepted?
Payment via L/C (Letter of Credit) or T/T (Telegraphic Transfer).
What is the monthly supply capacity?
The supply ability is 100 sets per month.
