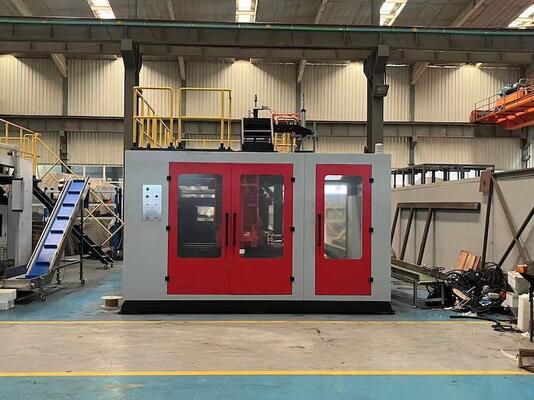

Total Power 25KW Blow Molding Equipment for Plastic Bottles
Featuring single and double mold cavity configurations supporting multiple bottle formats
Product Overview
The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. Its versatile design accommodates various production needs, ensuring high-quality output.
This machine handles product volumes ranging from as small as 5ml to as large as 100 liters, making it suitable for a wide spectrum of applications across different industries. With reliable and consistent performance, the MP Series supports multiple types of plastic materials, providing manufacturers with stability and precision in blow molding processes.
Key Features
- Wide Material Compatibility: Supports PE, PP, PVC, PA, PC, PS, EVA, and many other materials for flexible manufacturing processes
- High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers strong plasticizing capabilities while minimizing energy consumption
- Multi-Layer & Multi-Head Capability: Optional multi-head system supports up to three heads for double-layer and view strip line production
- Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide provides fast, stable operation with 200 KN clamping force and double-station design
- Intelligent Control System: Fully computerized PLC-based system stores up to 40 mold parameters with automatic fault detection and alarm functionalities
- Flexible Operation Modes: Supports manual, semi-automatic, and fully automatic operation to suit different production needs
Technical Specifications
System and Basic Parameters
| Basic Specifications | Details |
|---|
| Applicable Materials | PE, PP |
| Maximum Product Volume | 10 Liters |
| Number of Heads | 3 Sets |
| Machine Dimensions (L x W x H) | 3.5 m × 5.6 m × 2.65 m |
| Machine Weight | 15 Tons |
Mould Clamping System
| Parameter | Specification |
|---|
| Mould Clamping Force | 200 KN |
| Platen Opening Stroke | 240 - 640 mm |
| Plate Stroke | 750 mm |
| Maximum Mould Size (W × H) | 700 mm × 420 mm |
Extrusion System
| Parameter |
Ø100 mm |
Ø75 mm |
Ø75 mm |
Ø25 mm |
Ø25 mm |
| Screw Diameter | 100 mm | 75 mm | 75 mm | 25 mm | 25 mm |
| Screw Slenderness Ratio (L/D) | 26 | 24 | 24 | 22 | 22 |
| Plasticizing Ability (HDPE) | 218 kg/h | 75 kg/h | 75 kg/h | 3 kg/h | 3 kg/h |
| Screw Heating Stage / Zone | 4 | 3 | 3 | 2 | 2 |
| Screw Heating Power | 17.4 kW | 12.6 kW | 12.6 kW | 1.4 kW | 1.4 kW |
| Screw Fan Power | 0.56 kW | 0.28 kW | 0.28 kW | - | - |
| Extrusion Motor Power | 55 kW | 22 kW | 22 kW | 1.5 kW | 1.5 kW |
Head Specifications
| Parameter | Specification |
|---|
| Head Heating Stages / Zones | 14 |
| Head Heating Power | 30 kW |
Energy Consumption
| Parameter | Specification |
|---|
| Total Machine Power | 210 kW |
| Oil Motor Power | 31 kW |
| Air Pressure | 0.6 - 1 MPA |
| Compressed Air Volume | 1.2 m³/min |
| Cooling Water Volume | 1000 L/min |
Applications
The MP Series blow molding machine is extensively utilized in the manufacture of a wide range of hollow plastic products across various industries.
Packaging Industry
Ideal for producing plastic bottles for water, beverages, detergents, and cosmetics, as well as jars, containers, and chemical/industrial barrels.
Industrial & Chemical Products
Used to produce lubricant containers, chemical storage tanks, and plastic drums meeting rigorous industry standards.
Automotive Parts
Manufactures automotive components including air ducts, fluid reservoirs, and various plastic parts.
Consumer & Household Products
Creates toys, storage boxes, and household containers for consumer applications.
Furniture & Large Plastic Parts
Capable of producing large hollow structural plastic parts used in furniture, including chairs, desk boards, bed boards, and other sizable components.
Frequently Asked Questions
What is the brand and model number of this Plastic Bottle Blow Molding Machine?
The machine is branded MEPER, and the model number is 95FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
This machine is made in China.
What certifications does the MEPER 95FD Blow Molding Machine have?
It is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and the price for this machine?
The minimum order quantity is 1 set, and the price is negotiable based on order details.
What are the packaging options and delivery time for this blow molding machine?
The machine is packaged in a standard export package, with an optional wooden pellet wooden case. Delivery time is typically 25-35 working days.
What are the payment terms and supply capacity for the MEPER 95FD?
Payment can be made via L/C or T/T, and the supply ability is 100 sets per month.
