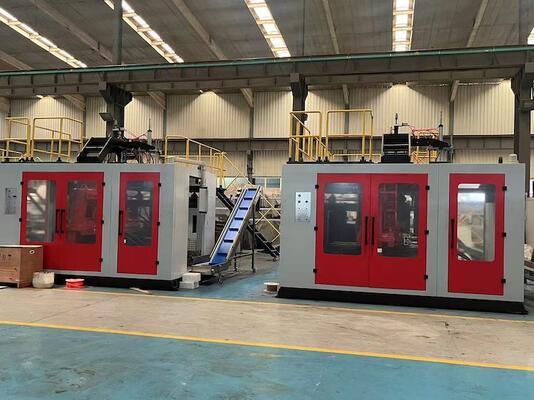

MP 95FD Professional Extrusion Blow Molding Machine
The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. Its design supports the creation of products in a broad range of sizes, accommodating volumes from 5ml up to 100 liters.
This machine ensures consistent and reliable performance, making it well-suited for handling various materials. Its versatility allows it to cater to multiple industries, meeting the demanding requirements of different manufacturing processes.
Key Features
- Wide Material Compatibility: Supports PE, PP, PVC, PA, PC, PS, EVA, and many other materials for flexible production processes
- High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers strong plasticizing capability while reducing energy consumption
- Multi-Layer & Multi-Head Capability: Optional multi-head system supports up to three heads for double-layer items and view strip lines
- Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide provides 200 KN clamping force and fast, stable operation
- Intelligent Control System: Fully computerized PLC-based system stores 40 mold parameter sets with automatic fault detection
- Flexible Operation Modes: Supports manual, semi-automatic, and fully automatic operation for optimal control
Technical Specifications
Basic Specifications
| Item | Unit | Parameter |
|---|
| Applicable Materials | | PE, PP |
| Max Product Volume | L | 10 |
| Number of Heads | SET | 3 |
| Machine Dimension (L x W x H) | M | 3.5 x 5.6 x 2.65 |
| Machine Weight | TON | 15 |
Mould Clamping System
| Item | Unit | Parameter |
|---|
| Mould Clamping Force | KN | 200 |
| Platen Opening Strokes | MM | 240 - 640 |
| Plate Stroke | MM | 750 |
| Max Mould Sizes (W x H) | MM | 700 x 420 |
Extrusion System
| Item | Unit | Parameter Values |
|---|
| Screw Diameter | MM | 100 | 75 | 75 | 25 | 25 |
| Screw Slenderness Ratio (L/D) | | 26 | 24 | 24 | 22 | 22 |
| Plasticizing Ability (HDPE) | KG/H | 218 | 75 | 75 | 3 | 3 |
| Screw Heating Stage/Zone | Zone | 4 | 3 | 3 | 2 | 2 |
| Screw Heating Power | KW | 17.4 | 12.6 | 12.6 | 1.4 | 1.4 |
| Screw Fan Power | KW | 0.56 | 0.28 | 0.28 | | |
| Extrusion Motor Power | KW | 55 | 22 | 22 | 1.5 | 1.5 |
Head Specifications
| Item | Unit | Parameter |
|---|
| Head Heating Stage/Zone | Zone | 14 |
| Head Heating Power | KW | 30 |
Energy Consumption
| Item | Unit | Parameter |
|---|
| Total Machine Power | KW | 210 |
| Oil Motor Power | KW | 31 |
| Air Pressure | MPA | 0.6 - 1 |
| Compressed Air Volume | M³/min | 1.2 |
| Cooling Water Volume | L/min | 1000 |
Applications
- Packaging: Plastic bottles for water, beverages, detergents, cosmetics, jars, containers, and industrial barrels
- Industrial & Chemical: Lubricant containers, chemical storage tanks, plastic drums, and canisters
- Automotive: Air ducts, fluid reservoirs, and essential plastic components
- Consumer Goods: Toys, storage boxes, and household containers
- Furniture: Chairs, desk boards, bed boards, and large hollow structural components
Frequently Asked Questions
Q1: What is the brand and model number of the Plastic Bottle Blow Molding Machine?
A1: The machine is branded MEPER and the model number is 95FD.
Q2: Where is the Plastic Bottle Blow Molding Machine manufactured?
A2: It is manufactured in China.
Q3: What certifications does the MEPER 95FD machine have?
A3: The machine is certified with CE and ISO9001:2008.
Q4: What is the minimum order quantity and pricing terms?
A4: The minimum order quantity is 1 set, and the price is negotiable based on your order requirements.
Q5: What are the packaging and delivery details for the machine?
A5: The machine is packaged in a standard export package with an optional wooden pellet or wooden case. The delivery time is typically between 25 to 35 work days.
Q6: What payment terms are accepted for purchasing the MEPER 95FD?
A6: Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
Q7: What is the monthly supply capacity for this blow molding machine?
A7: The supply ability is 100 sets per month.
