Smart Control Extrusion Molding Machine for Mass Production
Product Overview

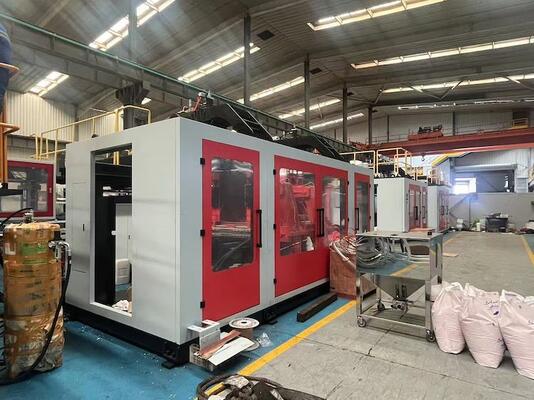

The MP Series plastic blow molding machine is engineered to produce a diverse array of hollow plastic items with exceptional efficiency and accuracy. It is tailored to handle products ranging in size from as small as 5ml up to 100 liters.
This machine ensures consistent and reliable performance, making it ideal for use with various materials and applicable across multiple industries. Its versatility and precision make it a valuable asset for plastic manufacturing operations.
Key Features
- Wide Material Compatibility: Supports PE, PP, PVC, PA, PC, PS, EVA, and many others for flexible production processes
- High Output & Energy Efficiency: Advanced extrusion system with variable frequency motor delivers strong plasticizing capability and reduced energy consumption
- Multi-Layer & Multi-Head Capability: Optional multi-head system accommodates up to three heads simultaneously, supporting double-layer and view strip lines
- Precision Mould Clamping System: Toggle-type clamping mechanism with linear guide provides fast, stable clamping force up to 200 KN
- Intelligent Control System: Fully computerized PLC-based control stores up to 40 mold parameters with automatic fault detection
- Flexible Operation Modes: Supports manual, semi-automatic, and fully automatic settings
Technical Specifications
System Basic Parameters
| Item |
Unit |
Basic Parameter |
| Applicable Materials |
|
PE, PP |
| Maximum Product Volume |
L |
10 |
| Number of Heads |
SET |
3 |
| Machine Dimensions (LxWxH) |
M |
3.5 x 5.6 x 2.65 |
| Machine Weight |
TON |
15 |
Mould Clamping System
Clamping force: 200 KN | Platen opening stroke: 240-640 mm | Plate stroke: 750 mm | Maximum mould dimensions: 700 mm width × 420 mm height
Extrusion System
Screw diameters: 100 mm, 75 mm, 25 mm | Plasticizing capacity (HDPE): 3-218 kg/h | Heating power: 1.4-17.4 kW | Extrusion motor power: 1.5-55 kW
Head Specifications
14 heating zones | Total head heating power: 30 kW
Energy Consumption
Total machine power: 210 kW | Oil motor: 31 kW | Air pressure: 0.6-1 MPa | Compressed air: 1.2 m³/min | Cooling water: 1000 L/min
Applications
- Packaging Industry: Plastic bottles for water, beverages, detergents, cosmetics; jars, containers, chemical and industrial barrels
- Industrial & Chemical Products: Lubricant containers, chemical storage tanks, plastic drums and canisters
- Automotive Parts: Air ducts, fluid reservoirs, various automotive plastic components
- Consumer & Household Products: Toys, storage boxes, household containers
- Furniture & Large Plastic Parts: Hollow structural parts for chairs, desk boards, bed boards, and other large components
Frequently Asked Questions
What is the brand and model number of the Plastic Bottle Blow Molding Machine?
The machine is branded MEPER, and the model number is 95FD.
Where is the Plastic Bottle Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MEPER 95FD machine have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price for this machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the Plastic Bottle Blow Molding Machine?
The machine is packed in a standard export package, with an optional wooden pellet or wooden case. Delivery time is typically 25-35 work days.
What payment terms and supply capacity does MEPER offer for this machine?
Payment terms include L/C and T/T. MEPER has a supply ability of 100 sets per month.
