Industrial Extrusion Blow Molding Machine for HDPE Bottles | 150kN Clamping Force

Product Description:

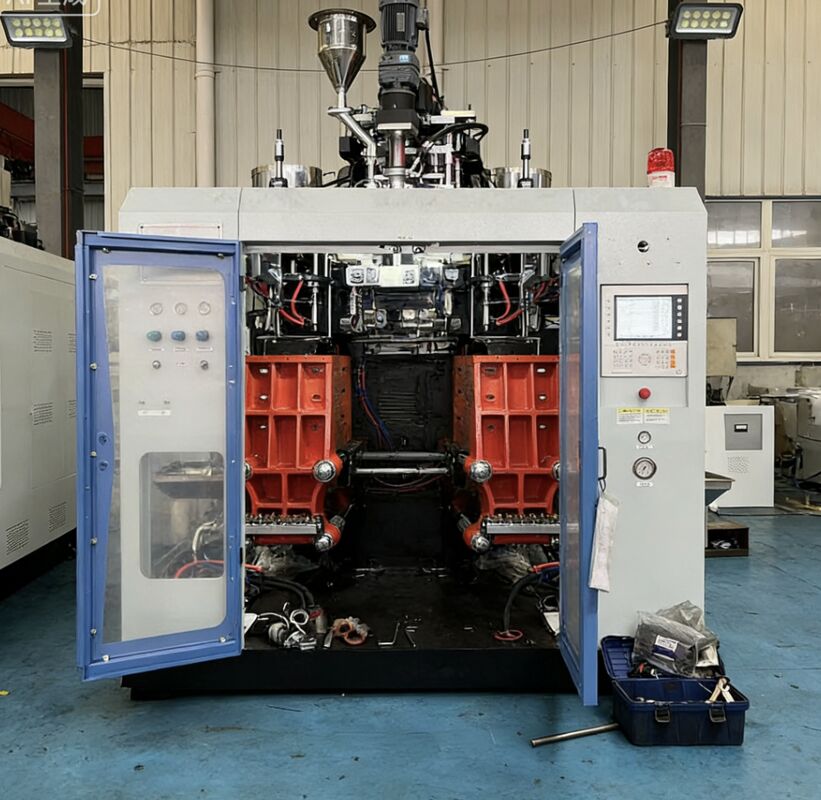

Product Overview – 10L Extrusion Blow Molding Machine

This 10L multi-head extrusion blow molding machine is designed for processing PE, PP, PVC, and PA materials, suitable for manufacturing detergent bottles, lubricant containers, chemical packaging, and food/pharma containers.

The machine features 1–4 head configurations, an 80mm screw (L/D 24), and 4-zone heating control, delivering up to 90 kg/h HDPE plasticizing capacity for continuous production.

Product Advantages

Stable Plasticizing & Continuous Extrusion

• 80mm screw with L/D 24

• 4-zone heating control
  → ensures stable melt flow for 90 kg/h HDPE output

 Multi-Head Production Efficiency

• 1–4 head configuration
  → supports multi-cavity bottle production per cycle

Flexible Mold Compatibility

• Max mold size: 520 × 460 mm

• Opening stroke: 220–620 mm

→ adaptable to various 5L–10L container designs

 Reliable Clamping System

• Clamping force: 150 kN
  → suitable for sealing and forming medium-size hollow containers

Standard Industrial Utilities

• Total power: 80 kW

• Air pressure: 0.6–0.8 MPa

• Cooling water: 40 L/min

→ compatible with standard factory conditions

Technical Parameters:

Applications:

Customization:

MEPER offers customized solutions for the Plastic Bottle Blow Molding Machine, model MP80D, designed to meet your specific production needs. Our automatic bottle blowing machine is engineered with a PLC control system featuring a touch screen for easy operation and precise control. With compatibility for materials such as PET, HDPE, PP, and PVC, this plastic bottle blow moulding machine ensures versatility across various applications.

The MP80D model comes with multiple die head options (1, 2, 3, 4, or 6) to accommodate different production volumes and bottle designs. Its single station design and compact machine dimensions of 4000mm X 1500mm X 2200mm make it suitable for a range of manufacturing environments.

Certified with CE and ISO9001:2008, our plastic bottle molding equipment guarantees high quality and reliable performance. We offer a minimum order quantity of just 1 set, with pricing negotiable to fit your budget. The standard export package includes wooden pellet wooden case packaging (optional) to ensure safe delivery.

With a supply ability of 100 sets per month and a delivery time of 25-35 work days, MEPER is ready to support your production demands. Payment terms include L/C and T/T options for your convenience. Trust MEPER for your plastic bottle blow molding machine needs and experience efficient, high-quality manufacturing solutions.
