Product Description:

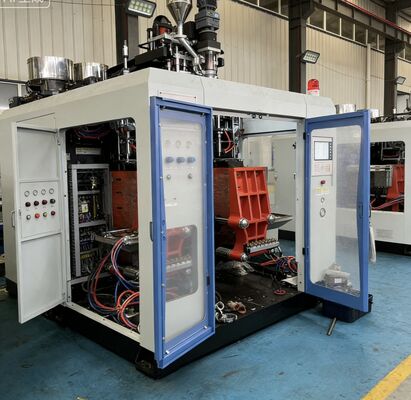

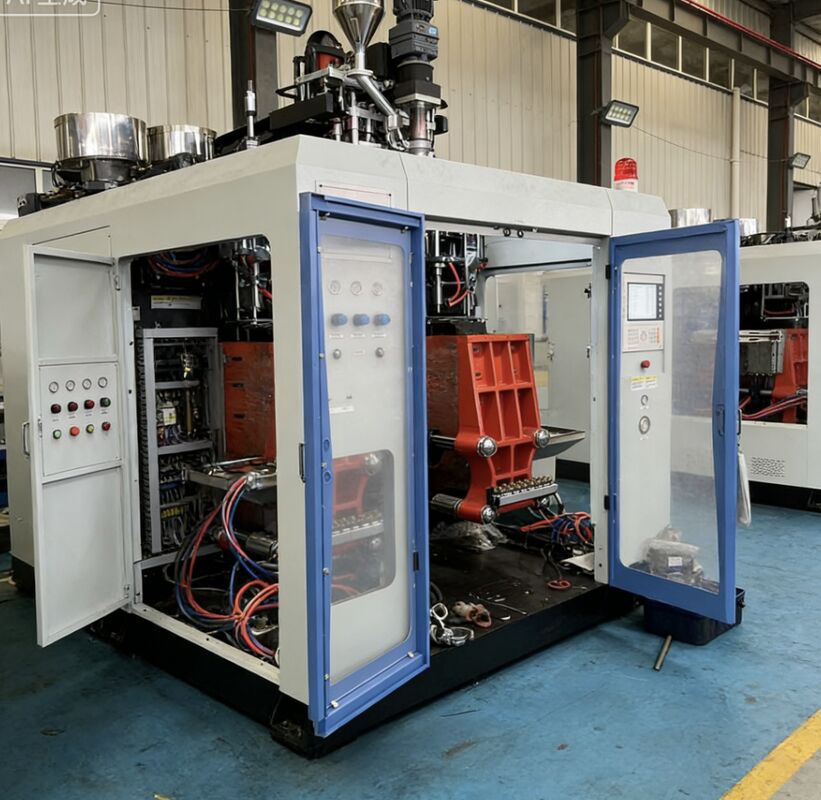

The Meper80D / MP80D Extrusion Blow Molding Machine is designed for manufacturing plastic bottles and hollow containers up to 10 liters.
It processes PE, PP, PVC, and PA materials and supports 1–4 head configurations for flexible multi-cavity production.
With an 80 mm screw (L/D 24) and HDPE output up to 90 kg/h, the machine ensures stable plasticizing, continuous extrusion, and consistent product quality.
Technical Parameters:
Machine Basic Parameters
Basic Specifications
| System |
Item |
Unit |
Basic Parameter |
| Basic Specifications |
Applicable Materials |
- |
PE, PP, PVC, PA, and others |
| Basic Specifications |
Max Product Volume |
L |
10 |
| Basic Specifications |
Number of Heads |
SET |
1, 2, 3, or 4 |
| Basic Specifications |
Machine Dimensions (L x W x H) |
m |
4 x 2.3 x 2.5 |
| Basic Specifications |
Machine Weight |
TON |
8.2 |
Mould Clamping System
| Mould Clamping Force |
KN |
150 |
| Platen Opening Stroke |
mm |
220-620 |
| Plate Stroke |
mm |
540 |
| Maximum Mould Size (W x H) |
mm |
520 x 460 |
Extrusion System
| Screw Diameter |
mm |
80 |
| Screw Slenderness Ratio (L/D) |
- |
24 |
| Plasticizing Ability (HDPE) |
kg/h |
90 |
| Number of Screw Heating Zones |
Zones |
4 |
| Screw Heating Power |
kW |
15.85 |
| Screw Fan Power |
kW |
0.28 |
| Extrusion Motor Power |
kW |
30 |
Head Details
| Head Heating Zones |
Zones |
3 |
| Head Heating Power |
kW |
10 |
Energy Consumption
| Total Machine Power |
kW |
80 |
| Oil Motor Power |
kW |
18.7 |
| Air Pressure |
MPa |
0.6 - 0.8 |
| Compressed Air Volume |
m³/min |
1.5 |
| Cooling Water Volume |
L/min |
40 |
Core Advantages
Stable Melt Flow & Consistent Output
The 80 mm screw + L/D 24 + 4-zone heating system ensures stable melt plasticizing and continuous extrusion, supporting 90 kg/h HDPE production.
Multi-Head Production Flexibility
Supports 1–4 die heads, allowing multi-cavity bottle production and flexible capacity adjustment.
Strong Clamping & Mold Stability
The 150 kN clamping force and reinforced platen structure provide stable mold closing, reducing flash and ensuring consistent forming.
Wide Mold Compatibility
Supports molds up to 520 × 460 mm and 220–620 mm platen stroke, suitable for 5L–10L containers and various bottle shapes.
Energy-Optimized System
Total installed power 80 kW with balanced motor and heating configuration, supporting stable operation with controlled energy use.
Durable Industrial Structure
Machine weight 8.2 tons with heavy-duty frame design reduces vibration and ensures long-term stable operation.
Stable Auxiliary Systems
Integrated hydraulic system, compressed air system (0.6–0.8 MPa), and cooling water circulation (40 L/min) ensure continuous production stability.
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine is extensively utilized in various industries to manufacture hollow plastic containers and industrial packaging with capacities up to 10 liters.
1. Daily Chemical Packaging Industry
This machine is ideal for producing containers commonly used in the daily chemical sector, including detergent bottles, shampoo bottles, cleaning liquid containers, disinfectant bottles, and other packaging for household chemical products.
2. Food & Beverage Industry
It is well-suited for manufacturing food-grade containers such as edible oil bottles, sauce bottles, drinking water containers, and other liquid packaging that require materials ensuring safety and hygiene.
3. Pharmaceutical & Medical Packaging
The extrusion blow molding machine is employed to produce medicine bottles, disinfectant containers, and various medical liquid packaging that demand high precision and consistent quality standards.
4. Lubricant & Chemical Industry
Designed for robustness and durability, it is perfect for producing engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical packaging products.
5. Industrial Packaging Sector
The machine supports the fabrication of industrial containers, tool bottles, automotive fluid tanks, and functional hollow parts tailored for diverse industrial applications.
6. Agrochemical & Agricultural Field
Widely used within agriculture, it manufactures pesticide bottles, fertilizer liquid containers, irrigation chemical containers, and packaging solutions for various agricultural chemicals.
7. Cosmetic & Personal Care Packaging
This equipment is suitable for producing lotion bottles, cosmetic containers, and personal care packaging products that require a smooth surface finish and precise shaping.
8. Custom Hollow Plastic Products
The Meper80D / MP80D machine also supports customized production of various hollow plastic items, including small drums, jerry cans, and specialty containers, tailored according to specific mold designs.
