Product Description:
The machine features a robust clamping system capable of exerting a clamping force of 150 kN. It supports a platen stroke of 540 mm and accommodates mold sizes up to 520 × 460 mm. This design guarantees strong mold stability as well as precise forming during operation.
Equipped with an advanced multi-zone heating system, the machine includes four heating zones for the screw and three zones for the head. This configuration ensures accurate temperature control, which significantly improves product quality and minimizes defects.
With a total installed power of 80 kW, the machine is designed for optimized energy consumption, providing both reliable and efficient performance. Additionally, the integration of cooling, compressed air, and hydraulic systems enables smooth and continuous production, even in demanding industrial settings.
Features:

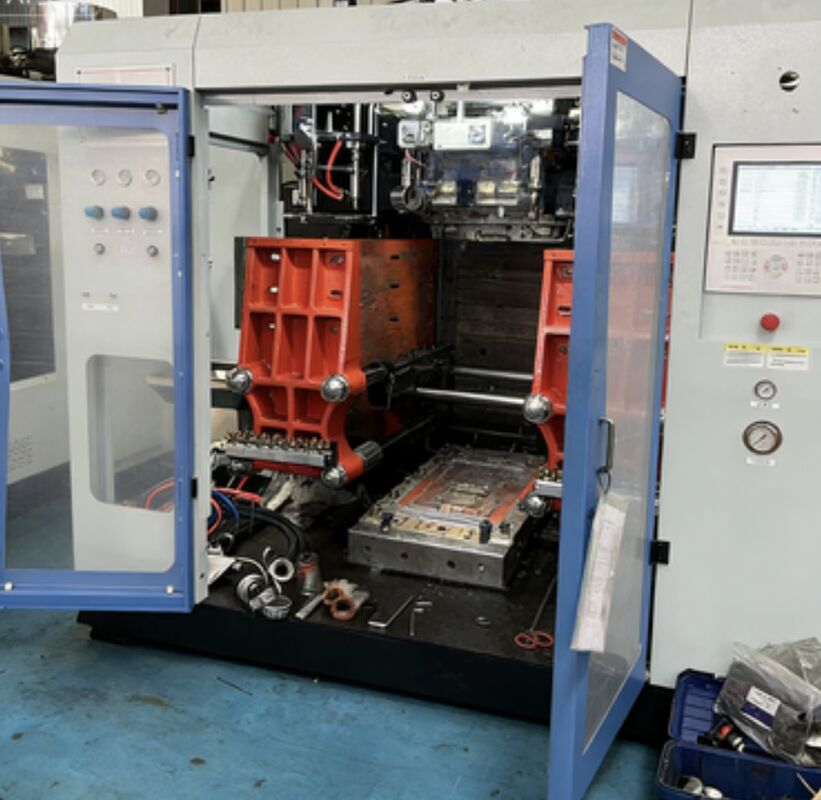

The Meper80D / MP80D extrusion blow molding machine is designed for high-efficiency production of plastic bottles and hollow containers up to 10 liters. It combines stable extrusion performance, flexible configuration, and reliable industrial design.
High Output and Stable Plasticizing
Equipped with an 80 mm high-performance screw (L/D 24), the machine provides a plasticizing capacity of up to 90 kg/h (HDPE). This ensures stable melt flow and consistent output for mass production of 10L containers.
Flexible Multi-Head Configuration
The machine supports 1 to 4 die heads, allowing multi-cavity bottle production. Manufacturers can adjust production capacity easily based on order volume and product type.
Strong Clamping and Mold Stability
A 150 kN clamping force combined with a reinforced platen structure ensures stable mold closing. This reduces flash and helps maintain consistent product shape and dimensional accuracy.
Wide Material Compatibility
Compatible with PE, PP, PVC, and PA, the machine can produce a wide range of bottles, chemical containers, and industrial hollow products using one system.
Precision Temperature Control
A multi-zone heating system (4 zones for screw + 3 zones for head) provides accurate temperature control. This improves melt uniformity and enhances surface finish.
Optimized Energy Consumption
The total installed power is 80 kW, with a balanced configuration of heating and motor systems. This supports stable operation while controlling energy usage.
Technical Parameters:
System and Basic Parameters Overview
This document outlines the fundamental specifications and parameters of the machine across several systems. It includes details about the materials applicable, machine dimensions, and weight, as well as more technical data related to the mould clamping, extrusion systems, and energy consumption.
Basic Specifications
Basic Specification Details
| Item |
Unit |
Basic Parameter |
| Applicable materials |
|
PE, PP, PVC, PA, and others |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1, 2, 3, 4 |
| Machine dimensions (L×W×H) |
M |
4 x 2.3 x 2.5 |
| Machine weight |
TON |
8.2 |
Mould Clamping System
Mould Clamping Parameters
| Item |
Unit |
Basic Parameter |
| Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
220 - 620 |
| Plate stroke |
MM |
540 |
| Max mould size (W×H) |
MM |
520 x 460 |
Extrusion System
Extrusion System Parameters
| Item |
Unit |
Basic Parameter |
| Screw diameter |
MM |
80 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stages/zones |
Zone |
4 |
| Screw heating power |
KW |
15.85 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
30 |
| Head heating stages/zones |
Zone |
3 |
| Head heating power |
KW |
10 |
Energy Consumption
Energy and Utility Parameters
| Item |
Unit |
Basic Parameter |
| Total machine power |
KW |
80 |
| Oil motor power |
KW |
18.7 |
| Air pressure |
MPA |
0.6 - 0.8 |
| Compression air volume |
M³/min |
1.5 |
| Cooling water volume |
L/min |
40 |
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine is extensively utilized in a variety of industries to manufacture hollow plastic containers and industrial packaging with capacities of up to 10 liters. Its versatile design makes it suitable for producing a wide range of products to meet diverse market demands.
1. Daily Chemical Packaging Industry
This machine is ideal for producing containers used in household chemicals. It efficiently manufactures detergent bottles, shampoo bottles, cleaning liquid containers, disinfectant bottles, and other packaging solutions for everyday chemical products.
2. Food & Beverage Industry
The Meper80D / MP80D is also well-suited for creating food-grade containers. It can produce edible oil bottles, sauce bottles, drinking water containers, and various other liquid packaging that require materials adhering to strict safety and hygiene standards.
3. Pharmaceutical & Medical Packaging
In the pharmaceutical sector, this extrusion blow molding machine is used for the production of medicine bottles, disinfectant containers, and medical liquid packaging. It ensures high precision and consistent quality to meet the stringent requirements of medical products.
4. Lubricant & Chemical Industry
The machine is perfect for manufacturing containers used in the lubricant and chemical industries. It produces strong and durable packaging such as engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical product containers.
5. Industrial Packaging Sector
This extrusion blow molding machine is applicable for industrial packaging needs. It is capable of producing robust industrial containers, tool bottles, automotive fluid tanks, and functional hollow parts designed for various industrial applications.
6. Agrochemical & Agricultural Field
Widely used in agriculture, the machine manufactures pesticide bottles, fertilizer liquid containers, irrigation chemical containers, and packaging for agricultural solutions, supporting farming and agrochemical industries effectively.
7. Cosmetic & Personal Care Packaging
The Meper80D / MP80D supports the production of cosmetic and personal care packaging, including lotion bottles, cosmetic containers, and other products that require a smooth surface finish and precise shaping for an attractive appearance.
8. Custom Hollow Plastic Products
Furthermore, the machine offers customization options to produce various hollow plastic items, including small drums, jerry cans, and specialty containers tailored to specific mold designs and customer requirements.
