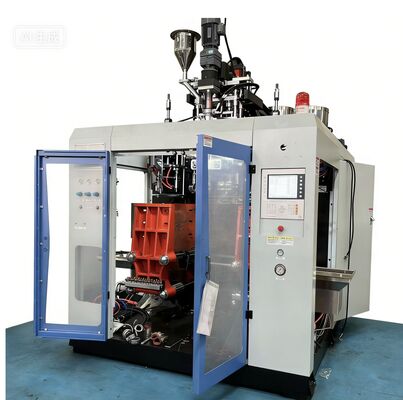

PE PP PVC PA Container Blow Molding Machine | 520×460mm Mold Size

Product Description:

The machine is equipped with a powerful clamping system that provides a clamping force of 150 kN. It features a platen stroke of 540 mm and supports mold sizes up to 520 × 460 mm. This combination guarantees excellent mold stability and precise forming during operation.

Its advanced multi-zone heating design includes 4 zones dedicated to the screw and 3 zones for the head. This configuration allows for accurate temperature control, which significantly improves product quality and minimizes the occurrence of defects.

With a total installed power rating of 80 kW, the machine is designed for optimized energy consumption, ensuring both reliability and efficiency. Additionally, the integrated cooling, compressed air, and hydraulic systems work together seamlessly to support smooth and continuous production, even in demanding industrial settings.

Technical Parameters:

The machine is designed to work with various materials such as PE, PP, PVC, and PA. It supports a maximum product volume of up to 10 liters, which makes it suitable for producing medium-sized products efficiently.

The equipment can be configured with one to four heads depending on production requirements. The overall dimensions of the machine measure 4 meters in length, 2.3 meters in width, and 2.5 meters in height, and it weighs approximately 8.2 tons.

The mould clamping system is equipped with a clamping force of 150 kN, ensuring the mould is firmly secured during operation. The platen opening stroke ranges between 220 and 620 millimeters to accommodate various mould sizes.

The plate stroke extends up to 540 millimeters, and the maximum mould size that the machine can handle is 520 millimeters in width by 460 millimeters in height.

The extrusion system features an 80 mm diameter screw with a slenderness ratio (L/D) of 24, delivering efficient plasticizing capability of up to 90 kilograms per hour for HDPE materials. It incorporates four heating zones, powered by a total heating power of 15.85 kW, supplemented by a screw cooling fan rated at 0.28 kW.

The extrusion motor is rated at 30 kW, providing ample power for continuous operation. The extrusion head is equipped with three heating zones consuming 10 kW of power to maintain optimal processing temperatures.

The total power consumption of the machine is 80 kW. It includes an oil motor rated at 18.7 kW to drive necessary hydraulic or mechanical components.

The system requires compressed air pressure between 0.6 and 0.8 MPa, with an air volume consumption of 1.5 cubic meters per minute. For cooling purposes, the machine uses water at a flow rate of 40 liters per minute to maintain operational stability.

Advantages of Meper80D / MP80D Extrusion Blow Molding Machine

• High Output Performance
  80 mm screw (L/D 24) with 90 kg/h HDPE plasticizing capacity ensures stable melt flow and continuous production.

• Flexible Multi-Head Configuration
  Supports 1–4 die heads for multi-cavity bottle production and adjustable capacity.

• Strong Clamping Stability
  150 kN clamping force with reinforced platen reduces flash and improves forming consistency.

• Wide Material Compatibility
  Suitable for PE, PP, PVC, PA for bottles, containers, and industrial hollow products.

• Precision Temperature Control
  4 screw zones + 3 head zones heating system ensures uniform melt and better surface finish.

• Energy-Optimized Operation
  80 kW total power system with balanced heating and motor configuration.

• Heavy-Duty Industrial Structure
  8.2-ton machine weight ensures low vibration and stable long-term operation.

• Large Mold Compatibility
  Supports molds up to 520 × 460 mm with 220–620 mm platen stroke.

• Easy Operation & Maintenance
  User-friendly control system with quick mold change design.

• Stable Auxiliary Systems
  Works with 0.6–0.8 MPa air, 1.5 m³/min consumption, and 40 L/min cooling water.

• Consistent Product Quality
  Stable extrusion and clamping ensure uniform wall thickness and repeatable results.

• Industrial Application Ready
  Suitable for detergent bottles, chemical containers, lubricant bottles, and 10L packaging products.

Applications:

The Meper80D / MP80D extrusion blow molding machine is extensively utilized across a variety of industries to manufacture hollow plastic containers and industrial packaging solutions with capacities of up to 10 liters. Its versatility and precision make it ideal for producing a wide range of products tailored to specific industrial needs.

This machine is perfectly suited for the production of containers in the daily chemical sector, including detergent bottles, shampoo bottles, cleaning liquid containers, disinfectant bottles, and various other household chemical packaging items. Its functionality ensures consistent quality and durability for everyday consumer products.

In the food and beverage industry, the Meper80D / MP80D is ideal for manufacturing food-grade containers such as edible oil bottles, sauce bottles, drinking water containers, and other liquid packaging that require materials meeting stringent safety and hygiene standards.

The machine is also widely used in producing pharmaceutical and medical containers, including medicine bottles, disinfectant containers, and packaging for medical liquids. These applications demand high precision and consistent quality to ensure safety and effectiveness.

For the lubricant and chemical sectors, this extrusion blow molding machine is ideal for creating robust and durable packaging such as engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical packaging products that require strong material properties.

The Meper80D / MP80D is applicable in the industrial packaging field where it produces industrial containers, tool bottles, automotive fluid tanks, and various functional hollow parts used in industrial applications, combining strength with precision design.

This machine finds extensive use in the agrochemical and agricultural industries for manufacturing pesticide bottles, fertilizer liquid containers, irrigation chemical containers, and other packaging solutions for agricultural chemicals, supporting efficient and safe handling of agricultural products.

The extrusion blow molding machine is well suited for cosmetic and personal care products, producing lotion bottles, cosmetic containers, and other packaging items that require a smooth surface finish and precise shaping to meet consumer expectations.

Beyond standard applications, the Meper80D / MP80D supports customized manufacturing of various hollow plastic items, including small drums, jerry cans, and specialty containers. These can be produced according to different mold designs, providing flexibility to meet unique customer requirements.

Customization:

MEPER Plastic Bottle Blow Molding Machine, model MP80D, is a high-quality automatic bottle blowing machine designed for efficient production of plastic containers. With CE and ISO9001:2008 certification, this plastic bottle molding equipment ensures reliable performance and durability.

The machine measures 4000mm x 1500mm x 2200mm and features a PLC control system with a touch screen for easy operation. It utilizes a water cooling system to maintain optimal temperature during the blow molding process, compatible with materials such as PET, HDPE, PP, and PVC.

With a supply ability of 100 sets per month and a minimum order quantity of just 1 set, the MP80D blow molding machine for plastic containers is ideal for various production scales. Pricing is negotiable to fit your budget.

Packaging includes a standard export package with an optional wooden pellet wooden case for added protection during shipping. Delivery time ranges from 25 to 35 work days, and payment terms are flexible, including L/C and T/T options.

Choose MEPER's MP80D plastic bottle blow molding machine to enhance your production line with reliable, automatic bottle blowing machine technology and advanced plastic bottle molding equipment.
