Product Description:

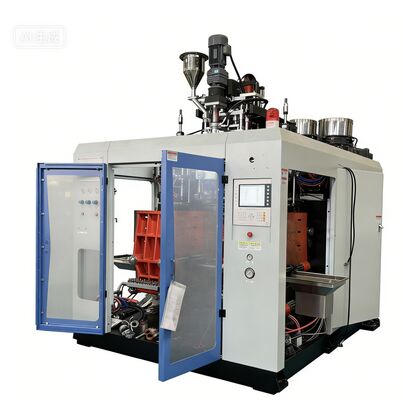

The Meper80D / MP80D Extrusion Blow Molding Machine is designed for manufacturing plastic bottles and hollow containers up to 10 liters.
It processes PE, PP, PVC, and PA materials and supports 1–4 head configurations for flexible multi-cavity production.
With an 80 mm screw (L/D 24) and HDPE output up to 90 kg/h, the machine ensures stable plasticizing, continuous extrusion, and consistent product quality.
Technical Parameters:
Major technical parameters
|
System
|
Item
|
Unit
|
Basic Parameter
|
|
Basic specifications
|
Applicable materials
|
|
PE PP PVC PA…
|
|
Max product volume
|
L
|
10
|
|
Number of heads
|
SET
|
1,2,3,4
|
|
Machine dimension
(LxWxH)
|
M
|
4x2.3x2.5
|
|
Machine weight
|
TON
|
8.2
|
|
|
|
Mould clamping system
|
Mould clamping force
|
KN
|
150
|
|
Platen opening strokes
|
MM
|
220-620
|
|
Plate stroke
|
MM
|
540
|
|
Max mould sizes(WxH)
|
MM
|
520x460
|
|
|
|
Extrusion system
|
Screw diameter
|
MM
|
80
|
|
Screw slenderness ratio
|
L/D
|
24
|
|
Plasticizing ability (HDPE)
|
KG/H
|
90
|
|
Screw heating stage/zone
|
Zone
|
4
|
|
Screw heating power
|
KW
|
15.85
|
|
Screw fan power
|
KW
|
0.28
|
|
Extrusion motor power
|
KW
|
30
|
|
|
|
|
Head
|
Head heating stage/zone
|
Zone
|
3
|
|
Head heating power
|
KW
|
10
|
|
|
|
Energy consumption
|
Total machine power
|
KW
|
80
|
|
Oil motor power
|
KW
|
18.7
|
|
Air pressure
|
MPA
|
0.6-0.8
|
|
Compression air volume
|
M3/min
|
1.5
|
|
Cooling water volume
|
L/min
|
40
|
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine is extensively utilized in a variety of industries. It specializes in the production of hollow plastic containers and industrial packaging with capacities up to 10 liters.
1. Daily Chemical Packaging Industry
This machine is ideal for manufacturing a range of household chemical packaging products, including detergent bottles, shampoo containers, cleaning liquid bottles, and disinfectant packaging.
2. Food & Beverage Industry
It is well-suited for producing food-grade containers such as edible oil bottles, sauce bottles, drinking water containers, and other liquid packaging solutions that demand safety and hygiene.
3. Pharmaceutical & Medical Packaging
The Meper80D / MP80D is used to create medicine bottles, disinfectant containers, and medical liquid packaging that require high precision and reliable quality control.
4. Lubricant & Chemical Industry
This machine is perfect for manufacturing engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical packaging products that need to be strong and durable.
5. Industrial Packaging Sector
It is also applicable in producing industrial containers, tool bottles, automotive fluid tanks, and various functional hollow parts used in industrial applications.
6. Agrochemical & Agricultural Field
The equipment finds extensive use in the agricultural sector for producing pesticide bottles, fertilizer liquid containers, irrigation chemical carriers, and packaging for agricultural solutions.
7. Cosmetic & Personal Care Packaging
Suitable for the production of lotion bottles, cosmetic containers, and personal care packaging items that require a smooth surface finish and precise shaping.
8. Custom Hollow Plastic Products
The machine supports customized manufacturing of various hollow plastic products, including small drums, jerry cans, and specialty containers, all tailored to different mold designs.
FAQ – Extrusion Blow Molding Machine 10L (Meper80D / MP80D)
Q1: What products can this extrusion blow molding machine produce?
This machine is designed to produce plastic bottles and hollow containers up to 10 liters, including detergent bottles, chemical containers, lubricant bottles, agrochemical packaging, food-grade containers, and medical liquid bottles.
Q2: What materials are supported?
The machine processes PE, PP, PVC, and PA materials. These materials are commonly used for chemical packaging, daily-use containers, and industrial hollow products.
Q3: What is the production capacity of the machine?
The machine is equipped with an 80 mm screw (L/D 24) and provides a plasticizing capacity of up to 90 kg/h for HDPE, suitable for continuous industrial production.
Q4: How many die heads can the machine support?
The machine supports 1 to 4 die heads. This allows multi-cavity bottle production and flexible adjustment of production output based on order demand.
Q5: What is the maximum product size and mold size?
-
Maximum product volume: 10 L
-
Maximum mold size: 520 × 460 mm
-
Platen opening stroke: 220–620 mm
This allows production of a wide range of bottle sizes and shapes.
