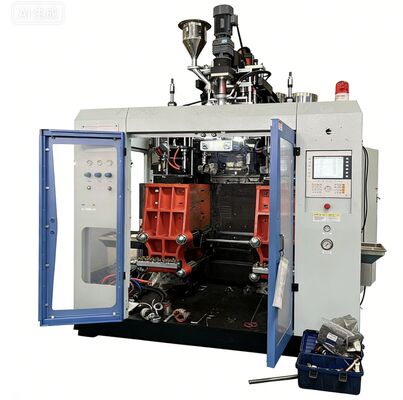

Product Description:
The machine features a robust clamping system capable of delivering a clamping force of 150 kN. It supports a platen stroke of 540 mm and can accommodate molds up to the size of 520 × 460 mm. This setup guarantees strong mold stability and ensures precise forming during operation.
Equipped with an advanced multi-zone heating design, the system includes 4 heating zones for the screw and 3 zones for the head. This configuration allows for accurate temperature control, which significantly enhances product quality while minimizing defects.
The equipment operates with a total installed power of 80 kW and has been optimized for efficient energy consumption. This results in reliable and effective machine performance. Furthermore, integrated cooling, compressed air, and hydraulic systems work together to support smooth and continuous production, even in demanding industrial settings.
Features:
Advantages of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D Extrusion Blow Molding Machine is designed to deliver outstanding performance with high production efficiency. Featuring an 80mm high-performance screw and a plasticizing capacity of up to 90 kg/h, it guarantees a stable melt flow and substantial output, making it perfect for mass-producing containers sized at 10 liters.
This machine offers a flexible multi-head configuration, supporting between one to four heads. This versatility allows manufacturers to easily adjust production capacity and simultaneously operate multiple cavities, thereby maximizing overall productivity.
Its robust clamping system exerts a strong force of 150 kN and incorporates a reinforced platen structure. This combination ensures excellent mold stability, minimizes flash formation, and maintains consistent quality across all products.
Compatibility with a wide range of materials such as PE, PP, PVC, and PA makes the Meper80D / MP80D highly adaptable. This versatility enables the production of various bottles, containers, chemical packaging, and industrial hollow items all within a single machine.
Precision temperature control is achieved through a multi-zone heating system, which includes four zones for the screw and three for the head. This setup guarantees uniform heating, enhanced plasticization of the melt, and improved surface finish of the final products.
The machine is also designed for energy-efficient operation, consuming a total power of just 80 kW. Its efficient heating and motor systems contribute to reduced energy expenses without compromising on performance.
With a heavy-duty construction weighing 8.2 tons, the Meper80D / MP80D boasts a durable mechanical design. This ensures a long service life, minimal vibration, and stable operation during continuous industrial use.
It supports large molds up to 520 × 460 mm in size and platen opening strokes extending to 620 mm. This capability makes it suitable for producing an extensive range of product shapes and sizes.
User-friendliness is a key feature, as the machine includes an intuitive control system and a thoughtfully designed layout. This facilitates straightforward daily operation, easy maintenance, and rapid mold changeovers.
Moreover, the machine integrates a complete auxiliary system, including an optimized hydraulic system, a compressed air supply operating at 0.6–0.8 MPa, and an efficient cooling water circulation system with a flow rate of 40 L/min. These systems work together to ensure smooth and stable machine operation.
Consistent product quality is guaranteed through stable extrusion processes, accurate temperature management, and reliable clamping. These features ensure uniform wall thickness and high-quality finished items.
Ideal for industrial applications, the Meper80D / MP80D is perfectly suited for manufacturing chemical containers, detergent bottles, lubricant bottles, and various other industrial packaging products up to 10 liters in size.
Technical Parameters:
Machine Basic Parameters
Basic Specifications
This machine is compatible with various materials including PE, PP, PVC, and PA among others. It can handle a maximum product volume of 10 liters.
The equipment can be configured with multiple heads, with available options including 1, 2, 3, or 4 heads to suit different production needs.
Regarding its physical dimensions, the machine measures 4 meters in length, 2.3 meters in width, and 2.5 meters in height, and it weighs approximately 8.2 tons.
Mould Clamping System
The mould clamping system provides a clamping force of 150 kiloNewtons (KN), ensuring secure and stable molding during operation.
The platen opening stroke ranges from 220 to 620 millimeters, allowing for flexible mould placement. The plate stroke extends up to 540 millimeters.
The maximum mould size compatible with this system is 520 millimeters in width by 460 millimeters in height.
Extrusion System
This machinery features an 80 mm diameter screw with a slenderness ratio (L/D) of 24, contributing to efficient extrusion performance.
The plasticizing capacity for high-density polyethylene (HDPE) is rated at 90 kilograms per hour, supported by a four-zone screw heating system with a total power of 15.85 kilowatts.
Additional components include a screw fan powered by 0.28 kilowatts and an extrusion motor with a 30-kilowatt power rating.
Head System
The head is equipped with a three-zone heating system, delivering a total heating power of 10 kilowatts to maintain optimal processing temperatures.
Energy Consumption
The total power consumption of the machine is 80 kilowatts, with the oil motor specifically requiring 18.7 kilowatts.
Operational air pressure ranges between 0.6 and 0.8 megapascals (MPa), supported by a compressed air volume of 1.5 cubic meters per minute.
Cooling water is supplied at a rate of 40 liters per minute, ensuring stable and efficient system cooling.
Applications:
Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine
The Meper80D / MP80D extrusion blow molding machine finds extensive use in various industries for the production of hollow plastic containers and industrial packaging products with capacities of up to 10 liters.
Daily Chemical Packaging Industry
This machine is ideal for manufacturing a range of household chemical packaging, including detergent bottles, shampoo bottles, containers for cleaning liquids, disinfectant bottles, and other related products.
Food & Beverage Industry
It is well-suited for producing food-grade containers such as edible oil bottles, sauce bottles, drinking water containers, and other liquid packaging that require materials ensuring safety and hygiene.
Pharmaceutical & Medical Packaging
The Meper80D / MP80D is employed to manufacture medicine bottles, disinfectant containers, and medical liquid packaging that call for high precision and consistent quality standards.
Lubricant & Chemical Industry
This machine is perfect for creating packaging for engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical products that demand strong and durable materials.
Industrial Packaging Sector
It serves well in producing industrial containers, bottles for tools, automotive fluid tanks, and other functional hollow parts intended for industrial applications.
Agrochemical & Agricultural Field
The equipment is widely used to manufacture pesticide bottles, liquid fertilizer containers, irrigation chemical packaging, and other solutions applicable in the agricultural sector.
Cosmetic & Personal Care Packaging
It is suitable for producing bottles for lotions, cosmetic containers, and personal care packaging items that require a smooth surface finish and precise shaping.
Custom Hollow Plastic Products
The Meper80D / MP80D supports customized production of various hollow plastic products such as small drums, jerry cans, and specialty containers based on diverse mold designs.
Customization:
MEPER offers customized services for the Plastic Bottle Blow Molding Machine, model MP80D, designed to meet your specific production needs. Our bottle blowing machinery is CE and ISO9001:2008 certified, ensuring high quality and reliable performance. With a minimum order quantity of just 1 set, we provide flexible purchasing options to suit your requirements.
The MP80D plastic bottle blow moulding machine features a single station design and utilizes a PLC control system with a user-friendly touch screen for precise and efficient operation. It is specially designed to process PP plastic, equipped with an effective water cooling system to maintain optimal working temperatures during production.
We offer a standard export package for shipping, with an optional wooden pellet wooden case for added protection. Delivery time is typically 25-35 work days, supported by a supply ability of 100 sets per month to meet your production demands. Payment terms include L/C and T/T, and pricing is negotiable to provide the best value for your investment in plastic bottle molding equipment.
Trust MEPER for your plastic bottle blow moulding machine needs and benefit from our comprehensive customization services tailored to enhance your manufacturing efficiency and product quality.
