Water Cooling Blow Molding Equipment for Plastic Bottles Offering Precise Temperature Regulation to Ensure Optimal Bottle

Product Description:

The machine features a powerful clamping system that generates a clamping force of 150 kN. It supports a platen stroke of 540 mm and can accommodate mold sizes up to 520 × 460 mm. This setup guarantees excellent mold stability and precise forming performance.

Equipped with an advanced multi-zone heating system, the machine includes four heating zones for the screw and three zones for the head. This configuration allows for precise temperature management, which significantly improves product quality and minimizes the risk of defects.

Boasting a total installed power of 80 kW, the machine is designed for optimized energy efficiency. Its integrated systems for cooling, compressed air, and hydraulics contribute to smooth and continuous operation, making it well-suited for demanding industrial production environments.

Features:

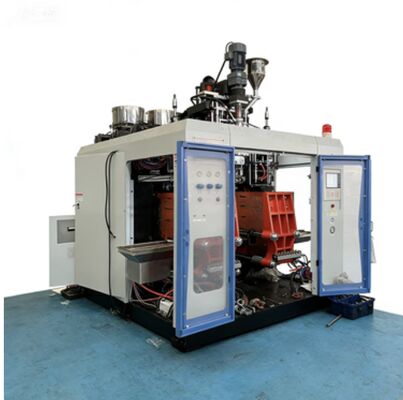

The Meper80D / MP80D Extrusion Blow Molding Machine offers exceptional production efficiency. Featuring an 80mm high-performance screw and a plasticizing capacity reaching up to 90 kg/h, this equipment guarantees a stable melt flow and a high output rate. It is perfectly suited for the mass production of 10-liter containers, ensuring consistent and efficient manufacturing processes.

Designed with flexibility in mind, the machine supports a multi-head configuration ranging from 1 to 4 heads. This allows manufacturers to easily adjust the production capacity according to their needs and operate multiple cavities simultaneously, thereby maximizing overall productivity.

Equipped with a strong and stable clamping system, the machine delivers a clamping force of 150 kN alongside a reinforced platen structure. This combination ensures excellent mold stability, effectively minimizing flash and maintaining consistent product quality throughout production runs.

The Meper80D / MP80D is compatible with a wide variety of materials including PE, PP, PVC, and PA. This versatility enables the production of diverse bottles, containers, chemical packaging, and industrial hollow products within a single machine, enhancing operational flexibility.

Precision in temperature control is achieved through its advanced multi-zone heating system, comprising four zones for the screw and three zones for the head. This setup ensures uniform heating, superior melt plasticization, and an improved surface finish on the final products.

Energy efficiency is a key feature of this machine, optimized to consume a total power of only 80 kW. With efficient heating and motor systems, it helps reduce energy expenses while maintaining top-tier performance levels during operation.

Built for durability and heavy-duty use, the machine weighs 8.2 tons and incorporates a robust mechanical design. This ensures an extended service life, reduces vibration, and supports stable continuous operation even in demanding industrial environments.

It also offers compatibility with large molds, supporting sizes up to 520 × 460 mm and platen opening strokes up to 620 mm. This capability makes it suitable for manufacturing a wide range of product shapes and sizes to meet various customer requirements.

Ease of operation and maintenance is ensured by a user-friendly control system and an accessible machine layout. This design simplifies daily use, routine maintenance tasks, and enables quick mold changeovers, thereby minimizing downtime.

The machine is integrated with a complete auxiliary system that includes an optimized hydraulic system, a compressed air system operating at 0.6–0.8 MPa, and efficient cooling water circulation at 40 liters per minute. These features contribute to stable and reliable operation.

Consistent product quality is guaranteed through stable extrusion processes, precise temperature regulation, and a reliable clamping mechanism. This combination ensures uniform wall thickness and high-quality finished goods every time.

Overall, the Meper80D / MP80D Extrusion Blow Molding Machine is ideal for industrial applications. It is particularly well-suited for manufacturing chemical containers, detergent bottles, lubricant bottles, and other industrial packaging products up to 10 liters in size.

Technical Parameters:

The basic specifications illustrate the machine’s adaptability to various common plastics including PE, PP, PVC, and PA. It supports a maximum product volume of 10 liters, and can be configured with one to four heads depending on production needs. The physical size of the machine measures 4 meters in length, 2.3 meters in width, and 2.5 meters in height, with an overall weight of 8.2 tons.

The mould clamping system provides a robust clamping force of 150 kN, ensuring secure fixation during operation. It offers flexibility with platen opening strokes ranging from 220 to 620 millimeters, accompanied by a plate stroke of 540 millimeters. The maximum allowable mould dimensions are 520 millimeters in width and 460 millimeters in height, accommodating a variety of mould sizes.

The extrusion system is equipped with an 80 mm diameter screw featuring a slenderness ratio of 24, which facilitates efficient material mixing and melting. It demonstrates a plasticizing capacity of 90 kilograms per hour specifically for HDPE. The screw is divided into four distinct heating zones, powered by a total of 15.85 kW, with additional fan power rated at 0.28 kW to maintain optimal temperature. The extrusion motor itself delivers 30 kW of power.

The head section includes three heating zones that are powered by a 10 kW heating system. This configuration ensures a consistent temperature profile essential for the quality and integrity of the final product.

The energy consumption data indicates that the machine operates with a total power requirement of 80 kW. The oil motor contributes 18.7 kW to this consumption. Operating air pressure ranges between 0.6 and 0.8 MPa, with compressed air consumption of 1.5 cubic meters per minute. Cooling water is supplied at a rate of 40 liters per minute to maintain operational temperatures and system stability.

Applications:

Customization:

MEPER offers customized product solutions for the Plastic Bottle Blow Molding Machine, model MP80D, designed to meet your specific production needs.

Our automatic bottle blowing machine is equipped with advanced PLC controls with a touch screen for easy operation and precise control. The machine is certified with CE and ISO9001:2008, ensuring high quality and reliability.

This plastic container blowing machine supports a wide range of applicable materials including HDPE, LDPE, PP, PETG, PVC, PC, PA, EVOH, and EPET, making it versatile for various production requirements.

The MP80D model features 6 die heads and a single station design, allowing efficient and consistent plastic bottle molding equipment performance.

We offer a minimum order quantity of 1 set with a supply ability of 100 sets per month. Pricing is negotiable to best fit your budget and production scale.

Packaging is handled with care using standard export packages, with an option for wooden pellet wooden cases to ensure safe delivery.

The delivery time for the customized plastic bottle molding equipment is between 25-35 work days, and payment terms are flexible, supporting L/C and T/T methods.

Choose MEPER’s MP80D automatic bottle blowing machine for reliable performance, customizable options, and comprehensive support tailored to your manufacturing demands.
