80mm Screw Extrusion Blow Molding Machine for 10L Containers with PLC Touch Screen Control

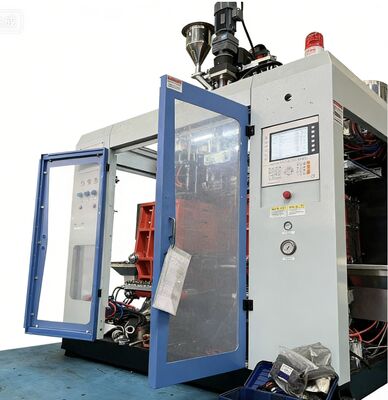

Large Image : 80mm Screw Extrusion Blow Molding Machine for 10L Containers with PLC Touch Screen Control

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP80D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Package. Wooden Pellet Wooden Case(optional)
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Controlsystem:	PLC With Touch Screen	Productname:	Plastic Bottle Blow Molding Machine
Machinedimensions:	4000mm X 1500mm X 2200mm	Standard:	CE
Moldmaterial:	Aluminum Or Steel	Machinetype:	Blow Molding
Station:	Single	Applicable Material:	HDPE LDPE PP PETG PVC PC PA EVOH EPET
Highlight:	6-head water cooling blow molding machine , PP plastic bottle manufacturing machine , plastic bottle blow molding system

MP 80mm Screw Extrusion Blow Molding Machine for 10L Containers

This high-performance extrusion blow molding machine features a robust clamping system with 150 kN clamping force, 540 mm platen stroke, and supports mold sizes up to 520 × 460 mm. The advanced multi-zone heating system includes 4 heating zones for the screw and 3 zones for the head, ensuring precise temperature control for superior product quality.

Key Features & Advantages

High Production Efficiency: 80mm screw with plasticizing capacity up to 90 kg/hour for consistent melt flow
Flexible Multi-Head Configuration: Supports 1 to 4 heads for adjustable production capacity
Robust Clamping System: 150 kN clamping force minimizes flash and ensures mold stability
Material Versatility: Compatible with PE, PP, PVC, and PA materials
Precision Temperature Control: Multi-zone heating system improves plasticization and surface finish
Energy Efficient Operation: Optimized 80 kW total power consumption reduces energy costs
Heavy-Duty Construction: 8.2-ton structure ensures stable operation in demanding conditions
Extensive Mold Compatibility: Supports molds up to 520 × 460 mm with 620 mm platen opening
User-Friendly Operation: Well-organized layout facilitates quick maintenance and mold changes
Integrated Auxiliary Systems: Complete hydraulic, compressed air, and cooling water systems

Technical Specifications

Basic Specifications

Parameter	Value
Applicable Materials	PE, PP, PVC, PA
Maximum Product Volume	10 L
Number of Heads	1, 2, 3, 4 sets
Machine Dimensions (L×W×H)	4 × 2.3 × 2.5 meters
Machine Weight	8.2 tons

Mould Clamping System

Parameter	Value
Mould Clamping Force	150 kN
Platen Opening Stroke	220 - 620 mm
Plate Stroke	540 mm
Maximum Mould Size (W×H)	520 × 460 mm

Extrusion System

Parameter	Value
Screw Diameter	80 mm
Screw Slenderness Ratio (L/D)	24
Plasticizing Capacity (HDPE)	90 kg/h
Number of Heating Zones on Screw	4
Screw Heating Power	15.85 kW
Screw Fan Power	0.28 kW
Extrusion Motor Power	30 kW

Energy Consumption

Parameter	Value
Total Machine Power	80 kW
Oil Motor Power	18.7 kW
Air Pressure	0.6 - 0.8 MPa
Compressed Air Volume	1.5 m³/min
Cooling Water Flow	40 L/min

Application Fields

The MP80D extrusion blow molding machine is ideal for manufacturing hollow plastic containers up to 10 liters across multiple industries:

Daily Chemical Packaging: Detergent bottles, shampoo containers, cleaning liquid bottles
Food & Beverage: Edible oil bottles, sauce containers, drinking water packaging
Pharmaceutical & Medical: Medicine bottles, disinfectant containers, medical liquid packaging
Lubricant & Chemical: Engine oil bottles, lubricant containers, pesticide bottles
Industrial Packaging: Industrial containers, tool bottles, automotive fluid tanks
Agrochemical: Pesticide bottles, fertilizer containers, irrigation chemical packaging
Cosmetic & Personal Care: Lotion bottles, cosmetic containers with smooth surface finish
Custom Hollow Products: Small drums, jerry cans, specialty containers

Customization Options

MEPER offers customized solutions for the MP80D Plastic Bottle Blow Molding Machine to meet specific production requirements. Features include PLC control system with touch screen, 6 die heads configuration, and robust water cooling system. Compatible with PET, HDPE, PP, and PVC materials. Certified with CE and ISO9001:2008 standards.

Order Information: Minimum order quantity 1 set, supply ability 100 sets/month, delivery time 25-35 working days. Payment terms include L/C and T/T. Standard export packaging with optional wooden protection available.
