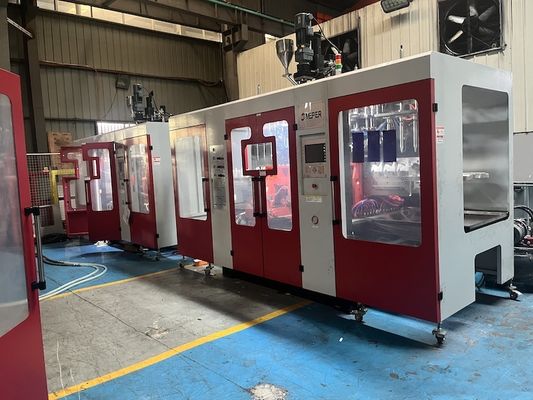

MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor

MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor
MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor

Large Image :  MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Plate Stroke: 540m M Number Of Heads: 1，2，3，4SET
Output Of Hdpe: 85KG/H Material: Plastic
Keyword: Hdpe Bottle Blowing Machine Motor: Siemens
Touch Screen: SIEMENS Clamping Force: 120KN
Highlight:

four layer extrusion molding machine

,

Siemens motor extrusion molding machine

,

MP 80FD extrusion molding machine

MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor
Product Description

The MP 80FD Extrusion Blow Molding Machine is engineered for manufacturing high-quality hollow plastic products. The process begins with melting plastic resins including HDPE, LDPE, PP, or PVC, then extruding the material into a parison (tubular shape).

The machine then closes a mold around the parison and injects air to expand the plastic to the mold's shape. After cooling, the finished hollow product is ejected, ready for use or further processing.

Key Features
Accommodates hollow products of all sizes - large, medium, or small
Versatile compatibility with various plastic materials
Produces thick-walled containers for enhanced durability
Supports single-layer and multi-layer production (up to six layers)
High durability for stable, continuous production runs
Available in single-station or double-station configurations
Technical Specifications
80FDE-4S(100) Specifications
Material PE
Max Container Capacity 500ML
Number of Die 4 sets
Machine Dimension (LxWxH) 3.82x4x2.5 m
Total Weight 8.6 tons
Clamping Unit
Clamping Force 120 kN
Platen Opening 240-600 mm
Toggle Stroke 540 mm
Max Mould Size (WxH) 480x500 mm
Extruder Unit
Screw Diameter 75 mm
Screw L/D Ratio 24 L/D
Plasticizing Capacity (HDPE) 85 Kg/h
Screw Heating Zone 3 zones
Screw Heating Power 15.3 kW
Fan Power 0.14 kW
Extruder Motor Power 22 kW
Energy Consumption
Total Power of Machine 72 kW
Power of Oil Pump Motor 15 kW
Air Pressure 0.6-0.8 Mpa
Consumption Compression Air 1.5 m3/min
Consumption Cooling Water 0.4 m3/min
Applications

The MP 80FD Extrusion Molding Machine is ideal for producing:

HDPE bottles for household products (detergents, shampoos, yogurt)
Containers for motor oil and lubricants
Chemical and pesticide storage bottles
Large jerry cans (5-30 liters capacity)
Water tanks and fuel tanks
Toys and hollow plastic objects (balls, floats, cones)
Frequently Asked Questions
Q1: What is the brand and model number of this extrusion molding machine?
A1: Manufactured by MEPER, model number 80FD.
Q2: Does this machine have any certifications?
A2: Certified with CE and ISO9001:2008 standards.
Q3: What is the minimum order quantity for this machine?
A3: Minimum order quantity is 1 set.
Q4: What are the payment terms available?
A4: Payment options include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
Q5: What is the delivery time after placing an order?
A5: Typically 25-35 work days.
Q6: What is the supply capacity?
A6: Up to 100 sets per month.
Q7: How is the machine packaged for shipment?
A7: Shipped using standard protective packaging.
Q8: Is the price negotiable?
A8: Price is negotiable based on order details and quantity.
