Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H

Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H
Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H

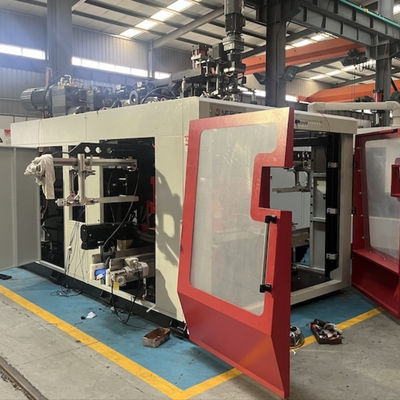

Large Image :  Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Touch Screen: SIEMENS Applicable Material: HDPE + EVOH+AD
Container Capacity: 500ML Plc: Mitsubishi
Clamping Force: 120KN Plate Stroke: 540m M
Type: Plastic Processing Machinery Material: Plastic
Highlight:

Siemens HDPE extrusion molding machine

,

MP 80FD extrusion machine 85KG/H

,

high output extrusion molding machine

Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H
Product Description
An Extrusion Blow Molding Machine shapes plastic materials into hollow products. The process begins by heating plastic resin (typically HDPE, LDPE, PP, or PVC) until melted. The molten plastic is extruded to form a hollow tube (parison), which is enclosed within a mould. Air is then blown into the parison, forcing it to expand and conform to the mould's interior. After cooling, the finished hollow product is ejected.
Key Features
  • Accommodates hollow products of various sizes (large, medium, small)
  • Compatible with multiple plastic types for versatile production
  • Produces thick-walled containers for robust, durable outputs
  • Single-layer and multi-layer production capability (up to 6+ layers)
  • High-durability construction for stable, continuous operation
  • Available in single-station or double-station configurations
Technical Parameters
80FDE-4S(100)
SPECIFICATION MATERIAL PE
MAX CONTAINER CAPACITY L 500ML
NUMBER OF DIE set 4
MACHINE DIMENSION(LxWxH) M 3.82x4x2.5
TOTAL WEIGHT ton 8.6
CLAMPING UNIT
CLAMPING FORCE kN 120
PLATEN OPENING mm 240-600
TOGGLE STROKE mm 540
MAX MOULD SIZE (WxH) mm 480x500
EXTRUDER UNIT
SCREW DIAMETER mm 75
SCREW L/D RATIO L/D 24
PLASTICIZING CAPACI(HDPE) Kg/h 85
SCREW HEATING ZONE zone 3
SCREW HEATING POWER kW 15.3
FAN POWER kW 0.14
EXTRUDER MOTOR POWER kW 22
DIE HEAD
DIE HEAD HEATING ZONE zone 15
POWER OF DIE HEAD HEATING kW 16.5
MAX DIAMETER OF MOUTH MOLD mm 35
ENERGY-CONSUMPTION
TOTAL POWER OF MACHINE kW 72
POWER OF OIL PUMP MOTO kW 15
AIR PRESSURE Mpa 0.6-0.8
CONSUMPTION COMPRESSION AIR m3/min 1.5
CONSUMPTION COOLING WATER m3/min 0.4
Applications
This extrusion blow molding machine is ideal for producing:
  • HDPE bottles for detergents, shampoos, and yogurt packaging
  • Containers for motor oil, lubricants, chemicals, and pesticides
  • Large jerry cans (5-30 liters capacity)
  • Water tanks and fuel tanks
  • Hollow plastic articles like toys, balls, floats, and cones
Frequently Asked Questions
Q1: What is the brand and model number of this extrusion molding machine?
A1: The extrusion molding machine is from the brand MEPER, and the model number is 80FD.
Q2: Does this machine have any certifications?
A2: Yes, the MEPER 80FD extrusion molding machine is certified with CE and ISO9001:2008 standards.
Q3: What is the minimum order quantity for this product?
A3: The minimum order quantity for the MEPER 80FD extrusion molding machine is 1 set.
Q4: What are the payment terms available for purchasing this machine?
A4: Payment terms accepted are L/C (Letter of Credit) and T/T (Telegraphic Transfer).
Q5: How long does it take to deliver the extrusion molding machine after placing an order?
A5: The delivery time for the MEPER 80FD extrusion molding machine is typically 25-35 work days.
Q6: What packaging is used for shipping this machine?
A6: The machine is shipped using standard packaging to ensure it arrives safely.
Q7: What is the supply capacity of the manufacturer for this extrusion molding machine?
A7: The manufacturer can supply up to 100 sets of the MEPER 80FD extrusion molding machine per month.
Q8: Is the price fixed or negotiable?
A8: The price for the MEPER 80FD extrusion molding machine is negotiable depending on order quantity and requirements.

Tag:

80mm Screw Diameter Extrusion Molding Machine,

80mm Extrusion Molding Machine,

10L Extrusion Molding Machine
