1SET Extrusion Molding Machine for HDPE EVOH AD Material 1 Head

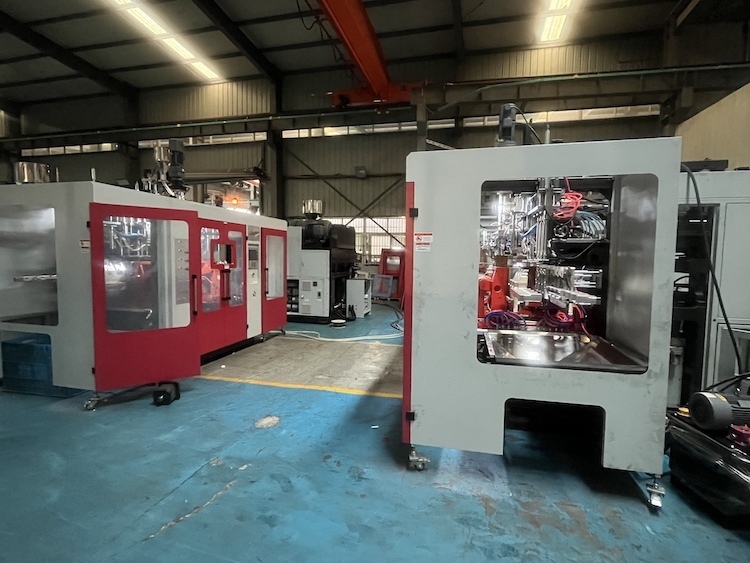

Large Image : 1SET Extrusion Molding Machine for HDPE EVOH AD Material 1 Head

Product Details:

Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	80FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Payment Terms:	L/C,T/T
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Keyword:	Hdpe Bottle Blowing Machine	Clamping Force:	120KN
Layer:	FOUR	Type:	Plastic Processing Machinery
Container Capacity:	500ML	Material:	Plastic
Plate Stroke:	540m M	Applicable Material:	HDPE + EVOH+AD
Highlight:	HDPE extrusion molding machine , EVOH extrusion molding machine , single head extrusion machine

1SET Extrusion Molding Machine for HDPE EVOH AD Material 1 Head

Product Description

An Extrusion Blow Molding Machine is specialized equipment designed for shaping plastic materials. The process begins by melting plastic resins including High-Density Polyethylene (HDPE), Low-Density Polyethylene (LDPE), Polypropylene (PP), or Polyvinyl Chloride (PVC).

The machine extrudes the molten plastic into a hollow tube (parison), which is then enclosed by a mold. Compressed air is blown into the parison, causing the plastic to expand and conform to the mold cavity. After cooling and solidification, the finished hollow plastic product is ejected for further processing or use.

Key Features

Accommodates hollow items of various sizes (large, medium, small) for diverse manufacturing needs
Processes a wide range of plastic materials for multiple industrial applications
Handles containers with thick walls for robust product quality
Supports single-layer or multi-layer production (up to six or more layers)
High durability for stable, continuous production runs
Configurable as single-station or double-station systems

Technical Specifications

80FDE-4S(100)
SPECIFICATION	MATERIAL	PE
MAX CONTAINER CAPACITY	L	500ML
NUMBER OF DIE	set	4
MACHINE DIMENSION(LxWxH)	M	3.82x4x2.5
TOTAL WEIGHT	ton	8.6
CLAMPING UNIT
CLAMPING FORCE	kN	120
PLATEN OPENING	mm	240-600
TOGGLE STROKE	mm	540
MAX MOULD SIZE (WxH)	mm	480x500
EXTRUDER UNIT
SCREW DIAMETER	mm	75
SCREW L/D RATIO	L/D	24
PLASTICIZING CAPACI(HDPE)	Kg/h	85
SCREW HEATING ZONE	zone	3
SCREW HEATING POWER	kW	15.3
FAN POWER	kW	0.14
EXTRUDER MOTOR POWER	kW	22
DIE HEAD
DIE HEAD HEATING ZONE	zone	15
POWER OF DIE HEAD HEATING	kW	16.5
MAX DIAMETER OF MOUTH MOLD	mm	35
ENERGY-CONSUMPTION
TOTAL POWER OF MACHINE	kW	72
POWER OF OIL PUMP MOTO	kW	15
AIR PRESSURE	Mpa	0.6-0.8
CONSUMPTION COMPRESSION AIR	m3/min	1.5
CONSUMPTION COOLING WATER	m3/min	0.4

Applications

Extrusion blow molding is widely used for manufacturing various plastic containers including:

HDPE bottles for detergents, shampoos, and yogurt packaging
Motor oil and lubricant containers
Chemical and pesticide bottles
Large jerry cans (5-30 liters capacity)
Water tanks and fuel tanks
Hollow plastic toys and objects
Plastic balls, floats, and cones

Frequently Asked Questions

Q1: What is the brand and model number of the extrusion molding machine?

A1: Manufactured by MEPER, model number 80FD.

Q2: Does the MEPER 80FD extrusion molding machine have any certifications?

A2: Certified with CE and ISO9001:2008.

Q3: What is the minimum order quantity for the MEPER 80FD extrusion molding machine?

A3: Minimum order quantity is 1 set.

Q4: What are the payment terms for purchasing this extrusion molding machine?

A4: Accepted payment terms: L/C (Letter of Credit) and T/T (Telegraphic Transfer).

Q5: How long does it take to deliver the MEPER 80FD extrusion molding machine after an order is placed?

A5: Typical delivery time is 25-35 work days.

Q6: What is the supply capacity of the MEPER 80FD extrusion molding machine?

A6: Supply capacity up to 100 sets per month.

Q7: How is the extrusion molding machine packaged for shipment?

A7: Shipped with standard packaging to ensure safe delivery.

Q8: Is the price fixed or negotiable?

A8: Price is negotiable based on order quantity and other factors.
