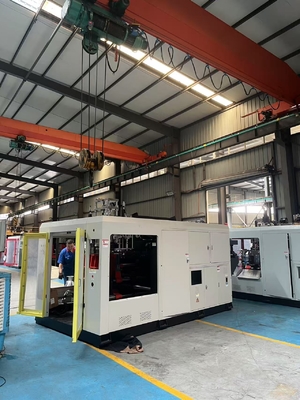

MEPER 80D Plastic Blow Molding Machine 8.2 Ton for Hollow Products

MEPER 80D Plastic Blow Molding Machine 8.2 Ton for Hollow Products
MEPER 80D Plastic Blow Molding Machine 8.2 Ton for Hollow Products

Large Image :  MEPER 80D Plastic Blow Molding Machine 8.2 Ton for Hollow Products

Product Details:
Place of Origin: China
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: 80D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Machine Dimension (LxWxH): 4X2.3X2.5M Machine Weight: 8.2ton
Applicable Materials: PE PP Plate Stroke: 540mm
Number Of Heads: 1,2,3,4SET Max Product Volume: 10L
Mould Clamping Force: 150KN Platen Opening Strokes: 220-620MM
Highlight:

80D plastic blow molding machine

,

8.2 ton hollow product machine

,

plastic extrusion molding machine

Product Description:

MP Plastic Blow Molding Machine

The MP plastic blow molding machine is designed for processing a wide range of plastic hollow products with high molecular weight. It is ideal for manufacturing hollow products ranging from 5 milliliters to 100 liters. These products encompass a variety of items, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts.

This machine has the capability to blow various materials such as PE, PP, PVC, PA, PC, PS, and EVA, and it ensures a flawless production process.



Features:

a) The extruding device features a variable frequency motor that can meet the rotation change requirements of the screw during the blowing process. Utilizing a screw with a high slenderness ratio allows for processing a variety of materials with strong plasticizing ability, high production capacity, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer, enabling quick, stable, and uniform heating.

b) By incorporating different heads in a combined extrusion system between two extrusion machines, products with a visible strip line or double layers can be produced.

c) The mould clamping device employs vertical compression, three pilot posts, a large beam arm, linear guiders, a cylinder spindle, and dual working positions, enabling fast and stable movement of the mould.

d) An improved design of the hydraulic oil loop ensures power savings, rapid operation, and stability.

e) Hydraulic elements are easy to install and maintain, with a removable and mobile oil tank for added convenience.

f) The entire machine is computer-controlled, with a hydraulic system featuring double proportional control. This machine boasts fault automatic alarm, reliable operation, high automation, and the ability to store data for 40 sets of moulds.

g) Three operation modes – "Manual," "Semi-Auto," and "Full Auto" – can be selected.

h) The safety door incorporates both electric and mechanical safety devices to prevent mould closing when the door is open, ensuring safe and reliable operation.

i) This machine offers two blowing functions – straight cutting and oblique cutting.



Technical Parameters:



Basic Specifications
  • Applicable materials: PE, PP, PVC, PA…
  • Max product volume: 10 L
  • Number of heads: 1,2,3,4
  • Machine dimension (LxWxH): 4x2.3x2.5 meters
  • Machine weight: 8.2 tons
Mould Clamping System
  • Mould clamping force: 150 KN
  • Platen opening strokes: 220-620 mm
  • Plate stroke: 540 mm
  • Max mould sizes (WxH): 520x460 mm
Extrusion System
  • Screw diameter: 80 mm
  • Screw slenderness ratio: 24 L/D
  • Plasticizing ability (HDPE): 90 KG/H
  • Screw heating stage/zone: 4 zones
  • Screw heating power: 15.85 KW
  • Screw fan power: 0.28 KW
  • Extrusion motor power: 30 KW
Head
  • Head heating stage/zone: 3 zones
  • Head heating power: 10 KW
Energy Consumption
  • Total machine power: 80 KW
  • Oil motor power: 18.7 KW
  • Air pressure: 0.6-0.8 MPA
  • Compression air volume: 1.5 M3/min
  • Cooling water volume: 40 L/min



Applications:



1. Plastics Industry

  • Pipes, rods, and profiles: Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
  • Films and sheets: Used to make stretch film, packaging film, PET sheets, etc.
  • Cable sheathing: Extrusion of plastic sheaths for electrical wires and cables.
  • Woven bag fibers: For polypropylene fiber extrusion used in woven bags.

2. Rubber Industry

  • Tire treads, seals, and hoses: Continuous extrusion of rubber components.
  • Rubber insulation for cables: Provides enhanced thermal and electrical insulation.

3. Food Industry

  • Extruded snack production: Used in making puffed snacks like corn curls, rings, etc.
  • Noodles and pasta: Extrusion of rice noodles, spaghetti, and other starch-based products.

4. Metal Industry

  • Extrusion of aluminum, copper, and other metals: For manufacturing profiles, heat sinks, structural parts, etc.

5. Construction & Building Materials

  • Panels, flooring, roofing tiles, window frames: Production of plastic or composite building materials.

6. Chemical & Material Development

  • Functional material extrusion: For conductive plastics, flame-retardant materials, fiber-reinforced composites.
  • Laboratory-scale extruders: Used for research and development of new polymers.

7. Medical & Biotech Industry

  • Medical tubing: Production of IV tubes, catheters, and other medical-grade polymer tubes.
  • Controlled-release drug materials: Extrusion of polymers used in drug delivery systems.
