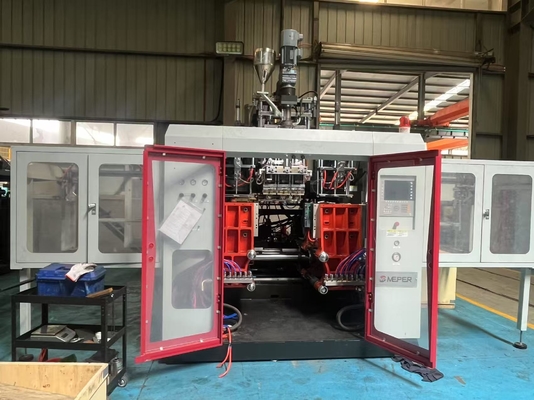

8.2 Ton Plastic Blow Molding Machine for PE PP PVC Hollow Products

The MP plastic blow molding machine is specifically designed for processing various plastic hollow products with high molecular weight. It is capable of producing hollow products ranging in size from 5 milliliters to 100 liters. These products encompass a wide range of items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. The machine is versatile in that it can work with a variety of materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring an optimal manufacturing process.

This machine offers a wide range of applications, from small containers to large hollow products, catering to different industrial needs effectively. The MP plastic blow molding machine stands out for its ability to deliver exceptional performance and precision in producing plastic products with complex shapes and sizes. Its versatility in material compatibility allows for flexibility in manufacturing various plastic items with different specifications and requirements.

Features:

a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.

b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.

c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.

d) Improved design of hydraulic oil loop. Power saving, rapid and stable.

e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.

f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.

g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.

h) Safety door adopts electric and mechanical safety devices( no mould closing happens when safety door opens) which make operation safe and reliable.

i) This machine has two blowing functions of straight cutting and oblique cutting

Technical Parameters:

Applicable materials: PE PP PVC PA…
Max product volume: 10 L
Number of heads: 1,2,3,4 SET
Machine dimension (LxWxH): 4x2.3x2.5 M
Machine weight: 8.2 TON

Mould clamping force: 150 KN
Platen opening strokes: 220-620 MM
Plate stroke: 540 MM
Max mould sizes (WxH): 520x460 MM

Screw diameter: 80 MM
Screw slenderness ratio (L/D): 24
Plasticizing ability (HDPE): 90 KG/H
Screw heating stage/zone: 4 Zone
Screw heating power: 15.85 KW
Screw fan power: 0.28 KW
Extrusion motor power: 30 KW

Head heating stage/zone: 3 Zone
Head heating power: 10 KW

Total machine power: 80 KW
Oil motor power: 18.7 KW
Air pressure: 0.6-0.8 MPA
Compression air volume: 1.5 M3/min
Cooling water volume: 40 L/min

Applications:

1. Plastics Industry

• Pipes, rods, and profiles: Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
• Films and sheets: Used to make stretch film, packaging film, PET sheets, etc.
• Cable sheathing: Extrusion of plastic sheaths for electrical wires and cables.
• Woven bag fibers: For polypropylene fiber extrusion used in woven bags.

2. Rubber Industry

• Tire treads, seals, and hoses: Continuous extrusion of rubber components.
• Rubber insulation for cables: Provides enhanced thermal and electrical insulation.

3. Food Industry

• Extruded snack production: Used in making puffed snacks like corn curls, rings, etc.
• Noodles and pasta: Extrusion of rice noodles, spaghetti, and other starch-based products.

4. Metal Industry

• Extrusion of aluminum, copper, and other metals: For manufacturing profiles, heat sinks, structural parts, etc.

5. Construction & Building Materials

• Panels, flooring, roofing tiles, window frames: Production of plastic or composite building materials.

6. Chemical & Material Development

• Functional material extrusion: For conductive plastics, flame-retardant materials, fiber-reinforced composites.
• Laboratory-scale extruders: Used for research and development of new polymers.

7. Medical & Biotech Industry

• Medical tubing: Production of IV tubes, catheters, and other medical-grade polymer tubes.
• Controlled-release drug materials: Extrusion of polymers used in drug delivery systems.
