Product Description:

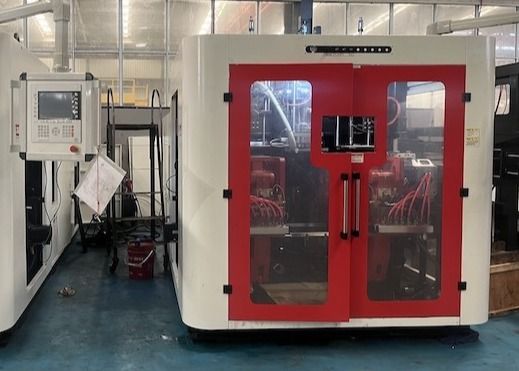

MP plastic blow molding machine is specialized in processing all kinds of plastic hollow products with high molecule. It is suitable for producing hollow products from 5 milliliters to 100 liters. These products include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs and auto parts, etc. It can not only blow different materials, such as, PE, PP, PVC, PA,PC, PS and EVA, but also provide perfect process.
Features:
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably, and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation, and data memory of 40 sets of moulds.
Technical Parameters:
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP |
| Max product volume | L | 10 |
| Number of heads | SET | 3 |
Machine dimension (LxWxH) | M | 3.5X5.6X2.65 |
| Machine weight | TON | 13 |
| |
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 240-630 |
| Plate stroke | MM | 600 |
| Max mould sizes(WxH) | MM | 580x450 |
| |
Extrusion system
| Screw diameter | MM | 90 |
| Screw slenderness ratio | L/D | 26 |
| Plasticizing ability (HDPE) | KG/H | 140 |
| Screw heating stage/zone | Zone | 4 |
| Screw heating power | KW | 20 |
| Screw fan power | KW | 0.56 |
| Extrusion motor power | KW | 45 |
| | |
Head | Head heating stage/zone | Zone | 15 |
| Head heating power | KW | 16.8 |
| |
Energy consumption | Total machine power | KW | 117 |
| Oil motor power | KW | 29 |
| Air pressure | MPA | 0.6-1 |
| Compression air volume | M3/min | 1.2 |
| Cooling water volume | L/min | 1000 |
Applications:
Extrusion molding machines play a significant role in manufacturing by producing continuous profiles with a fixed cross-section. They are widely utilized in various industries for different applications:
1. Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
4. Pharmaceutical Industry
- Drug Delivery Systems – Extruded tablets and biodegradable implants.
- Medical Tubing – Catheters and IV tubes.
Advantages of Extrusion Molding
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
Would you like details on a specific type of extrusion application?
Support and Services:
The Product Technical Support and Services for the Extrusion Molding Machine product include:
- Installation guidance and setup assistance
- Training programs for operators and maintenance personnel
- Troubleshooting support for technical issues
- Maintenance services and preventive maintenance schedules
- Spare parts availability and ordering assistance
