Product Description:
MP plastic blow molding machine is specialized in processing all kinds of plastic hollow products with high molecule. It is suitable for producing hollow products from 5 milliliters to 100 liters.
These products include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs and auto parts, etc. It can not only blow different materials, such as, PE, PP, PVC, PA,PC, PS and EVA, but also provide perfect process.
Features:
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
``` ```html
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
j) Oblique blowing function.
Technical Parameters:
parameters
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP |
| Max product volume | L | 10 |
| Number of heads | SET | 3 |
Machine dimension (LxWxH) | M | 3.5X5.6X2.65 |
| Machine weight | TON | 13 |
| |
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 240-630 |
| Plate stroke | MM | 600 |
| Max mould sizes(WxH) | MM | 580x450 |
| |
Extrusion system
| Screw diameter | MM | 90 |
| Screw slenderness ratio | L/D | 26 |
| Plasticizing ability (HDPE) | KG/H | 140 |
| Screw heating stage/zone | Zone | 4 |
| Screw heating power | KW | 20 |
| Screw fan power | KW | 0.56 |
| Extrusion motor power | KW | 45 |
| | |
Head | Head heating stage/zone | Zone | 15 |
| Head heating power | KW | 16.8 |
| |
Energy consumption | Total machine power | KW | 117 |
| Oil motor power | KW | 29 |
| Air pressure | MPA | 0.6-1 |
| Compression air volume | M3/min | 1.2 |
| Cooling water volume | L/min | 1000 |
Applications:

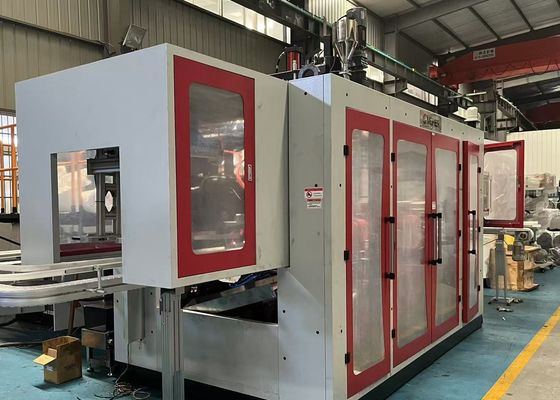

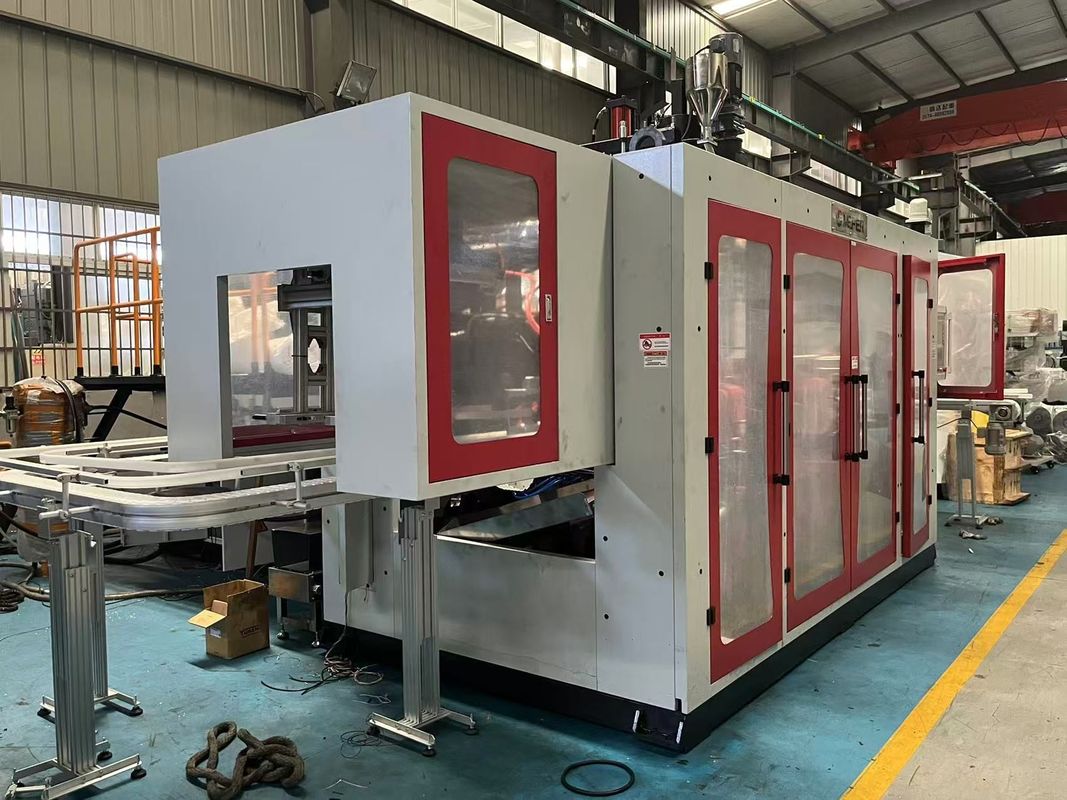

MEPER Extrusion Molding Machine 80FD is a top-of-the-line Molding Extruder Equipment designed for various applications across different industries. With its superior quality and performance, this machine is suitable for a wide range of Product Application Occasions and Scenarios.
Manufactured in China, the MEPER 80FD Extrusion Molding Machine is CE/ISO9001:2008 certified, ensuring high standards of quality and safety. Its minimum order quantity is 1 set, and the price is negotiable, making it accessible for both small and large-scale operations.
With standard packaging and a delivery time of 25-35 work days, customers can expect their orders to arrive promptly. Payment terms include L/C and T/T, providing flexibility and convenience. The machine has a supply ability of 100 sets per month, ensuring a steady availability for continuous production needs.
The MEPER 80FD features a plate stroke of 600mm, allowing for efficient and precise molding processes. Its maximum product volume of 10L caters to a diverse range of product sizes. Weighing 13 tons, the machine is sturdy and durable, guaranteeing long-term performance.
Designed to work with PE and PP materials, the Extrusion Molding Machine is versatile and adaptable to different material requirements. The platen opening strokes ranging from 240-630mm offer flexibility in molding various shapes and sizes.
Support and Services:
The Product Technical Support and Services for the Extrusion Molding Machine include:
- Onsite installation and setup assistance
- Training programs for operators and maintenance staff
- Troubleshooting guidance and technical assistance
- Regular maintenance and servicing packages
- Access to online resources and documentation
- Upgrades and customization options
