Product Description:
MP Plastic Blow Molding Machine is designed for processing various plastic hollow products made of high-molecular materials. This machine is capable of manufacturing hollow products ranging from 5 milliliters to 100 liters. The products produced by this machine encompass a wide range, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
Moreover, the MP plastic blow molding machine is versatile in that it can blow a variety of materials, such as PE, PP, PVC, PA, PC, PS, and EVA, ensuring a perfect manufacturing process for different applications.
Features:
a)
The extruding device utilizes a variable frequency motor to accommodate the changing rotation requirements of the screw during the blowing process. It enables the use of a screw with a high slenderness ratio to process various materials efficiently, with excellent plasticizing ability, high production capacity, and low energy consumption. The barrel is equipped with a resistance heater that is computer-controlled, ensuring quick, stable, and uniform heating.
b)
By incorporating different heads in the combined extrusion system between two extrusion machines, products with a visible strip line or double layers can be produced.
c)
The mould clamping device features a toggle-type mechanism and linear guider. It is designed with a double station, allowing the mould platen to move faster and more stably.
d)
An improved design of the hydraulic oil loop results in power savings, quick responses, and stable operation.
e)
The hydraulic elements are easily installed and maintained, with a removable and mobile oil tank provided for convenience.
f)
The entire machine is computer-controlled, with the hydraulic system employing double proportional control. It includes features such as automatic fault alarms, reliable operation, high automation, and the ability to store data on 40 sets of moulds.
g)
There are three operation modes to choose from: "Manual", "Semi-Auto", and "Full Auto".
h)
The safety door incorporates both electric and mechanical safety devices to prevent mould closing when the door is opened, ensuring safe and reliable operation.
i)
This machine offers two blowing functions: straight cutting and oblique cutting.
j)
Oblique blowing function
Technical Parameters:
parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:

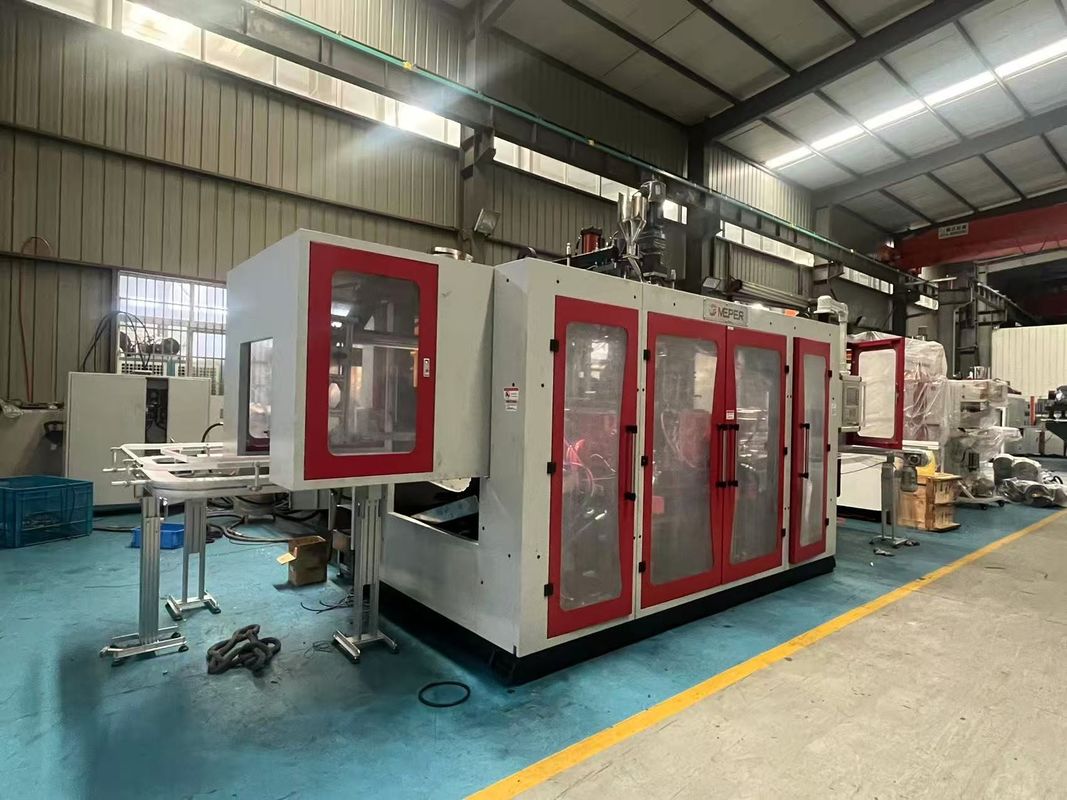

MEPER 80FD Extrusion Molding Machine is a versatile and efficient machine suitable for a wide range of product application occasions and scenarios. With its advanced features and specifications, it is a top choice for various industries requiring high-quality extrusion molding processes.
The machine, originating from China, is CE/ISO9001:2008 certified, ensuring compliance with international quality standards. It boasts a minimum order quantity of 1 set and a negotiable price, making it accessible for both small and large-scale production needs. The standard packaging and delivery time of 25-35 work days further enhance its convenience for users.
With a platen opening strokes range of 240-630MM, the MEPER 80FD is capable of producing products with a maximum volume of 10L. Its three sets of heads enable efficient and precise molding operations, while its dimensions of 3.5X5.6X2.65M provide a compact footprint suitable for various factory layouts.
The machine is specifically designed for working with materials such as PE and PP, making it ideal for industries requiring molding processes for these materials. Its supply ability of 100 sets per month ensures a consistent availability for high-demand production environments.
Whether for producing auto deflashing blow moulding machine components, fully automatic blow moulding machine parts, or other products requiring precision molding, the MEPER 80FD Extrusion Molding Machine excels in delivering superior performance and reliability. Its payment terms of L/C and T/T offer flexibility for different purchasing preferences, further enhancing its appeal to a wide range of customers.
Support and Services:
The Product Technical Support and Services for the Extrusion Molding Machine include:
- Troubleshooting assistance for machine operation and performance issues
- Guidance on maintenance and regular servicing of the machine to ensure optimal functioning
- Training programs for operators to enhance their skills and knowledge in operating the machine efficiently
- Access to software updates and technical documentation to keep the machine up-to-date
