Product Description:

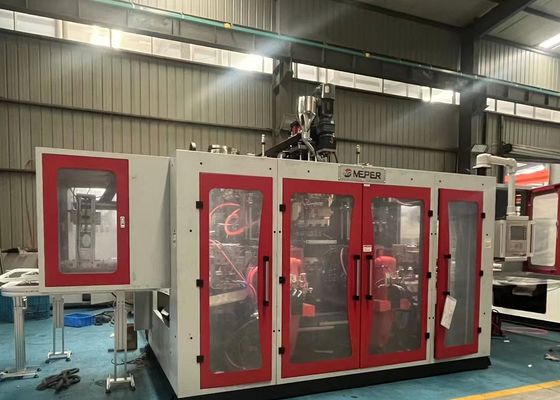

The MP plastic blow molding machine is designed for the processing of various types of plastic hollow products with high molecular weight. It is capable of producing hollow items ranging from 5 milliliters to 100 liters. This machine is particularly suitable for manufacturing products such as bottles, containers, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive parts. It has the capability to handle a variety of materials including PE, PP, PVC, PA, PC, PS, and EVA, while ensuring optimal production processes.
``` ```html
The versatility of the MP plastic blow molding machine allows for the creation of a wide range of plastic hollow products to meet different industry needs. Whether it is for small-scale or large-scale production, this machine offers flexibility in producing various sizes and types of products with precision. Its ability to work with different materials ensures that the end products meet quality standards and specific requirements.
Features:
a) The extruding device is equipped with a variable frequency motor that can meet the rotational requirements of the screw during the blowing process. A screw with a high slenderness ratio can be used to handle various materials, offering strong plasticizing capabilities, high production efficiency, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring fast, stable, and even heating.
b) With different heads installed in a combined extrusion system between two machines, products can be blown with either a single or double-layer view strip lining.
c) The mould clamping device utilizes a toggle-type mechanism and linear guider. It is a double-station system, allowing for faster and more stable movement of the mould platen.
d) An improved design of the hydraulic oil loop results in power efficiency, rapid operation, and stable performance.
e) Hydraulic element installation and maintenance are made convenient with a removable and mobile oil tank provided.
f) The entire machine is computer-controlled, featuring a hydraulic system with double proportional control. It includes automatic fault alarms, ensuring reliable operation, high automation, and the ability to store data for up to 40 mould sets.
g) Three operation modes, "Manual", "Semi Auto", and "Full Auto", are available for selection.
h) The safety door incorporates both electric and mechanical safety devices to prevent mould closing in case the door is open, enhancing operational safety and reliability.
i) This machine offers two blowing functions: straight cutting and oblique cutting.
j) oblique blowing function
Technical Parameters:
parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:
MEPER 80FD Extrusion Molding Machine is a versatile and efficient piece of equipment suitable for a wide range of product application occasions and scenarios. Designed and manufactured in China, this machine carries the prestigious CE/ISO9001:2008 certification, ensuring quality and reliability.
With a minimum order quantity of just 1 set and a negotiable price, the MEPER 80FD is accessible to businesses of all sizes. The machine comes with standard packaging for convenience and has a delivery time of 25-35 work days. Payment terms are flexible, accepting both L/C and T/T.
The supply ability of 100 sets per month ensures that businesses can rely on the MEPER 80FD to meet their production needs consistently. The platen opening strokes range from 240-630mm, providing flexibility in the size of products that can be manufactured.
Weighing 13 tons, this extrusion molding machine is robust and stable during operation. The 80FD model features 3 sets of heads and a plate stroke of 600mm, enabling efficient production processes.
One of the key features of the MEPER 80FD is its capability to create products with a maximum volume of 10L. This makes it ideal for producing a wide range of items, from containers to automotive components.
Whether you are in need of an auto deflashing blow molding machine or require a fully automatic blow molding machine, the MEPER 80FD is equipped to handle various manufacturing requirements. Its advanced technology and precise engineering make it a valuable asset for businesses looking to streamline their production processes.
Support and Services:
Our company provides comprehensive Product Technical Support and Services for our Extrusion Molding Machine product. Our team of experts is dedicated to ensuring that your machine operates at peak performance levels. Our services include troubleshooting, maintenance guidance, and repair assistance to address any issues that may arise with the machine.
