Product Description:
MP plastic blow molding machine is designed to process a variety of plastic hollow products made from high-molecular materials. This machine is capable of producing hollow items ranging from 5 milliliters to 100 liters. The range of products that can be created using this machine is extensive, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, as well as automotive parts.
The machine is versatile in its ability to work with various materials such as PE , PP , PVC , PA , PC , PS , and EVA . With its diverse material compatibility, the MP plastic blow molding machine guarantees a flawless manufacturing process.
Features:
The extruding device features a variable frequency motor that can meet the rotational requirements of the screw during the blowing process. A screw with a high slenderness ratio can be employed to process various materials, showcasing strong plasticizing ability, high production efficiency, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.
By utilizing different heads in a combined extrusion system positioned between two extrusion machines, products with a visible strip line or double layers can be blown.
The mould clamping device incorporates a toggle-type mechanism and linear guider. Operating with double stations, it enables the mould platen to move quickly and steadily.
An improved design of the hydraulic oil loop results in power savings, rapid performance, and stability.
The installation and maintenance of hydraulic elements are hassle-free, with a removable and mobile oil tank included for convenience.
Controlled entirely by a computer, this machine features a hydraulic system with double proportional control. It boasts fault automatic alarm, reliable operation, high automation, and data storage for up to 40 sets of moulds.
Three operation modes - "Manual," "Semi Auto," and "Full Auto" - are available for selection.
The safety door is equipped with electric and mechanical safety features to prevent mould closure when the door is open, ensuring secure and reliable operation.
This machine offers two blowing functions: straight cutting and oblique cutting, including an oblique blowing function.
Technical Parameters:
parameters
parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:

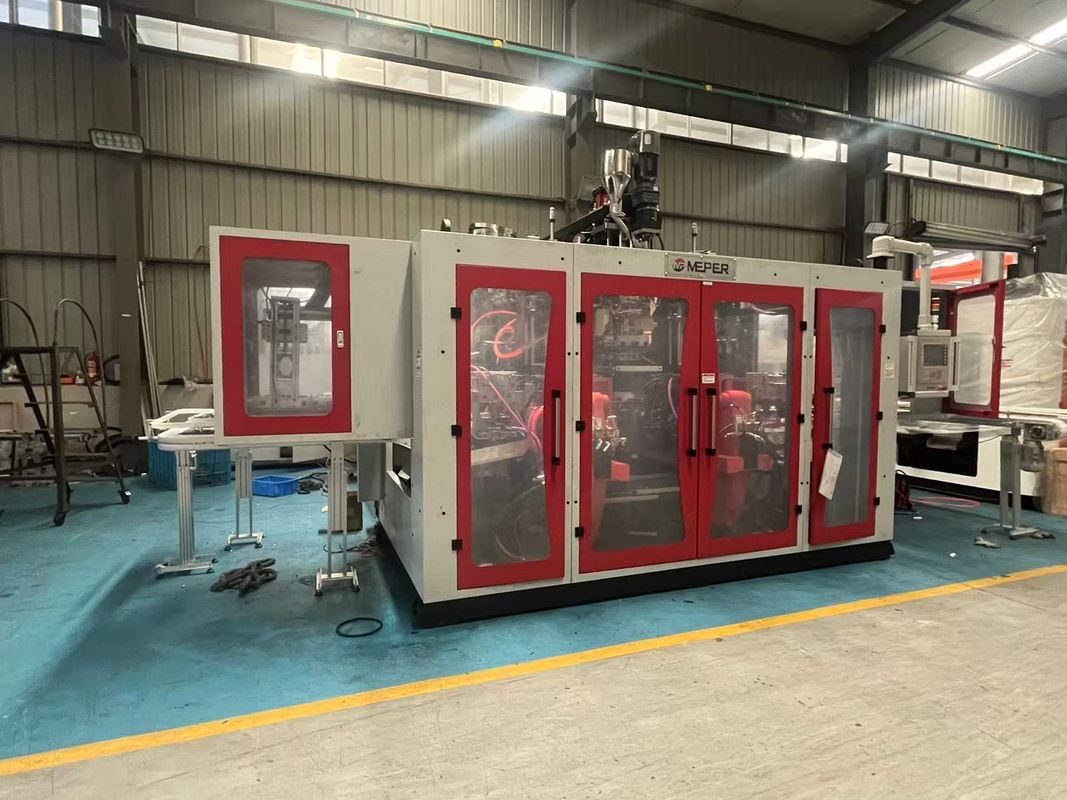

MEPER 80FD Extrusion Molding Machine is a versatile and reliable piece of equipment suitable for a variety of product application occasions and scenarios. With its origin in China, this machine has gained CE/ISO9001:2008 certification, ensuring high quality and compliance with international standards.
Whether you are in the packaging industry or involved in manufacturing plastic containers, the MEPER 80FD is an ideal choice. Its minimum order quantity of 1 set and negotiable price make it accessible for small to large-scale businesses.
Utilizing standard packaging for delivery, this machine has a delivery time of 25-35 work days and accepts payment terms of L/C and T/T. With a supply ability of 100 sets per month, you can rely on timely availability of this equipment.
The MEPER 80FD Extrusion Molding Machine is designed to handle various materials, with PE and PP being among the applicable options. Its platen opening strokes range from 240-630mm, providing flexibility for different product sizes.
Equipped with 3 sets of heads, this machine is capable of producing products with a maximum volume of 10L. The mould clamping force of 150KN ensures secure and precise molding operations.
Whether you are looking to produce containers, bottles, or other plastic products, the MEPER 80FD is a reliable choice. Its efficiency and performance make it suitable for a 2 cavity blow moulding machine, making it a valuable asset for molding extruder equipment.
Support and Services:
Our Product Technical Support and Services for the Extrusion Molding Machine include:
- Installation assistance
- Training for operators and maintenance personnel
- Troubleshooting and diagnostics support
- Regular maintenance and calibration services
- Spare parts availability and replacement
- Upgrades and customization options
- Technical documentation and resources
