Product Description:

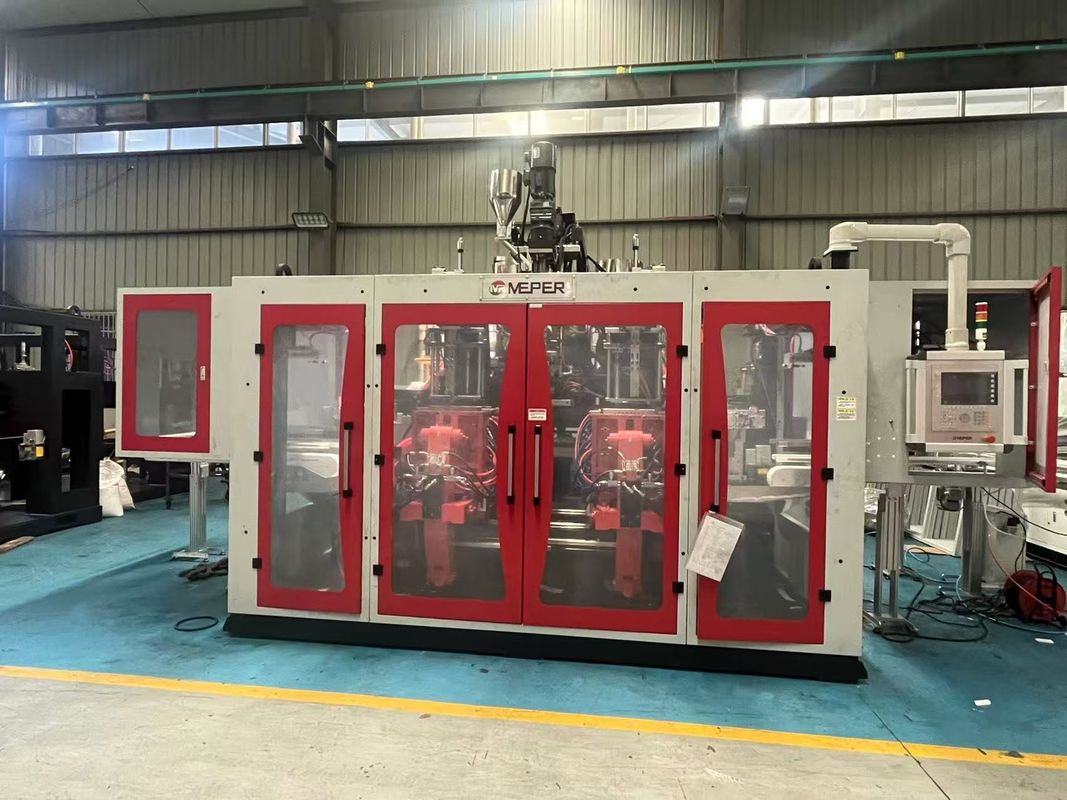

MP Plastic Blow Molding Machine is designed to process a wide range of plastic hollow products with high molecular weight. This machine is perfect for creating hollow items from 5 milliliters up to 100 liters. The products that can be manufactured using this equipment encompass an array of items such as bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive components, among others.
The versatility of the machine allows it to perform blow molding with various materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring a flawless production process and high-quality output.
Features:
a) The extruding device is equipped with a variable frequency motor to meet the rotation change requirements of the screw during the blowing process. A screw with a high slenderness ratio can process various materials with strong plasticizing ability, high production capacity, and low energy consumption. The barrel features a resistance heater controlled by a computer for rapid, stable, and uniform heating.
b) Through the installation of different heads in a combined extrusion system between two extrusion machines, products with a striped appearance or double layers can be blown.
c) The mould clamping device utilizes a toggle type mechanism and linear guide. With a double station, the mould platen moves quickly and steadily for efficient operation.
d) An improved design of the hydraulic oil loop ensures power saving, rapid operation, and stability.
e) The installation and maintenance of hydraulic elements are convenient, with a removable and mobile oil tank provided.
f) The entire machine is computer-controlled, with the hydraulic system featuring double proportional control. It includes fault automatic alarm, ensuring reliable operation, high automation, and data storage capabilities for up to 40 sets of moulds.
g) Three operation modes - "Manual", "Semi Auto", "Full Auto" - are available for selection.
h) The safety door is equipped with both electric and mechanical safety devices to prevent mould closing in case the safety door opens, ensuring safe and reliable operation.
i) This machine offers two blowing functions - straight cutting and oblique cutting.
j) Oblique blowing function.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion Molding Applications
Extrusion molding machines play a crucial role in manufacturing by producing continuous profiles with a fixed cross-section. They find extensive use in various industries for creating a wide range of products:
1. Plastic Industry
- Pipes & Tubes – Examples include PVC, HDPE, and PP pipes used in plumbing, drainage, and electrical conduits.
- Sheets & Films – These encompass packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
- Tire Manufacturing – Including rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
- Extruded Snacks – Such as puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
Advantages of Extrusion Molding
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
If you would like more information on a specific type of extrusion application, please feel free to ask!
Support and Services:
Our Product Technical Support team is dedicated to assisting you with any issues or questions you may have regarding your Extrusion Molding Machine. We offer comprehensive services to ensure that your machine operates efficiently and meets your production needs.
Our services include troubleshooting assistance, maintenance support, and guidance on optimizing the performance of your Extrusion Molding Machine. Our team of experts is available to provide technical guidance and recommendations to help you maximize the productivity of your machine.
Additionally, we offer training programs to help you and your team develop the necessary skills and knowledge to operate the Extrusion Molding Machine effectively. Our goal is to support you every step of the way and ensure that you get the most out of your investment.
